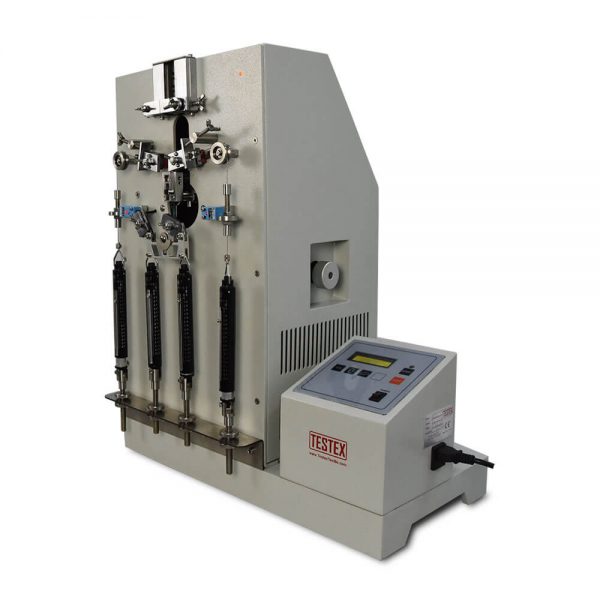

Testex TF150 Zipper Reciprocation Tester

Power: 220/110V 50/60 Hz 4A

Weight: 77 kg

Dimensions: 660 x 450 x 860 mm (L x W x H)

Speed: 30c/min

Lateral force: 0-10 Kg .

Longitudinal force: 0-5 Kg

Counter: 1-999,999times, adjustable

Standards: BS 3084, CNS -1083, QB/T 2171

Zipper Reciprocation Tester, to determine the resistance to reciprocation of zipper (slide fastener). The test specimen is subject to a specified number of cyclic operations whilst under lateral and longitudinal tension.

Zipper Tester catches the head of zipper to do reciprocating movement in a constant speed for 30 times per minute. Integral counter is set to stop the drive when a pre-selected count has been reached.

Equipped with a sensor so that the machine will stop automatically before the zipper is broke. Adjustable stoke 40~100mm is offered as request.
