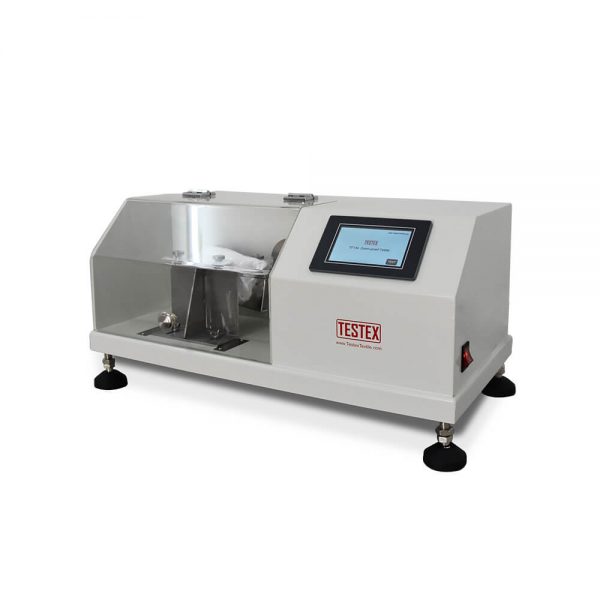

Testex TF134 Down-proof Tester

Power: 220/110V 50/60 Hz

Weight: 32 kg

Dimensions: 690 x 430 x 460 mm (L x W x H)Touch panel

Fixture space: 44 ± 1 mm

Eccentricity: 25 ± 0.5 mm

Speed: 0~160 r/min (Adjustable)

Sample size: 140 x 420 mm

Cushion size: 120 x 170 mm

Test times: 2700, settable

Counter: 0 to 99,999 times

LED display

Standards: BS 12132, EN 12132-1, GB/T 12705.1

Down-proof Tester, is to determine the down-proof capability of fabrics used for down-garment, quilt, etc, which are filled with down, feather and fibers. Take an agreed size specimen from the fabric to be tested to sew a pocket at specified size, fill with a certain weight of down, feathers or a mixture of both, then sew the fabric up to be a testing bag. Clamp the both sides of the bag in the holder. Determine the down-proof ability of the fabric by calculating the number of down and feathers
