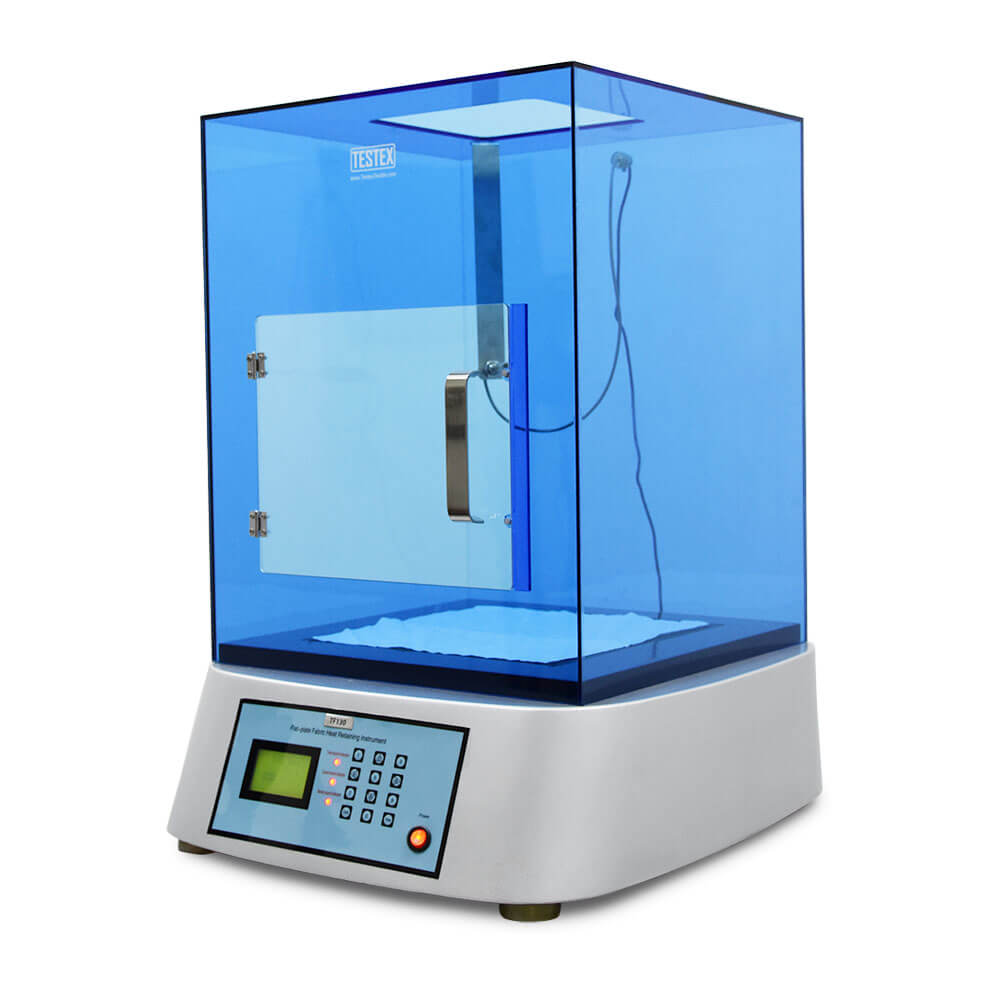

Testex TF130 Thermal Resistance Tester

Power: 220V 50 Hz

Weight: 70 kg

Dimensions: 790 x 660 x 960 mm (L x W x H)

Temperature range: 20-50℃

Temperature accuracy: ±0.5℃

Resolution of temperature: 0.1℃

Range of Pre-heating Time: 0 ~ 99.9 min

Cycles: 1-9 times

Sample size: 300 x 300 mm

Testing plate size: 250 x 250 mm

Standards: ASTM D1518, JIS L1096, ISO 11092, GB/T 11048, FZ/T 73016

Thermal Resistance Tester, is to determine the thermal resistance, thermal conductivity, and CLO value of various fabrics, quilting products, and other heat insulation materials.

Microcomputer controlled, data processors and quality temperature sensors are used, ensuring high test speed and precise test result. All performances of the sample (Include Insulation rate, heat transfer coefficient) can be directly calculated. Test data and result are displayed on the large LCD display, and can be stored or printed out
