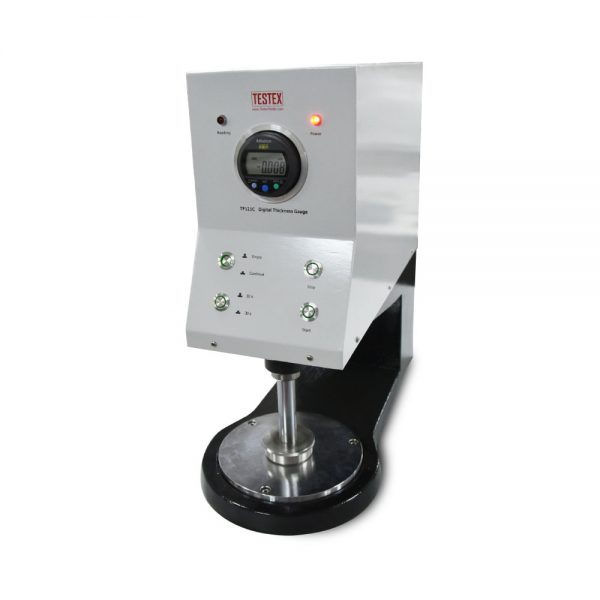

Testex TF121C Auto Thickness Gauge

Power: 220V 50Hz 40W

Weight: 51 kg

Dimensions: 590 x 530 x 430 mm (L x W x H)

Range of thickness: 0.01~25mm

Measuring accuracy: 0.01mm

Lowering speed of pressing-foot: 1.72 mm/s

Area of pressing foot: 100mm2, 2000mm2, 2500mm2, 10000mm2

Load Weight: 10cN × 2, 50cN × 2, 100cN, 400cN, 1000cN × 2

Pressing duration: 10s, 30s

Standards: ISO5084, ISO 9073, ISO9863

Auto Thickness Gauge, is to determine the thickness of various woven and knitted fabrics under a certain pressure. Automatic lifting up and down is to avoid manual operation error; each test should be pre-set pressing time for 10s or 30s
