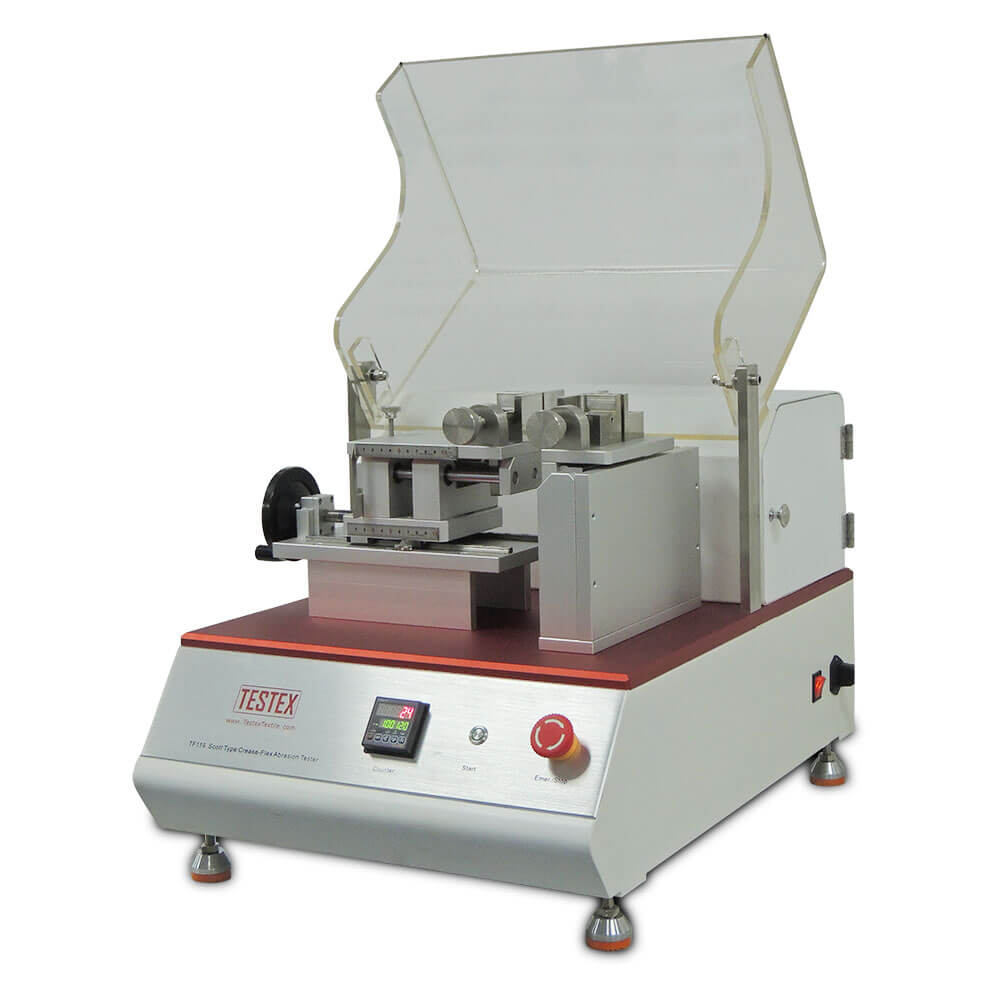

Testex TF119 Scott Type Crease-Flex Abrasion Tester

Power: 220V 50/60Hz

Weight: 84 kg

Dimensions: 790 x 580 x 660 mm (L x W x H)

Specimen: 25 x 120 mm

Holders: 0 ~ 50 mm (standard: 20mm)

Pressure load: 0.5 ~ 5kgf

Friction distance: 0 ~ 60mm (standard: 40mm)

Friction speed: 120+/-2cpm

Standards: JIS-K6404-6, L1096, JASO

Scott Type Crease-Flex Abrasion Tester, is to determine the crease-flex abrasion resistance of leather, rubber, cloth, etc. The force loaded on specimen, distance between grips and the two-way distance can be adjustable. And the force loaded on specimen is of spring type.

Clamp the two specimens in cross shape. Based on the various materials of the specimen, apply the appropriate load. During test, the two specimens are creased and flexed reciprocally. After reaching the specified number of abrasions, take off test samples to check if they are cracked, wrinkled or discolored.
