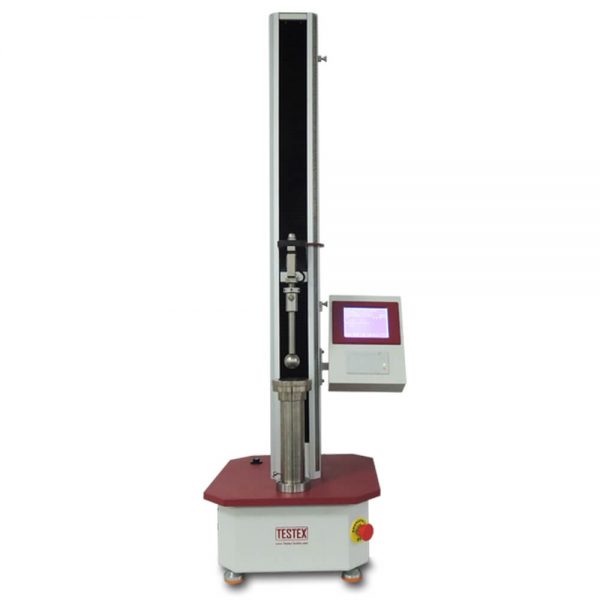

Testex TF003 Ball-bursting Strength Tester

Power: 220/110V 50/60 Hz

Weight: 100 kg

Dimensions: 680 x 570 x 1650 mm (L x W x H)

Test method: CRE principle, , Micro-computer controls quality motor and screws

LCD displays displacement, force, speed, and other information

Test range: 2500 N

Speed range: 5 - 500 mm/min adjustable

Bursting balls: SΦ20 mm (or SΦ25 mm, SΦ38 mm)

Standards: ISO 9073-5, ASTM D3787, ASTM D6796, FZ/T01030, GB/T19976, FZ/T 6001

Ball-bursting Strength Tester, is used for testing the ball-bursting strength and expansion rate of cotton fabrics, elastic fabrics, sock and glove products.
