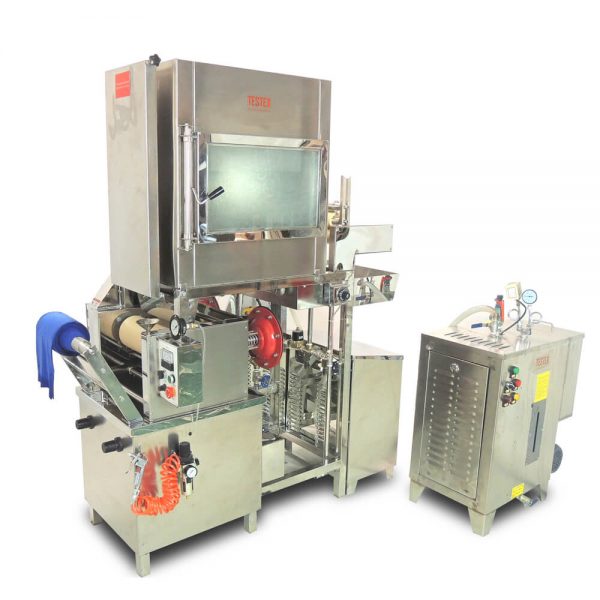

Testex TD630 Lab Pad Steam Range

Power: 380V

Weight: 350 kg

Dimensions: 1700 x 1000 x 1980 mm (L x W x H)

Horizontal padder:

Roller size: 125mm x 300mm

Made of NBR rubber with 65° ± 3 shore hardness

Pressure: 1 ~ 0.5mPa, 2 pressure gauges

Chemical trough capacity: 500ml

Steamer:

Steam Max: 0.5mPa

Steaming Max: 6 m, speed control: 20~ 120 s adjustable inside the steaming chamber

Lab Pad Steam Range, a combination of padding mangle and steamer, is used to carry out all pad steam processes with saturated steam, offers the shortest time 4 seconds between padder and steaming chamber, to avoid the disturbances and performs very good stability & repeatability on sulphur & vat dyestuff

Pad steam range is consists of padding mangle with two padding rollers, and a steaming chamber with fabric holding capacity of 6m, temperature range 98 ~ 100℃ for a dwell time 20 ~ 120 seconds.
