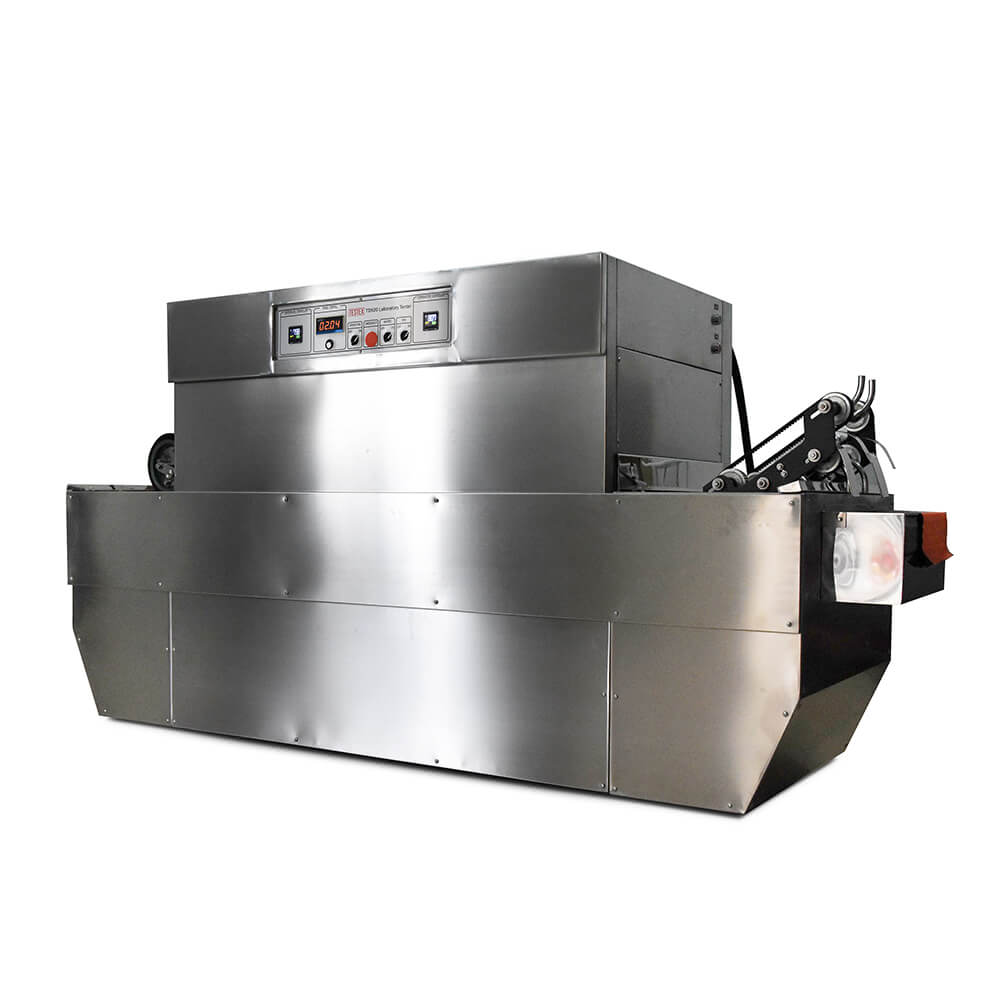

Testex TD620 Laboratory Tenter

Power: 380V 50Hz 19kW

Weight: 600 kg

Dimensions: 2620 x 990 x 1580 mm (L x W x H)

Batch working with pin frame (length and width are adjustable): 160 ~ 360 mm

The electric heating power: 19kw

Temperature: 20 ~ 250°C

Moving speed: 0 ~ 6 m/min

Laboratory Tenter, a flexible continuous pin chain type hot air dryer, is widely used for all where a certain sample length is required in a continuous process. This mini-tenter is designed to simulate the Features of production scale tenter.

3 sets of air circulating fan ensures high drying and thermosoling performance

Equipped with cloth pressing wheel in the feeding side, and pin-up device to lead fabric to reserve box at the end
