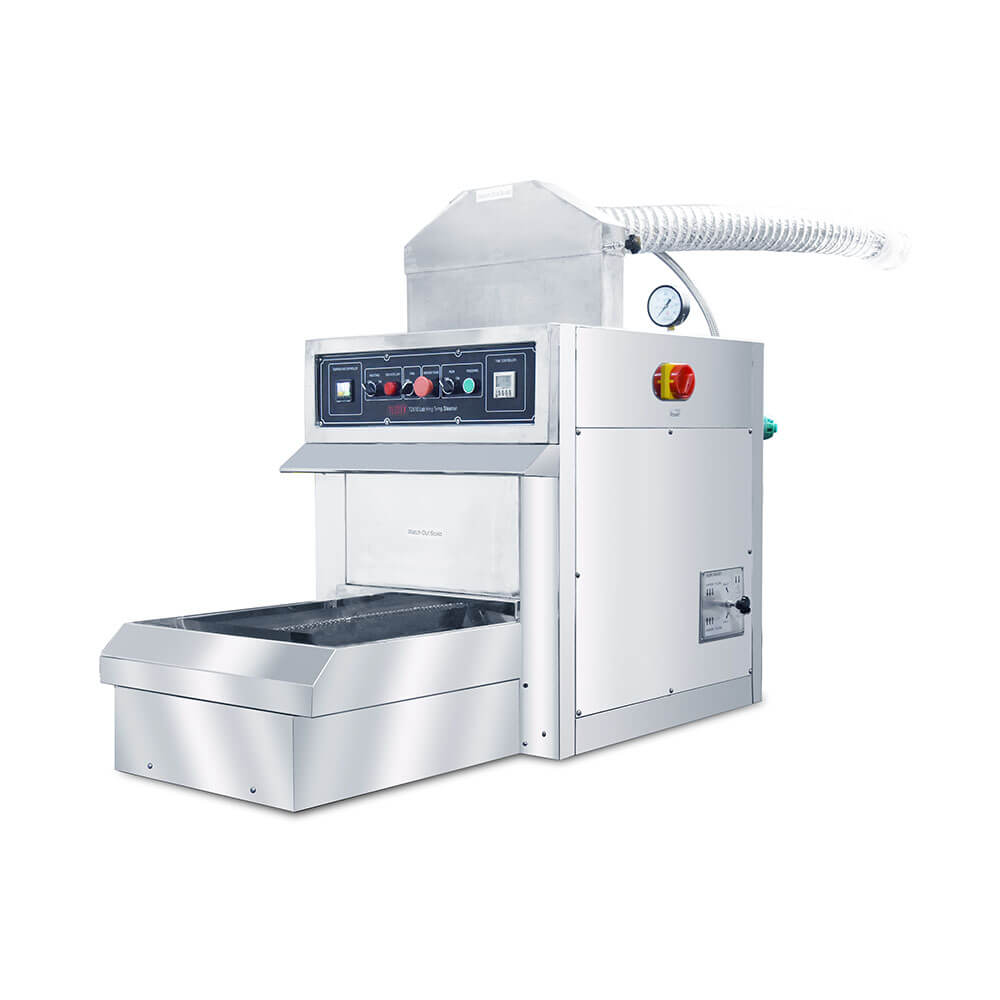

Testex TD610 Lab High Temperature Steamer

Power: 380V 50/60Hz 6kW

Weight: 210 kg

Dimensions: 1650 x 780 x 1340 mm (L x W x H)

Temperature range for Electric heating for drying, curing: 20 ℃ ~ 220℃

Steaming with saturated steam: 103 ℃

High Temperature Steaming: 130 ~ 180 ℃

Working time: 1 ~ 999 s, automatically moving in & out, and alarms

Special design of retractable pin frame, the tension of test fabric samples can be adjusted in both warp and weft direction, the maximum stretch rate are up to 30%

Max sample size: 360 x 420 mm

Suitable for the discontinuous operation in conjunction with TD122 Lab Padder

 Lab High Temperature Steamer, the same looking as the floor type dryer, but equipped with steam generator, thus this steamer can be widely used for drying, curing and steaming, for the use of a wide range of the dyestuff and chemical industry, finishing plants, research institutes and general textile industry.
