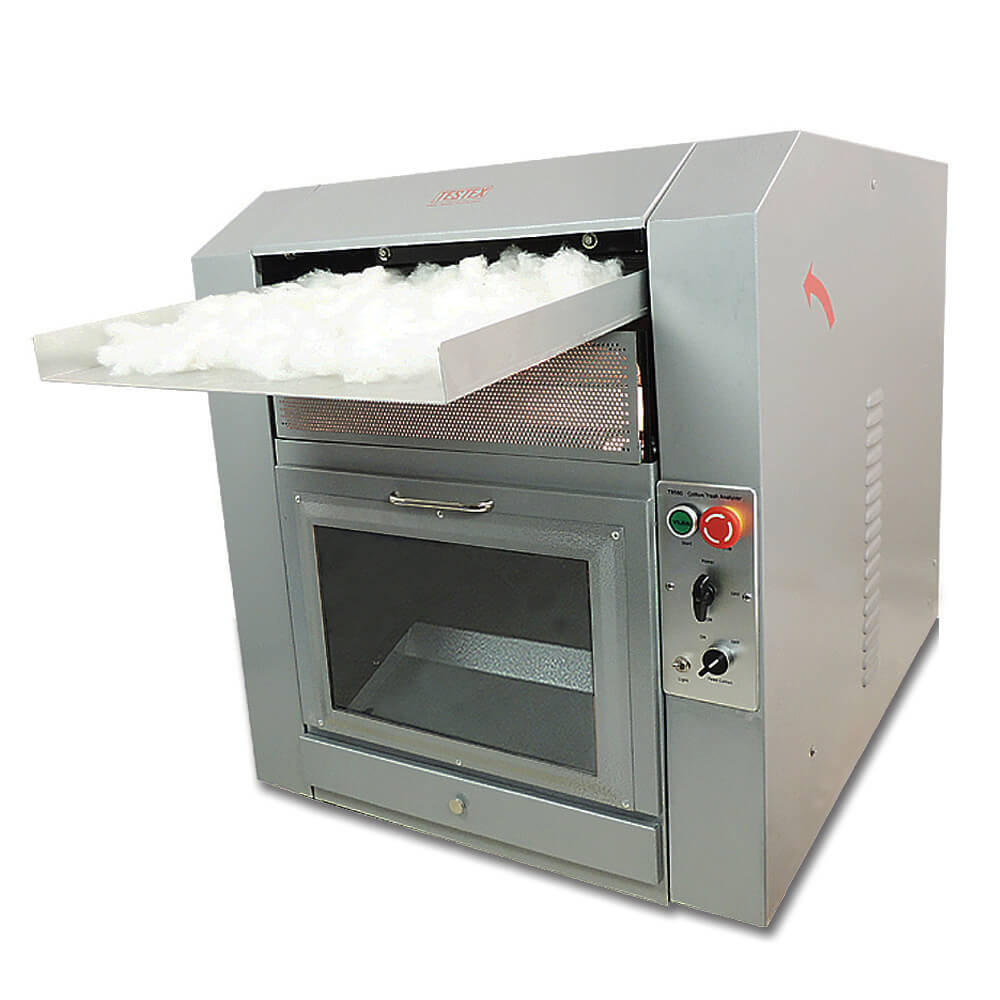

Testex TB500 Cotton Trash Analyzer

Power: 380V 50/60Hz 0.8 Kw

Weight: 280 kg

Dimensions: 1120 x 840 x 1180 mm (L x W x H)

Working width: 490mm

Size of feeding roller: Dia.57.15

Size of Licker-in: Dia. 238mm

Rotation speed: 900 r/min

Standards: ITMF

Cotton Trash Analyzer, is to analyze lint, trash and dust content within a sample of raw cotton fiber up to 100 grams. Also it is used to determine non-fiber content of synthetic fibers and to open and clean fibers for further testing. The analyzer uses the carding principle with air separation of lint and non-lint content.
