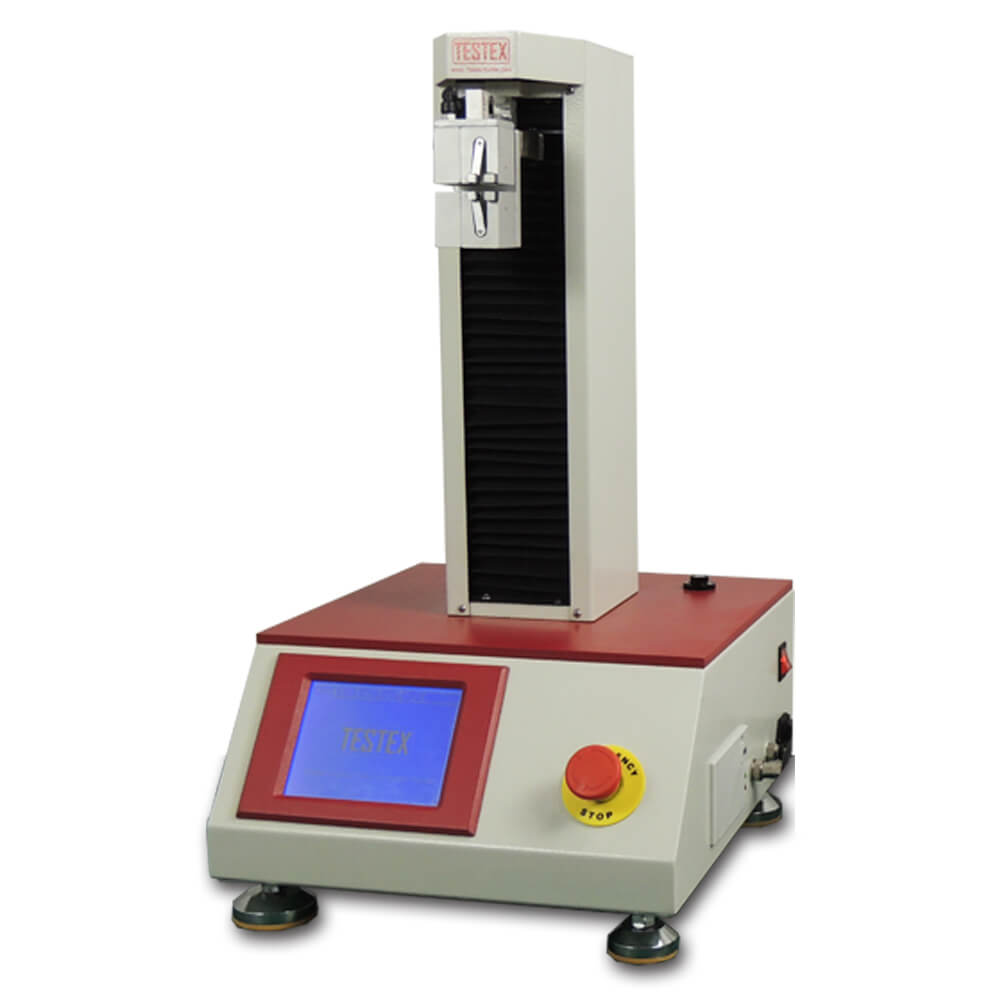

Testex TB400C Single Fiber Strength Tester

Power: 220/110V 50/60 Hz

Weight: 75 kg

Dimensions: 400 x 320 x 550 mm (L x W x H)

The maximum load test: 1000cN

Load measuring accuracy: 0.02% (F.S)

Resolution: 0.01Cn

Max Elongation range: ≤200 mm

Elongation measuring accuracy: 0.01 mm

Zero drift: ≤0.2% (F.S)

The falling speed of lower clamping device: 2 ~ 200 mm/min (adjustable) The accuracy of falling speed: ≤1%

The rising speed of lower clamping device: 100 mm/min

Standards: GB/T9997, GB/T14337, ISO5079, ISO11566

Features

Real-time display testing result and settings

Force unit: N, kgf, lb,in, cN

High accuracy and fast response

Easy to load and unload specimen
