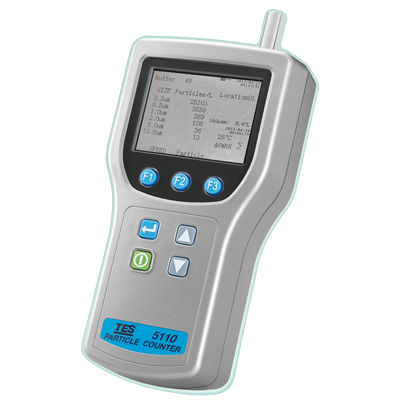

TES TES-5110 Particle Counter

Manufacturer: TES
Model: TES-5110
Original: Taiwan

Applications:
Monitoring clean rooms.
Indoor air quality investigations.
Monitoring growing rooms.
Testing filter seals.
Locating particle contamination sources.
Monitoring particle size distributions.
Sample flow rate: 2.83L/min
Max. Particle concentration: 70,000
particles/L (coincidence loss max. 5%)
Buffer function: Store and recall values
for up to 500 measurements
PC interface: USB interface
SD storage device

Six particle size channels : 0.3μm, 0.5μm, 1.0μm, 2.0μm, 5.0μm, 10μm
Integrated temperature / humidity sensor (no need for external add-on).
Flow rate 2.83 L/minute (0.1 CF / minute).
Rechargeable battery provides up to 4 hours of continuous operation (charge time 2.5 hours).
Buffer function allows storing and redisplay of up to 500 measurement data sets.
SD storage device.
