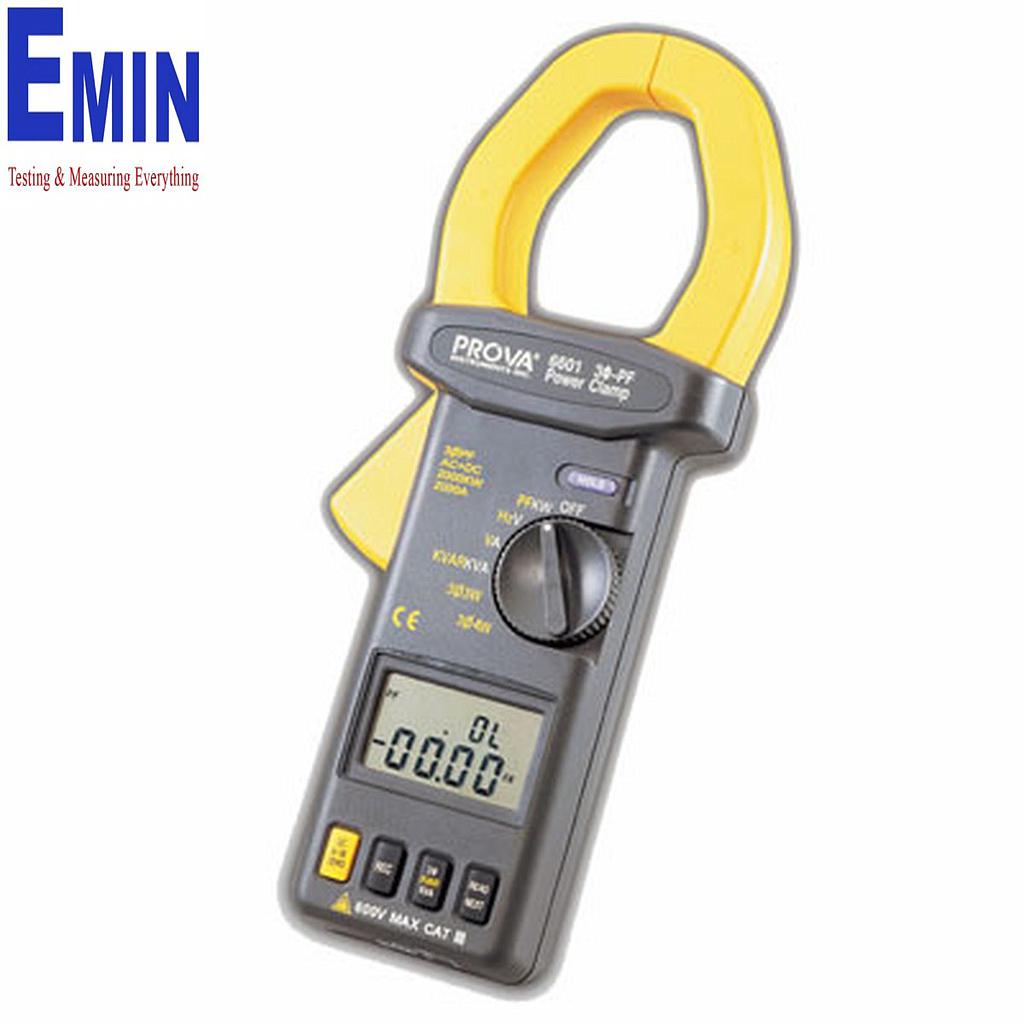

TES Prova 6601 3 Phase PF Power Clamp

Manufacturer: TES
Model: Prova 6601
Original: Taiwan

-PF (3ϕ4W, 3ϕ3W,1ϕ 2W)
-AC+DC 2000KW (3 ϕ ), AC+DC 1200KW (1 ϕ )
-Dual Display W+PF,KVA +KVAR, A+V,V+Hz
-AC+DC 600V, 2000A
-AC/DC Auto Detection
-Memory of 4 records
-Auto range
-AC + DC True Power: (±2%rdg ±0.05KW) 0~99.99/100~999.9/1000~1,200KW
-AC + DC Voltage:(TRMS) 0~200V/200~500V/500~600V
-AC+DC Current:(TRMS) (±1.5%rdg ±5dgts) 0~200/200~500/500~2,000A
-AC + DC KVAR: 0~99.99/100~999.9/ 1,000~1,200KW
