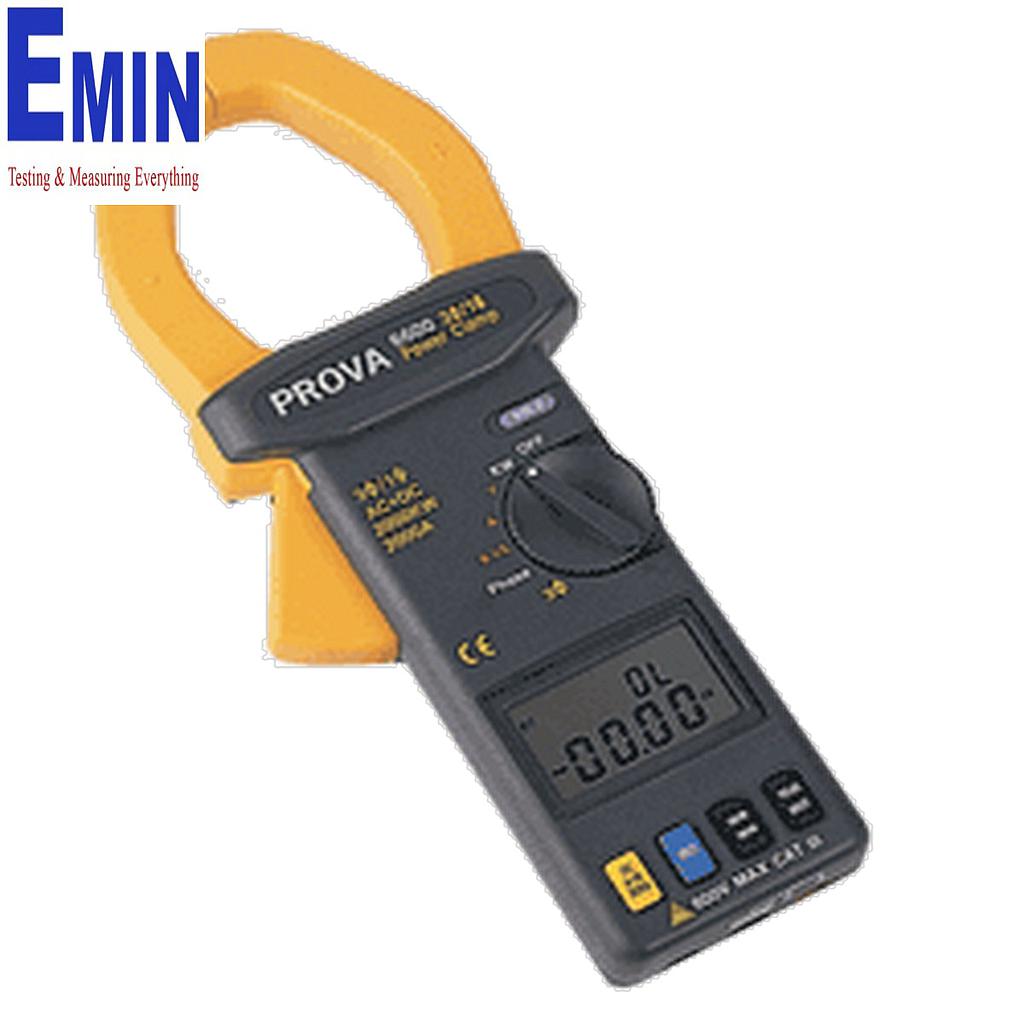

TES Prova 6600 3 Phase/1 Phase Power Clamp

Manufacturer: TES
Model: Prova 6600
Original: Taiwan

-3 ϕ4W, 3 ϕ3W, 3ϕBalanced, 1 ϕ 2W, 1 ϕ3W
-AC+DC 2000KW (3 ϕ ), 1200KW (1ϕ)
-Dual Display W +PF, KVA +KVAR, A+Hz, V+Hz, V+A
-Phase Angle, Phase Sequence Indication
-AC+ DC 600V, 2000A, Power Factor
-AC/DC Auto Detection
-AC+DC True Power: 0~99.99/100~999.9/ 1,000~1,200KW
-AC + DC Voltage:(TRMS) 0~200V/200~500V/500~600V
-AC+DC Current:(TRMS) (±1.5%rdg ± 5dgts) 0~200/200~500/500~2,000A

Datasheet/ Catalogue
