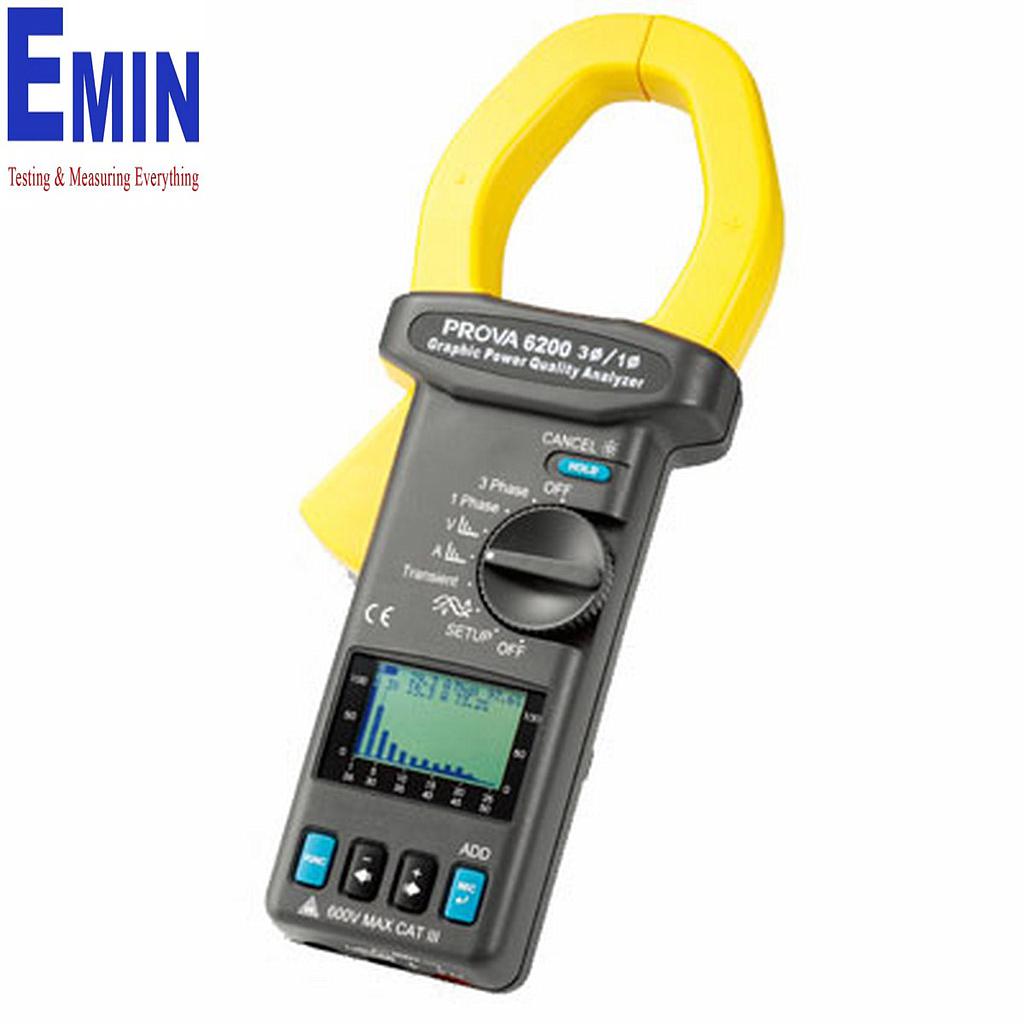

TES Prova 6200 Graphic Power Quality Analyzer

Manufacturer: TES
Model: Prova 6200
Original: Taiwan

-Analysis for Single Phase and Balanced 3 Phase System
-True RMS Value (V and I)
-Active Power (W, KW, MW, GW)
-Apparent Power (VA, KVA, MVA)
-Reactive Power (VAR, KVAR,MVAR)
-Power Factor (PF), Phase Angle (ϕ )
-Energy (WH, KWH, KVARH, PFH)
-Programmable VT (1 to 3000) Ratios
-Display of Overlapped Voltage and Current Waveform
-Maximum Demand (MD in W, KW,MW) with Programmable Period
-Harmonic Analysis (V and I) to the 50th Order
-Display of 25 Harmonics in One Screen
-Waveform Datalogging of 32, 64,128 or 256 points/cycles
-Analysis of Total Harmonic Distortion (%THD-F)
-Graphic Phasor Diagram
-Transient detection and logging of Swell, Dip and Outage(Max. 32000 events)
-50,000 Records with Programmable Interval (1 to 6,000 seconds)
-Real-time Output of Waveform,
-Power Parameters and Harmonics at Command
-Large Dot Matrix LCD Display with Backlight
-Optical Isolated RS-232C Interface
-Smart Datalogging to Save Battery Power for Long-term Monitoring
-Built-in Calendar Clock for Data Logging
