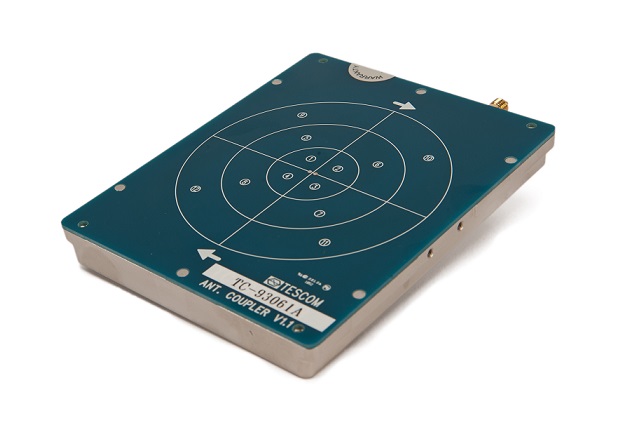

TESCOM TC-93061A Flat Type Antenna Coupler (800 ~ 6000 MHz)

Frequency Range: 800 ~ 6000 MHz

RF Connector: SMA(f)

Dimension: 106 (W) x 130 (D) x 15.6 (H) mm

Weight: 300 g

Terminal: 50 Ohm

VSWR: better than 1 : 2.2 (Typ 1.8)

Polarization: TC-93061A (RHCP)

Datasheet

Features

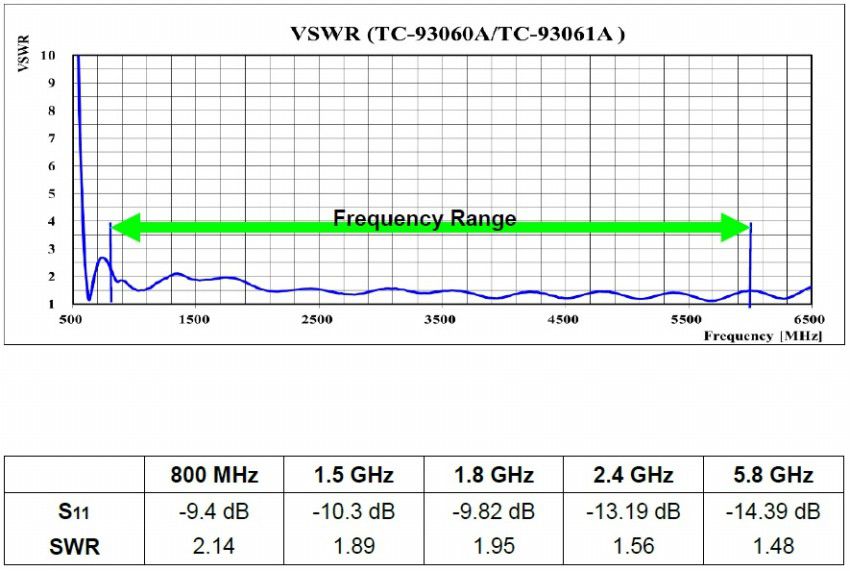

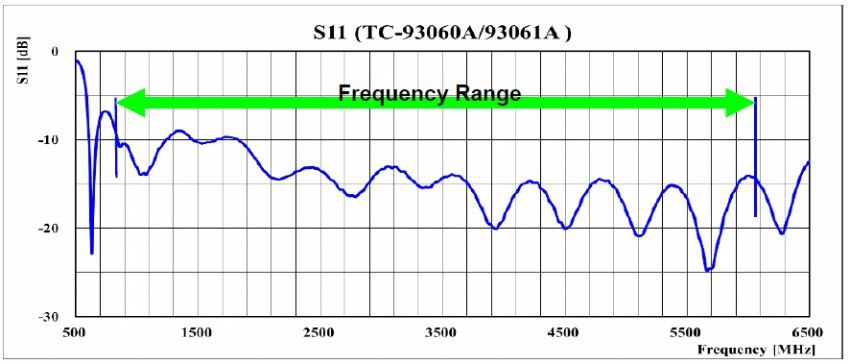

■ Typical S11 and VSWR Data of TC-93061A (T=25℃)

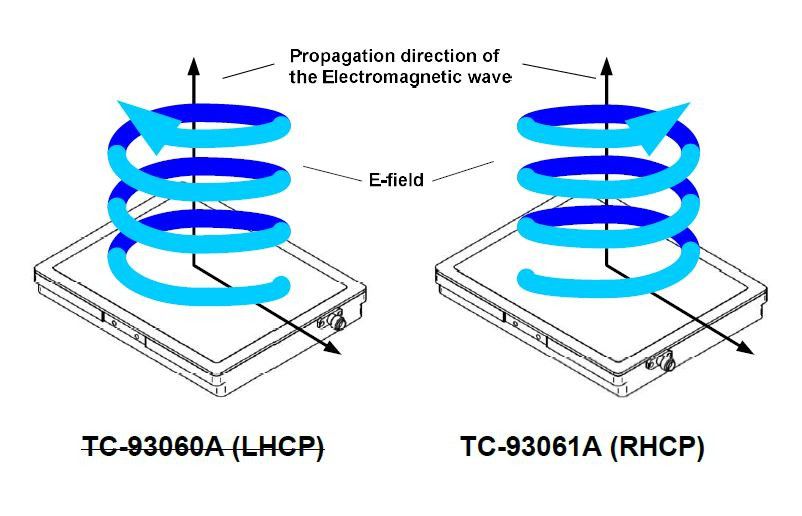

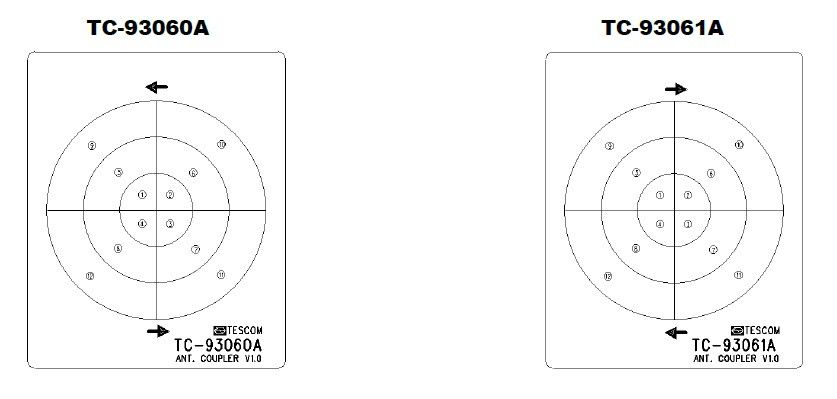

■ Polarization of TC-93061A

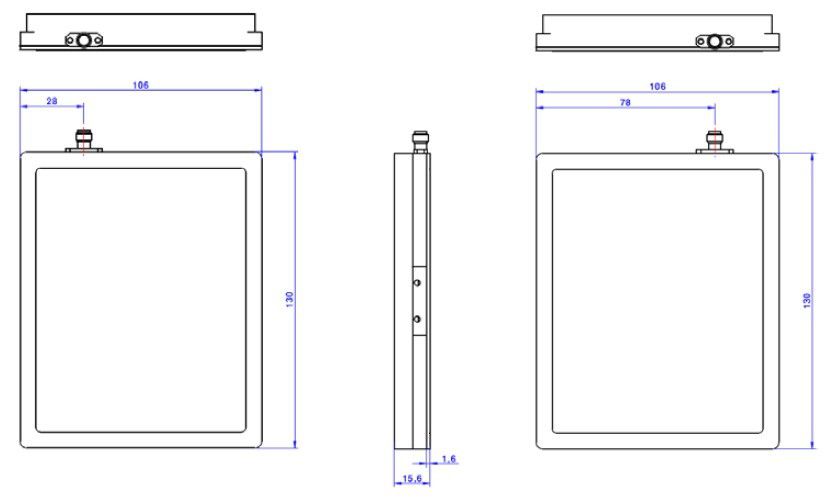

■ Dimensions

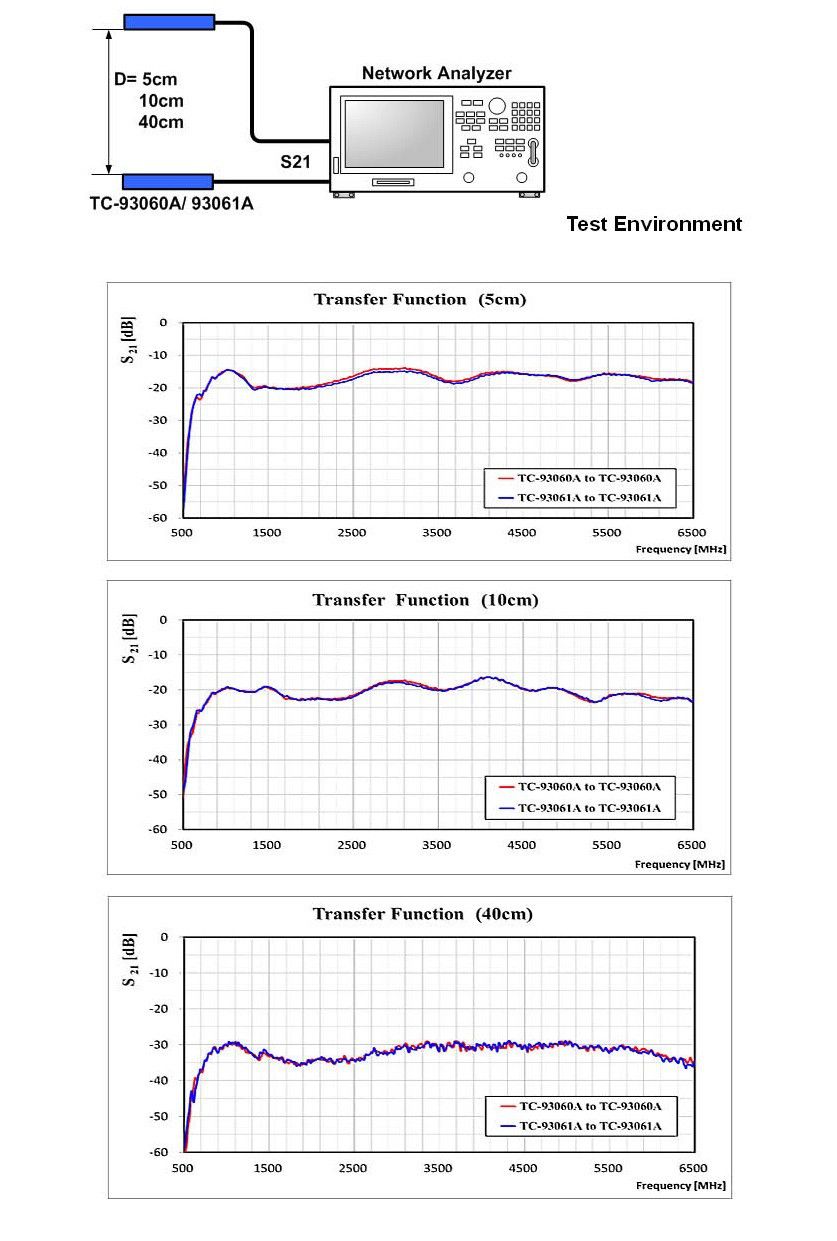

■ Transfer function difference between TC-93061A

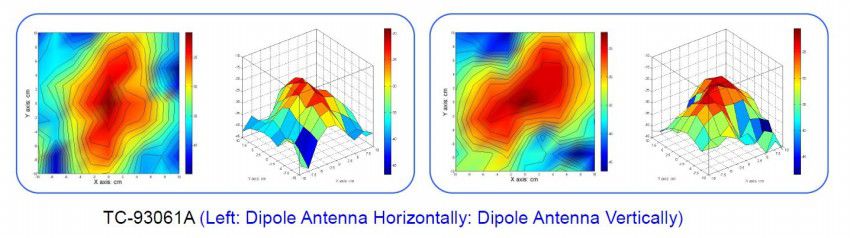

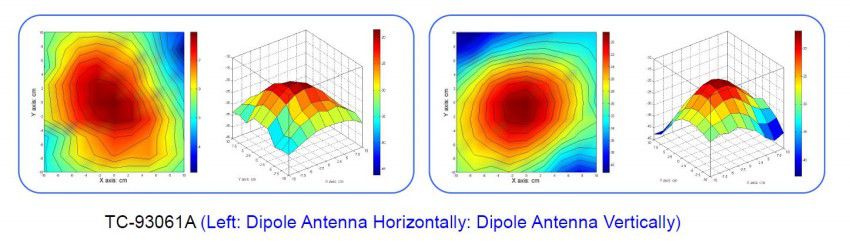

■  Field distribution of TC-93061A

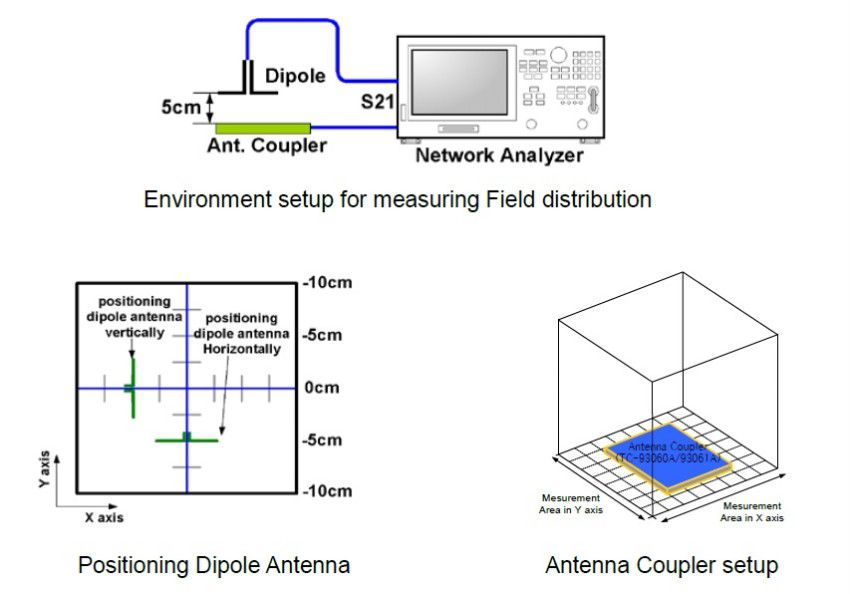

- Measured in open area through Dipole Antenna (0.9 &1.8 &2.4 &5.8 GHz, Tescom)

- Distance from Antenna Coupler (TC-93060A/93061A) to Dipole Antenna: 5 cm

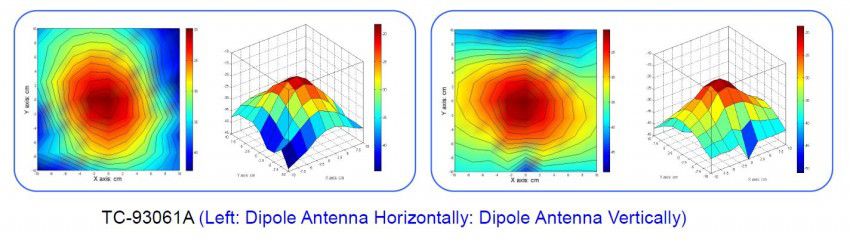

■  Path Loss Distribution at 900 MHz

■  Path Loss Distribution at 1800 MHz

■  Path Loss Distribution at 2400 MHz

■  Path Loss Distribution at 5800 MHz
