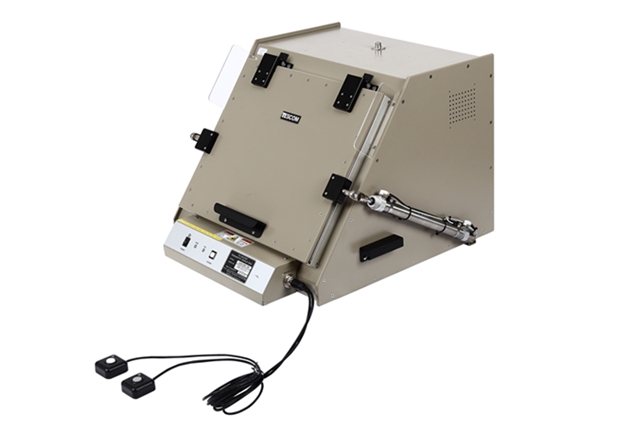

TESCOM TC-5972DP Pneumatic Shield Box

Manufacturer: TESCOM

Model: TC-5972DP

Origin: Korea

Warranty: 12 months

◈ Mechanical Specifications

※ RF Connectors without I/O interface panel : four(4) N(f) outside and SMA(f) inside

※ Line voltage : DC 24 V, Max. 2 A

※ Remote control : RS-232C, 3 wire, DB9(s)

※ Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Fixture control connector connector : 4 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

※ Dimension

- Inside : 445(W) x 450(D) x 338(H) mm, 208(D) mm top side

- Outside: 582(W) x 661(D) x 451(H) mm

※ Weight : Approx.32 kg

※ Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 850(W) x 720(D) x 590(H) mm

- Weight : Approx.42kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

◈ Absorber Reflectivity

Measured the reflected signal from the absorber with metal plate using the VNA.

※ Frequency / Reflectivity (dB)

- 500 to 2000 MHz : 15 dB (Typ.)

- 2000 to 6000 MHz : 20 dB (Typ.)

Datasheet

Manual

- Key Features

◈ High RF Shielding

◈ Pneumatic control of lid open-close and optional test fixture motions

◈ EMI filters on all Data and DC lines

◈ Easily customizable to meet various test needs

◈ RS-232C Remote Control

◈ Red and Green LED’s for Pass/Fail indication

◈ High performance absorber for radiation testing

- Dimension

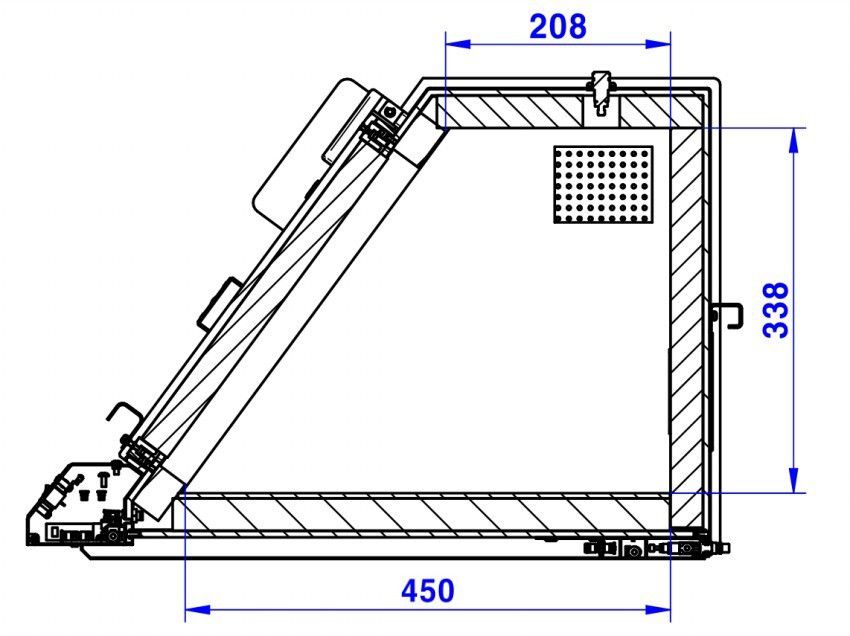

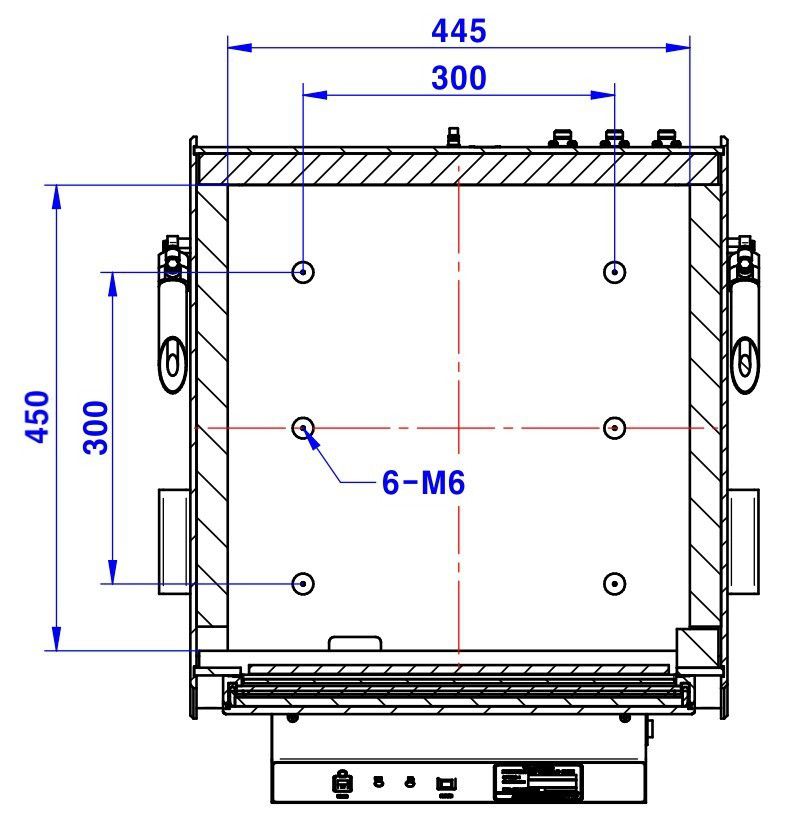

TC-5972DP Inner Dimension

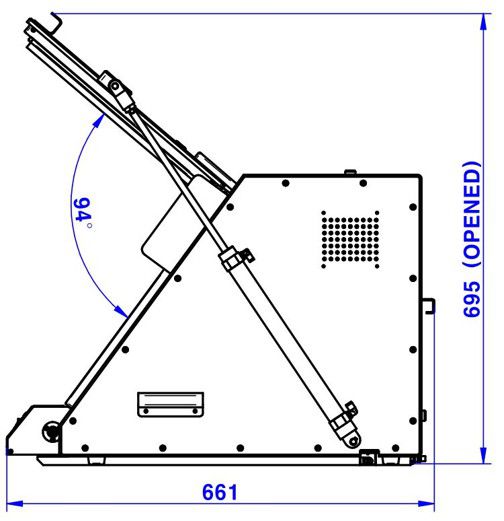

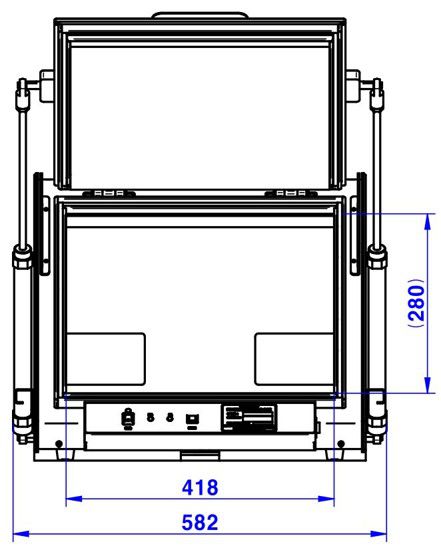

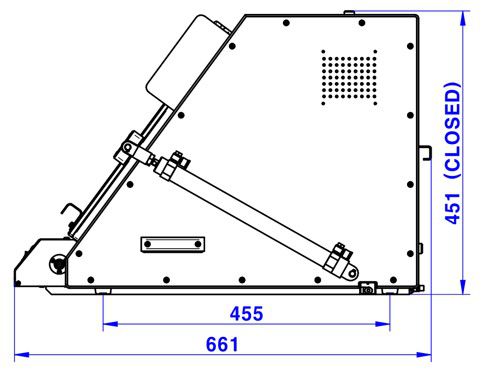

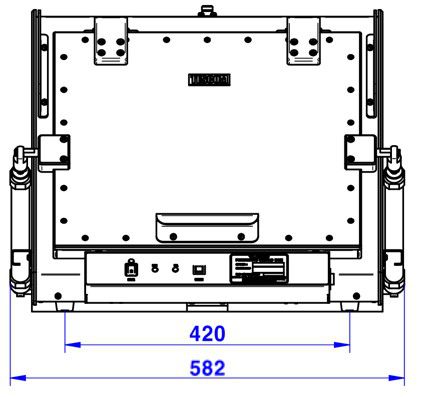

TC-5972DP Outer Dimension
