TESCOM TC-5932A Shield Box
◈ Mechanical Specifications
TC-5932A
Dimensions
- Inside : 369(W) x 313(D) x 240(H) mm
- Outside : 416(W) x 400(D) x 293(H) mm
- Door : 361(W) x 258(H) mm
Weight : Approx. 14 kg
Packing (The size or weight of a package may vary on pack a package.)
- Size : 680(W) x 640(D) x 440(H) mm
- Weight : Approx. 20 kg

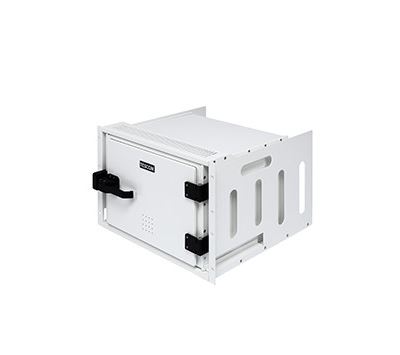

TC-5932A Rack Mount Set (19" Rack Optional)
Dimensions
- Inside : 369(W) x 313(D) x 240(H) mm
- Outside : 483(W) x 488(D) x 310(H) mm
- Door : 361(W) x 238(H) mm
Weight : Approx. 21 kg
Packing (The size or weight of a package may vary on pack a package.)
Size : 680(W) x 640(D) x 440(H) mm
Weight : Approx. 27 kg
The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.
Frequency / Shielding effectiveness (dB)
Datasheet
Key Features
◈ High RF Shielding
◈ Easy Opening/Closing of lid
◈ EMI filters on all Data and DC lines
◈ Customizable Data connections
◈ TC-5932A Rack Mount Set : TC-5932A 1 EA + 19” Rack Mounting Bracket
◈ Dimensions

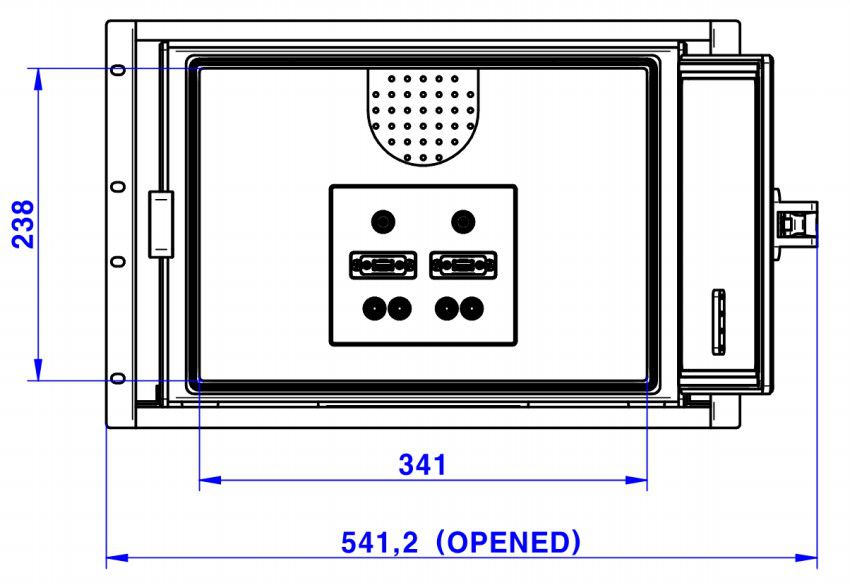

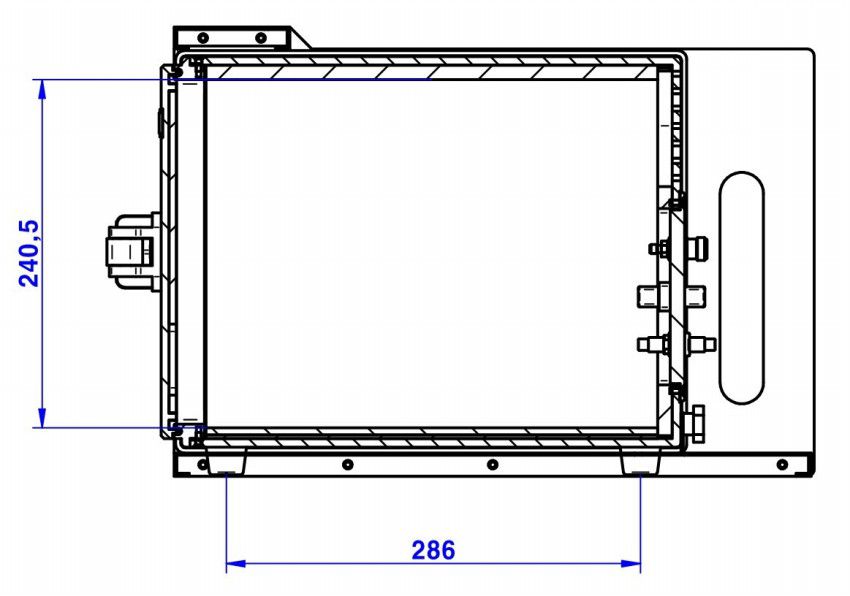

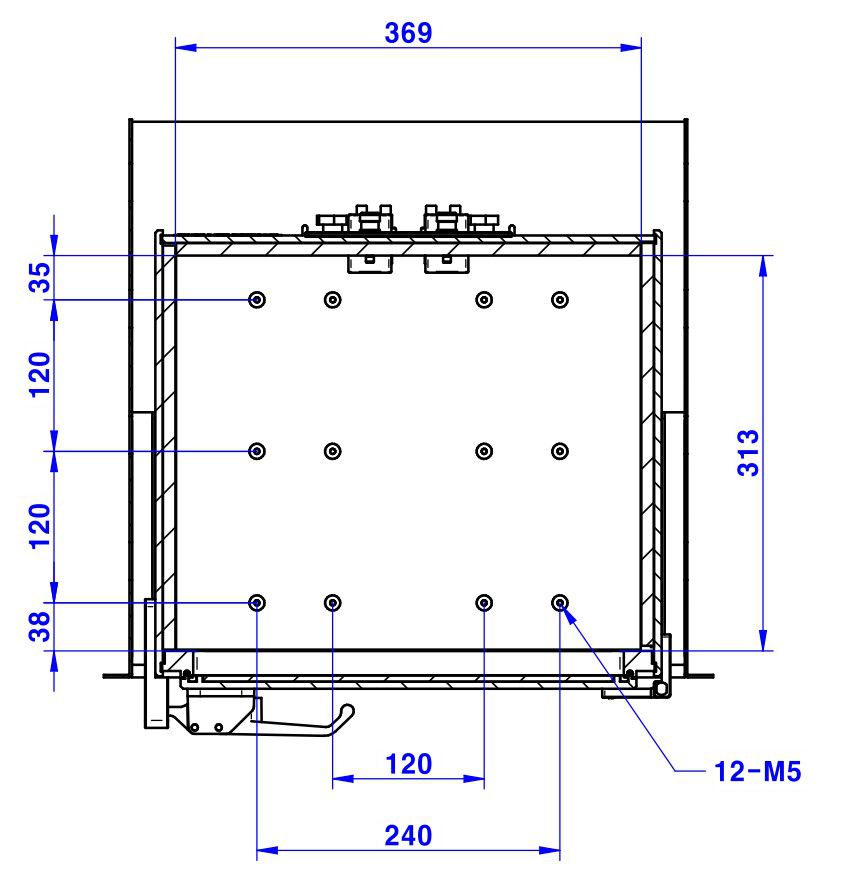

TC-5932A Inner Dimension

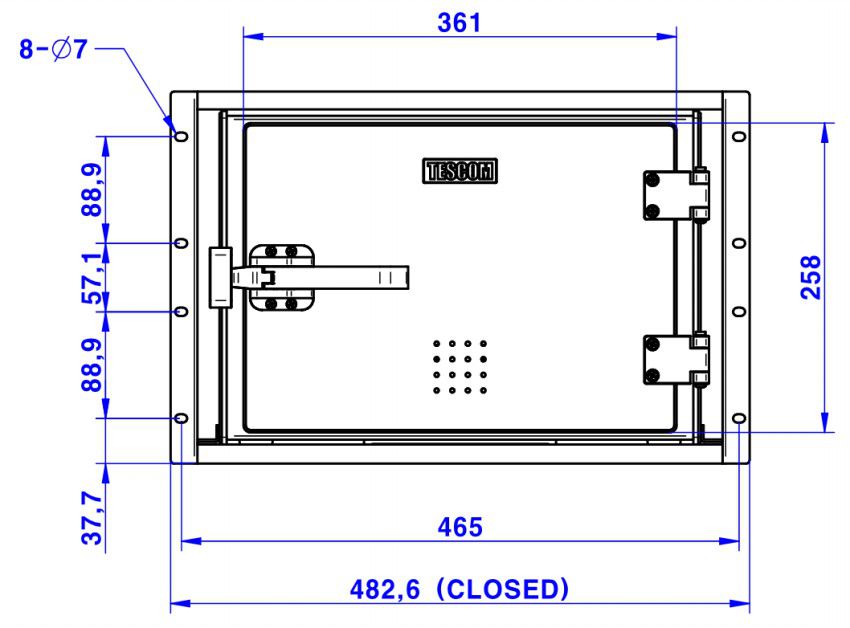

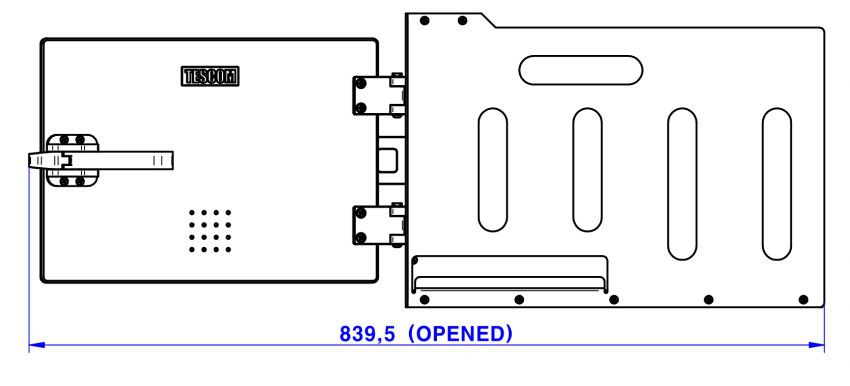

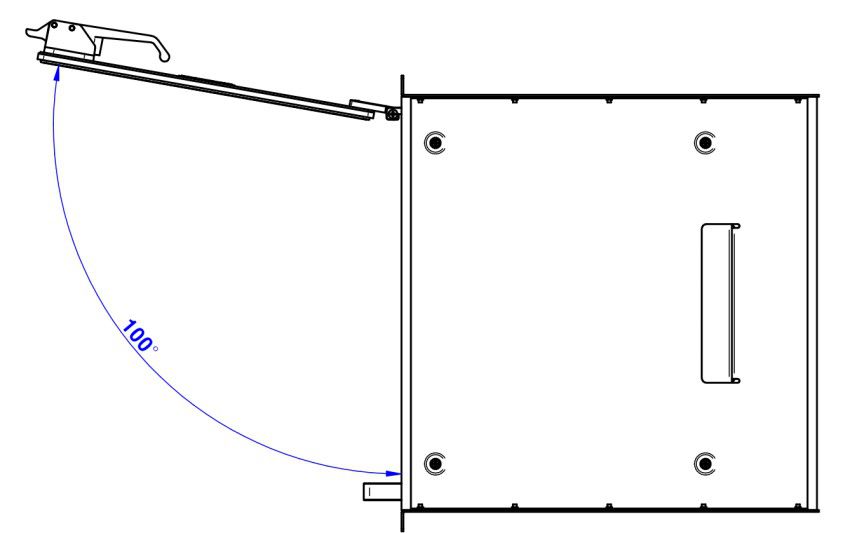

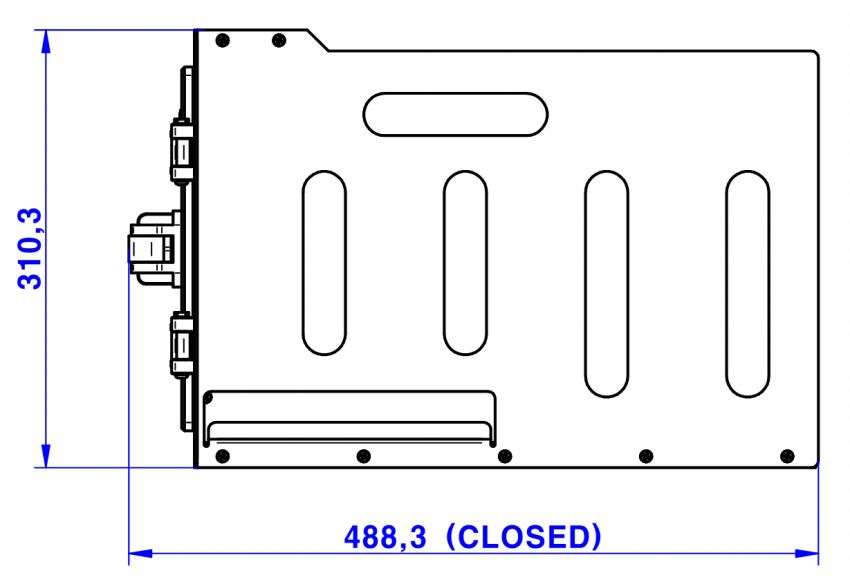

TC-5932A Outer Dimension
