TESCOM TC-5930A/AR Shield Box

◈ Mechanical Specifications

[TC-5930A]

Dimensions

- Inside : 170(W) x 312(D) x 240(H) mm

- Outside : 217(W) x 396(D) x 282(H) mm

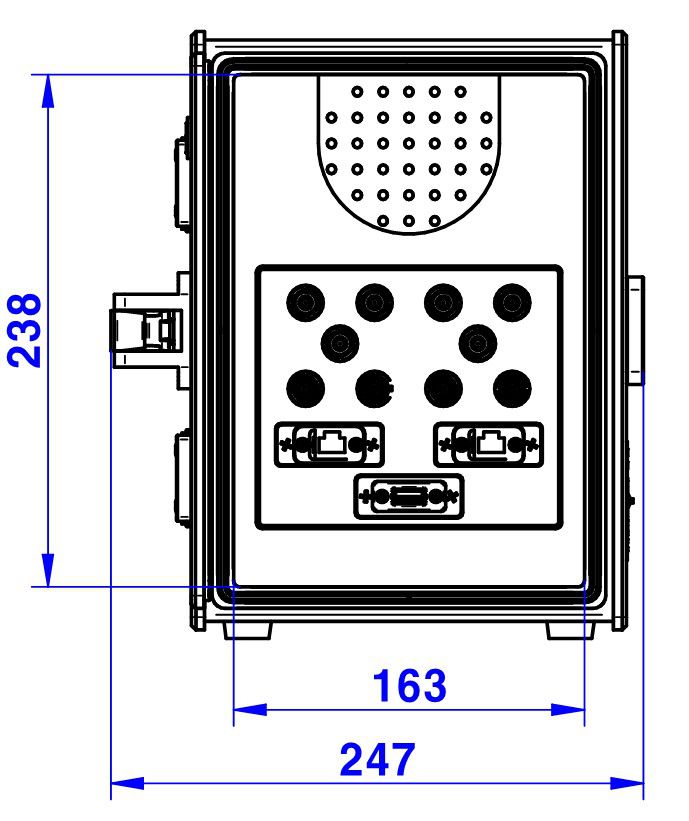

- Door : 163(W) x 238(H) mm

Weight : Approx. 9 kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 370(W) x 510(D) x 400(H) mm

- Weight : Approx. 11 kg

[TC-5930AR]

Dimensions

- Inside : 170(W) x 312(D) x 240(H) mm

- Outside : 483(W) x 488(D) x 310(H) mm

- Door : 163(W) x 238(H) mm

Weight : Approx. 24 kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 640(W) x 690(D) x 440(H) mm

- Weight : Approx. 31 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 80 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

Datasheet

Manual

Key Features

◈ High RF Shielding

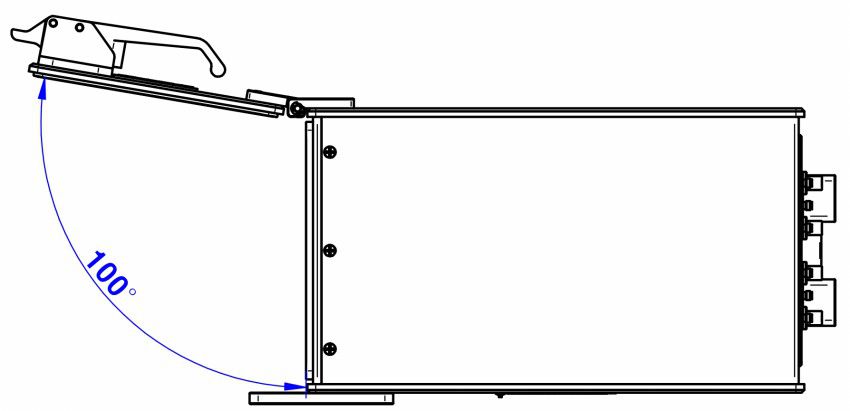

◈ Easy Opening/Closing of lid

◈ EMI filters on all Data and DC lines

◈ Customizable Data connections

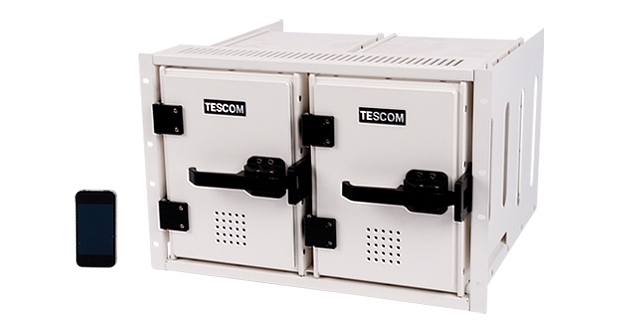

◈ 19” Rack Mount Set (TC-5930AR) : TC-5930A 2EA, 19” Rack Mounting Bracket

Dimensions

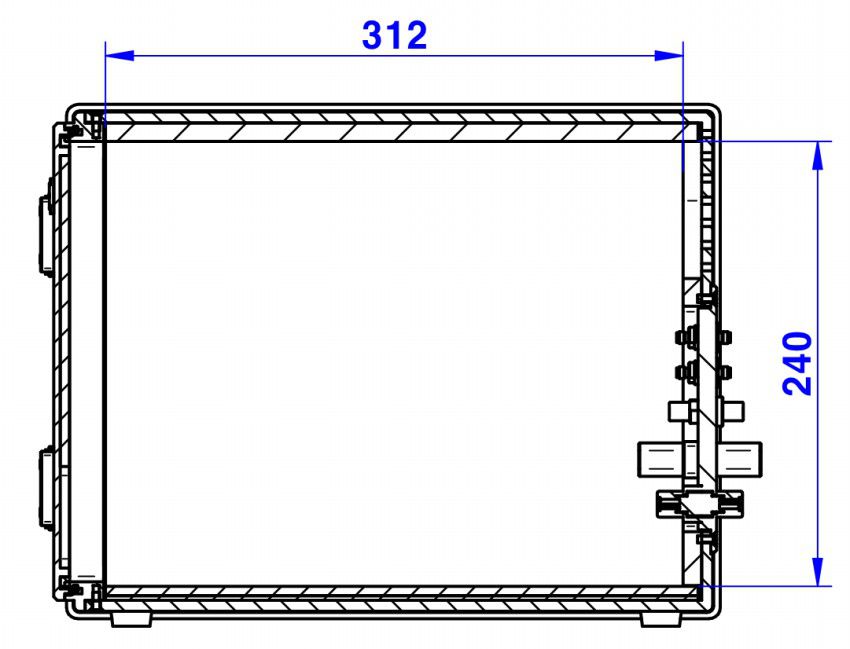

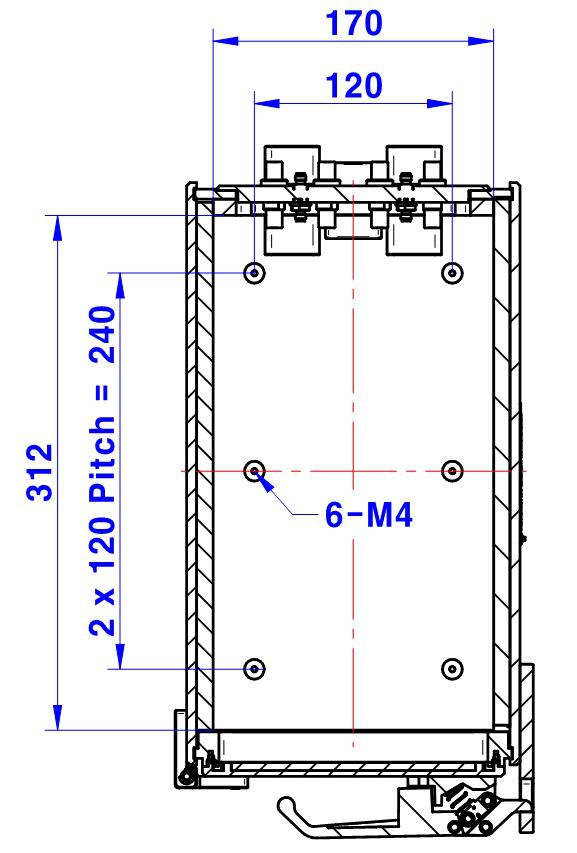

TC-5930A Inner Dimension

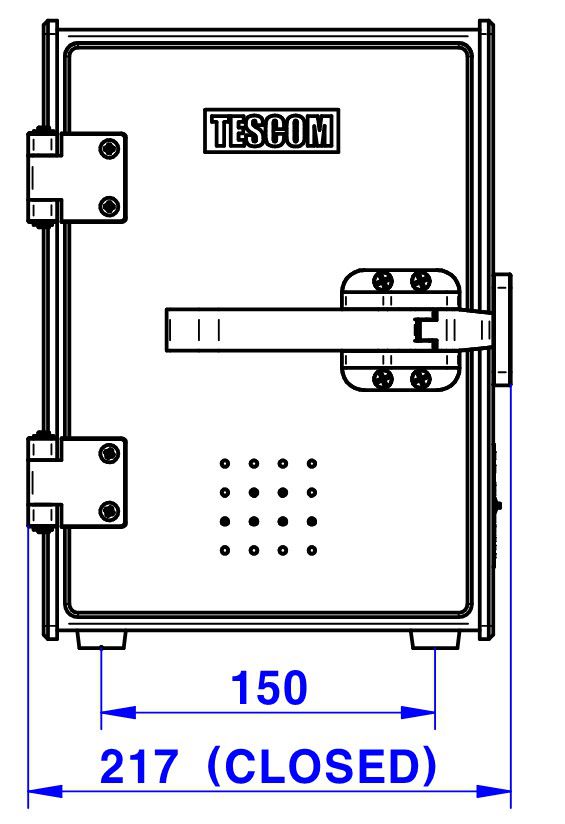

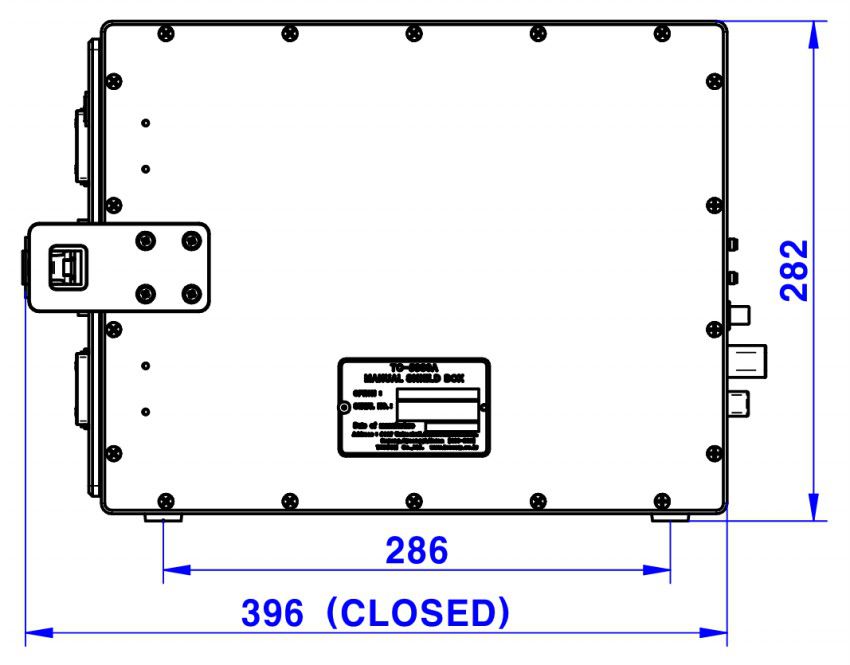

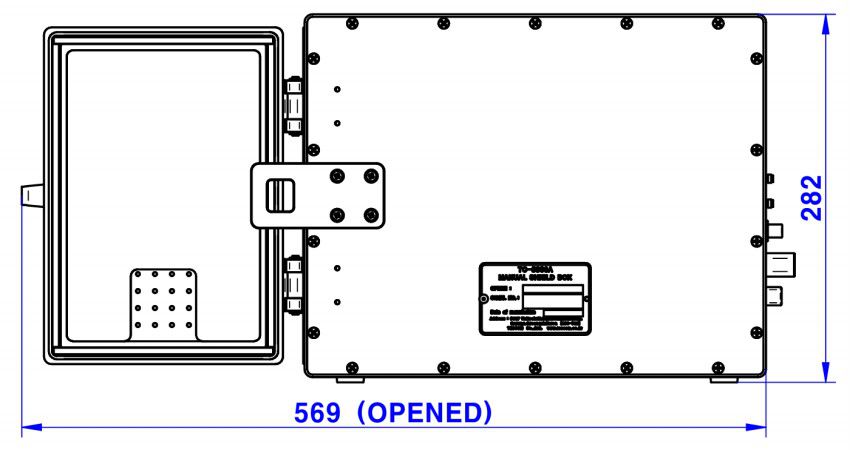

TC-5930A Outer Dimension
