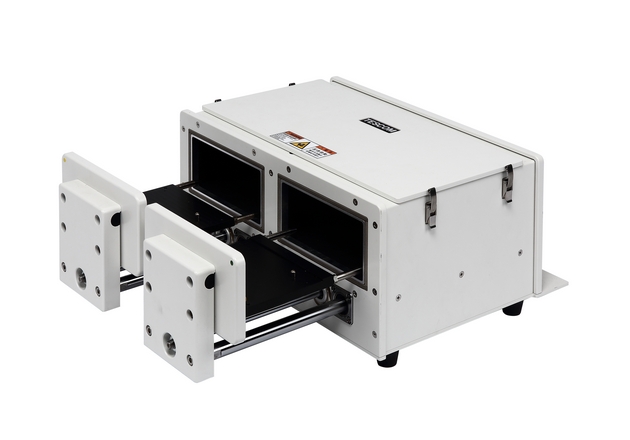

TESCOM TC-5925AP Pneumatic Shield Box

◈ Mechanical Specifications

※ Line voltage : 100 - 240 VAC, 50/60 Hz, 15 watt max.

※ Remote control : RS-232C, 3 wire, DB9(s)

※ Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

※ Dimension

- Inside : 176(W) x 236(D) x 82(H) mm

- Outside: 405(W) x 356(D) x 194(H) mm, door closed. 530(D) mm, door open

※ Weight : Approx.17 kg

※ Packing

- Size : 510(W) x 560(D) x 360(H) mm

- Weight : Approx.26kg

The size or weight of a package may vary on how to pack a package.

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

Datasheet

- Key Features

◈ High RF Shielding

◈ Pneumatic control of lid open-close and optional test fixture motions

◈ EMI filters on all Data and DC lines

◈ Easily customizable to meet various test needs

◈ RS-232C Remote Control

◈ 2 independent shield rooms (Each door operates independently)
