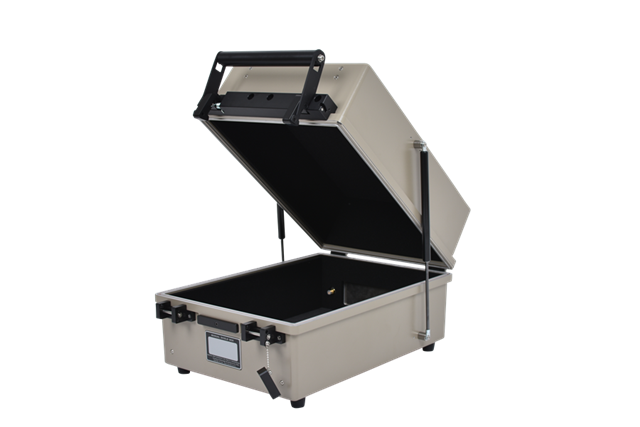

TESCOM TC-5922B Shield Box

◈ Mechanical Specifications

Basic I/O connectors

RF connectors : two(2) N(f) outside and SMA(f) inside

Dimension

- Inside : 296(W) x 435(D) x 238(H) mm

- Outside : 378(W) x 577(D) x 289(H) mm, lid closed. 600(H) mm, lid open.

Weight : Approx. 22kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 560(W) x 820(D) x 470(H) mm

- Weight : Approx. 28 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

Datasheet

Manual

Key Features

◈ High RF Shielding

◈ Easy Opening/Closing of lid

◈ EMI filters on all Data and DC lines

◈ Easily customizable to meet various test needs

◈ Shock absorber on lid

◈ High performance absorber for radiation testing

Dimensions

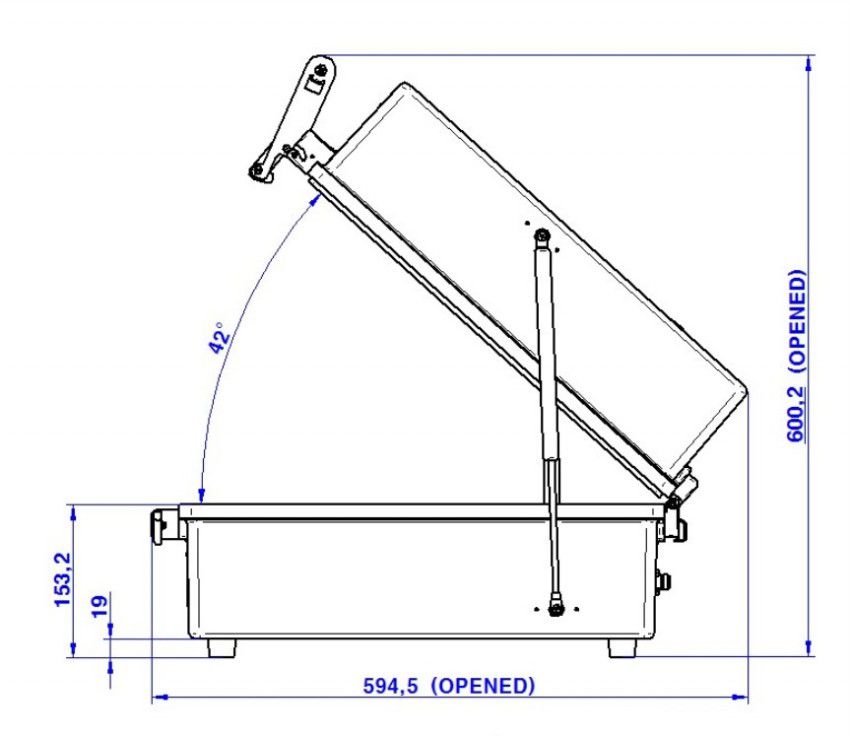

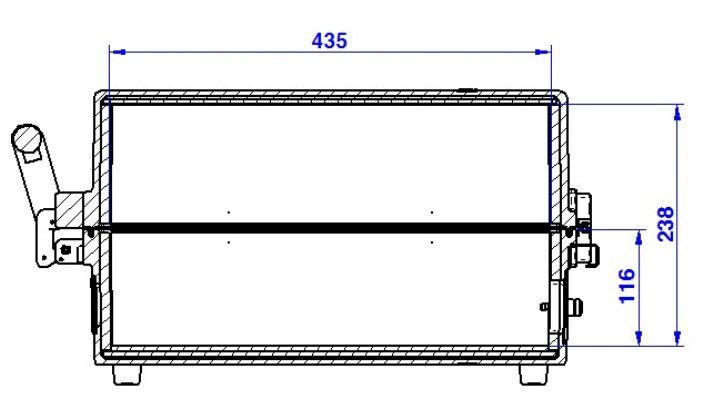

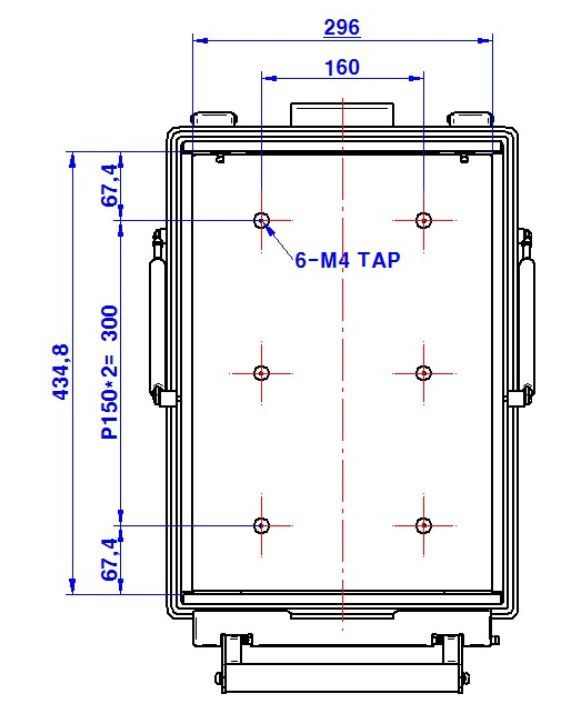

TC-5922B Inner Dimension

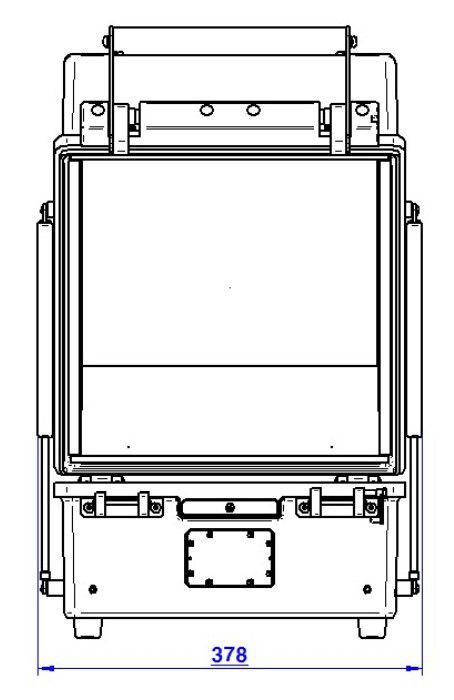

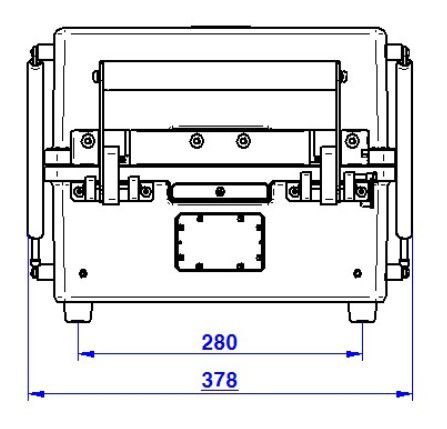

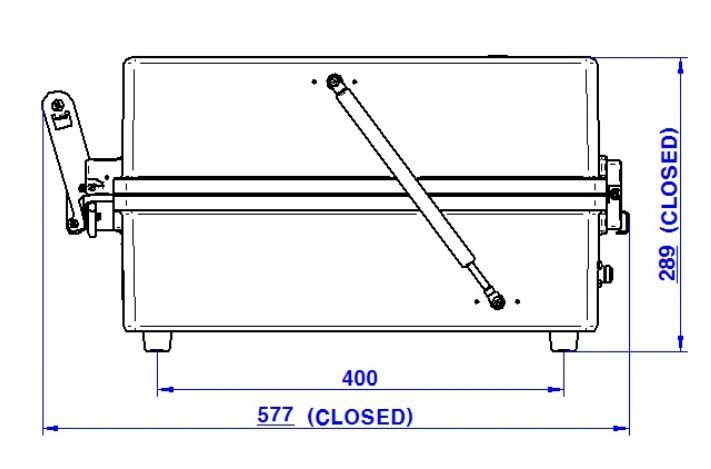

TC-5922B Outer Dimension
