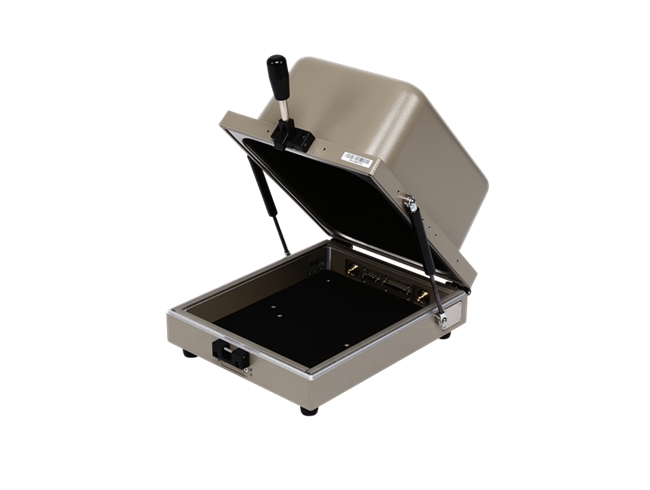

TESCOM TC-5915A Shield Box

◈ Mechanical Specifications

Dimension

- Inside : 236(W) x 297(D) x 180(H) mm

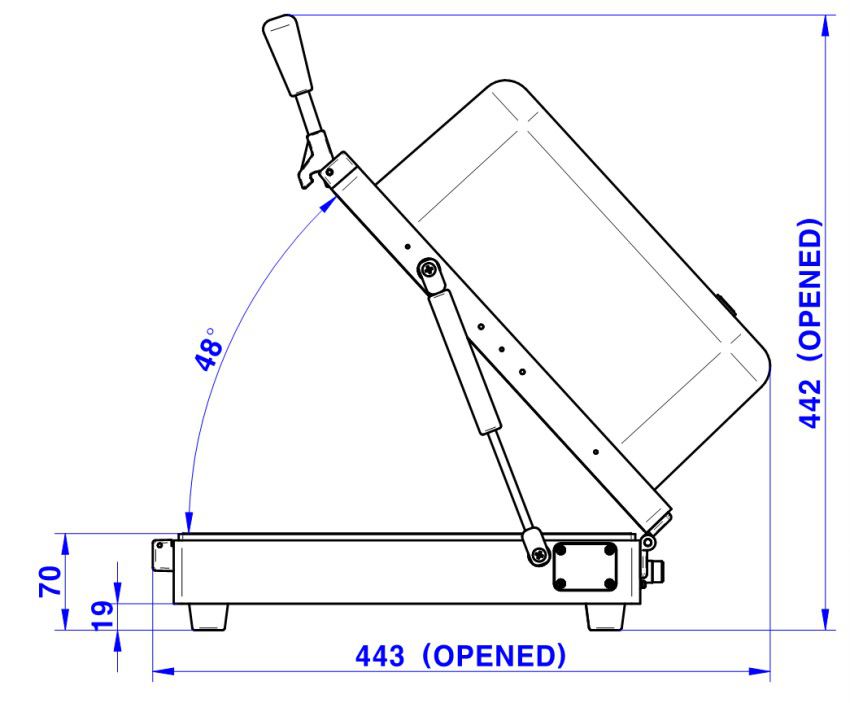

- Outside : 309(W) x 473(D) x 221(H) mm, lid closed. 442(H) mm, lid open.

Weight : Approx. 9 kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 460(W) x 530(D) x 340(H) mm

- Weight : Approx. 10 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

Datasheet

Manual

Key Features

◈ High RF Shielding

◈ Easy Opening/Closing of lid

◈ EMI filters on all Data and DC lines

◈ Easily customizable to meet various test needs

◈ Shock absorber on lid

Dimension

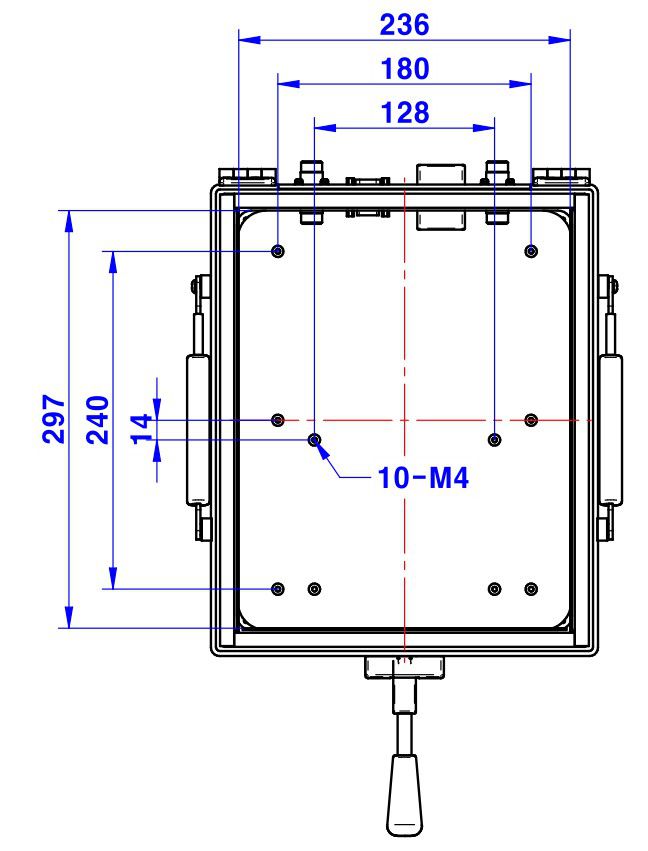

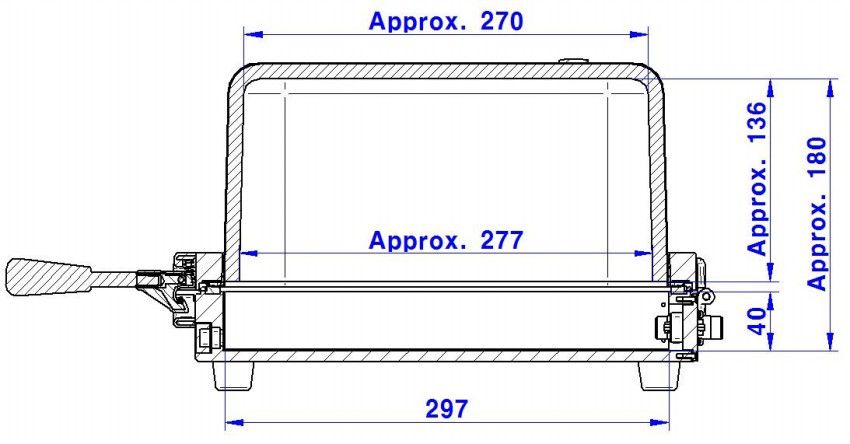

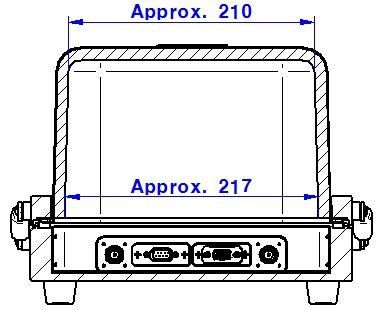

TC-5915A Inner Dimension

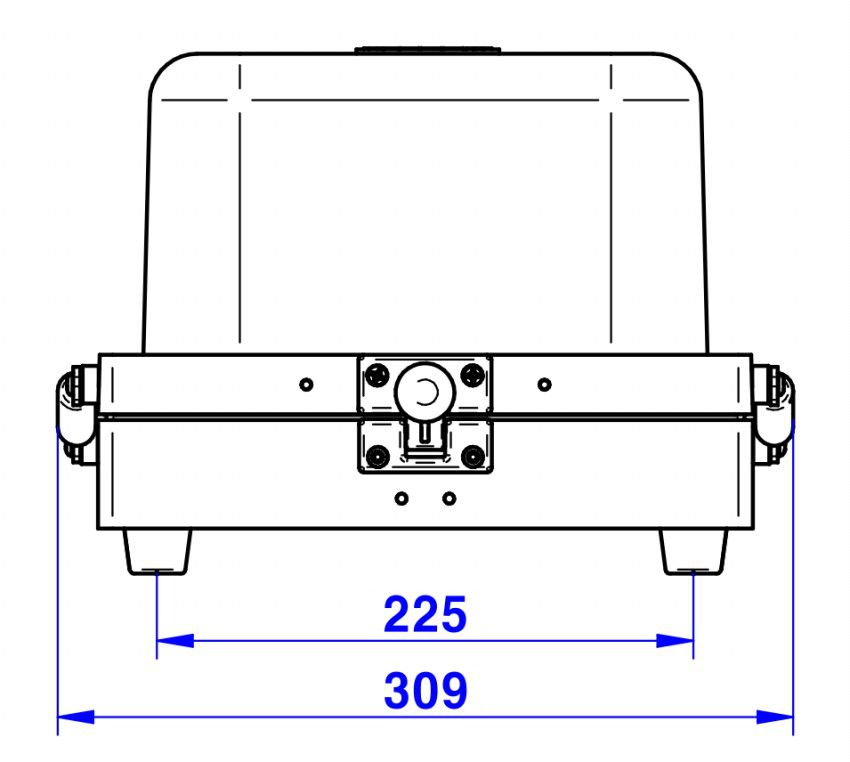

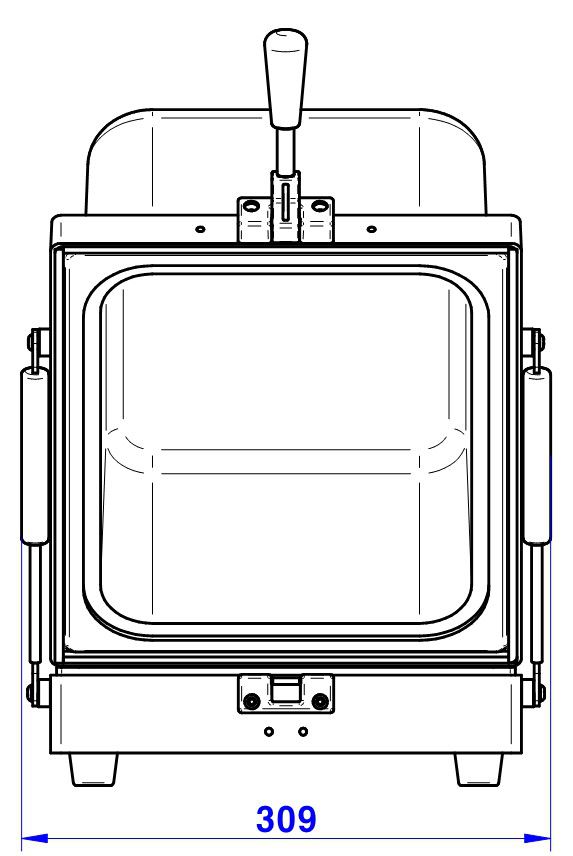

TC-5915A Outer Dimension
