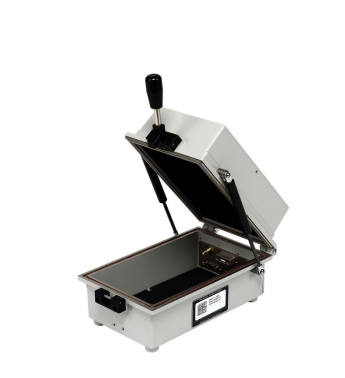

Tescom TC-5910DU Shield Box

◈ Mechanical Specifications

Dimension

- Inside : 142(W) x 243(D) x 134(H) mm

- Outside : 207(W) x 424(D) x 173(H) mm, lid closed. 435(H) mm, lid open..

Weight : Approx. 5 kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 370(W) x 460(D) x 280(H) mm

- Weight : Approx. 6 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 0.1 GHz to 3 GHz : > 70 dB

- 3 GHz to 6 GHz : > 60 dB

- 6 GHz to 12 GHz : > 60 dB
