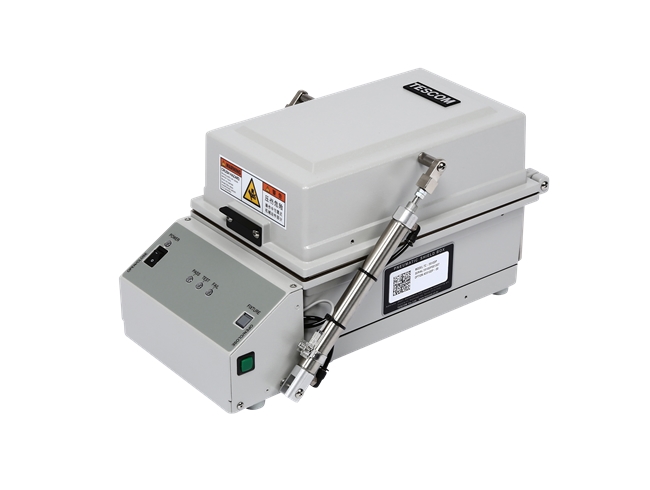

TESCOM TC-5910DP Pneumatic Shield Box

◈ Mechanical Specifications

※ Line voltage : DC 24 V, Max. 2 A

※ Remote control : RS-232C, 3 wire, DB9(s)

※ Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Fixture control connector connector : 4 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

※ Dimension

- Inside : 142(W) x 243(D) x 139(H) mm

- Outside : 218(W) x 375(D) x 195(H) mm, lid closed. 410(D) x 360(H) mm, lid open.

※ Weight : Approx. 7 kg

※ Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 370(W) x 460(D) x 280(H) mm

- Weight : Approx. 8 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

Datasheet

Manual

Key Features

◈ High RF Shielding

◈ Pneumatic control of lid open-close and optional test fixture motions

◈ EMI filters on all Data and DC lines

◈ Easily customizable to meet various test needs

◈ RS-232C Remote Control

Dimension

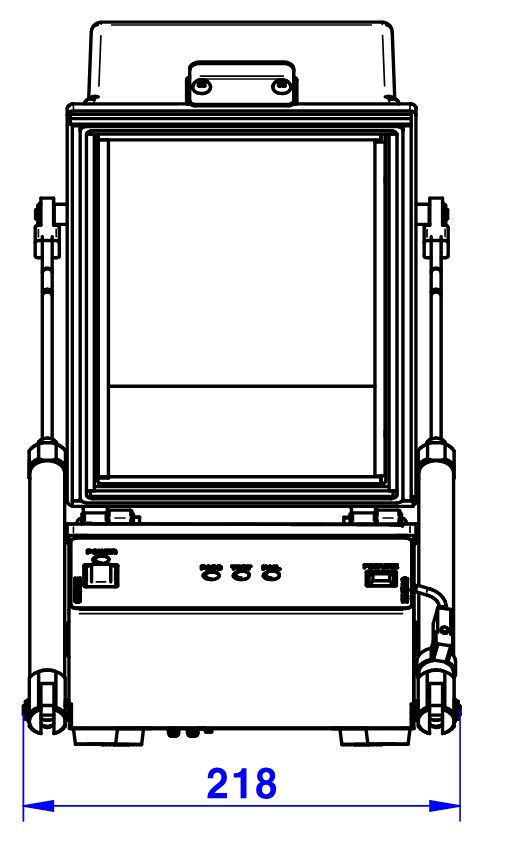

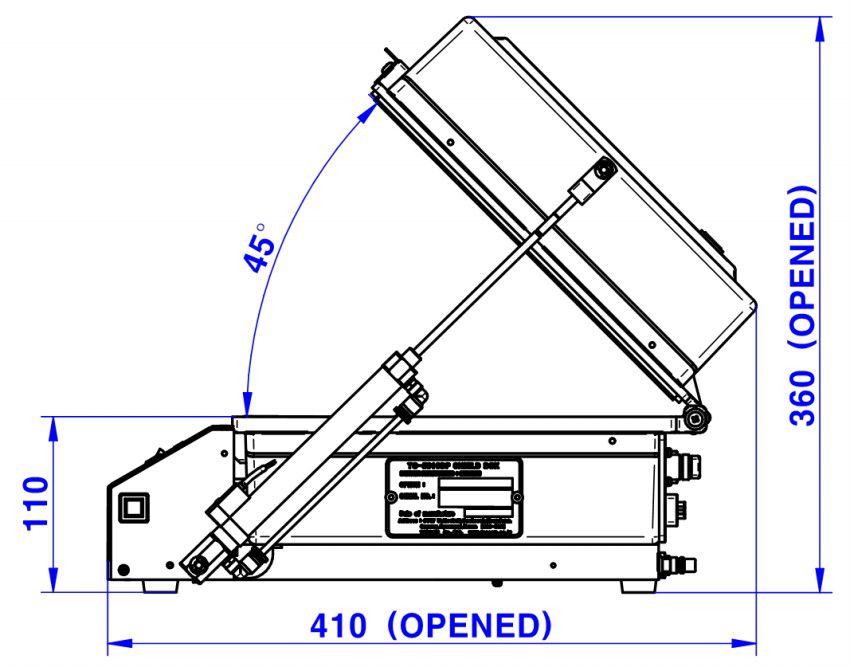

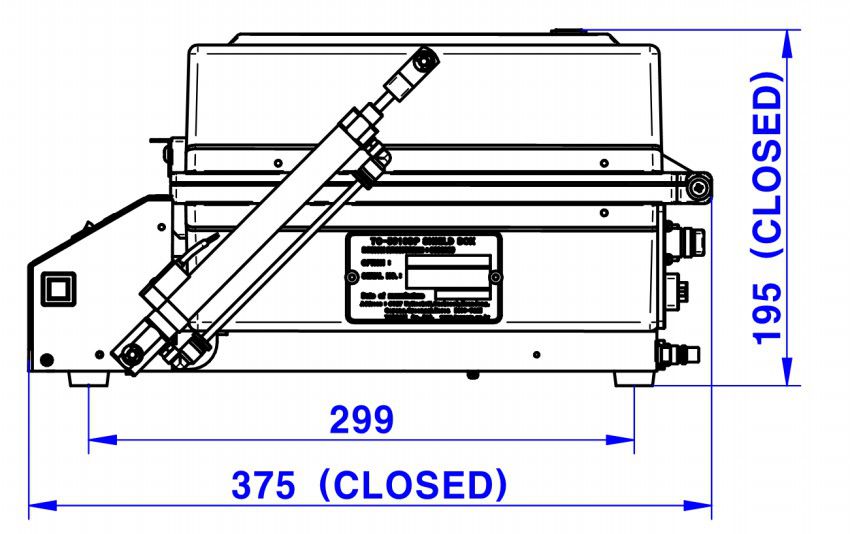

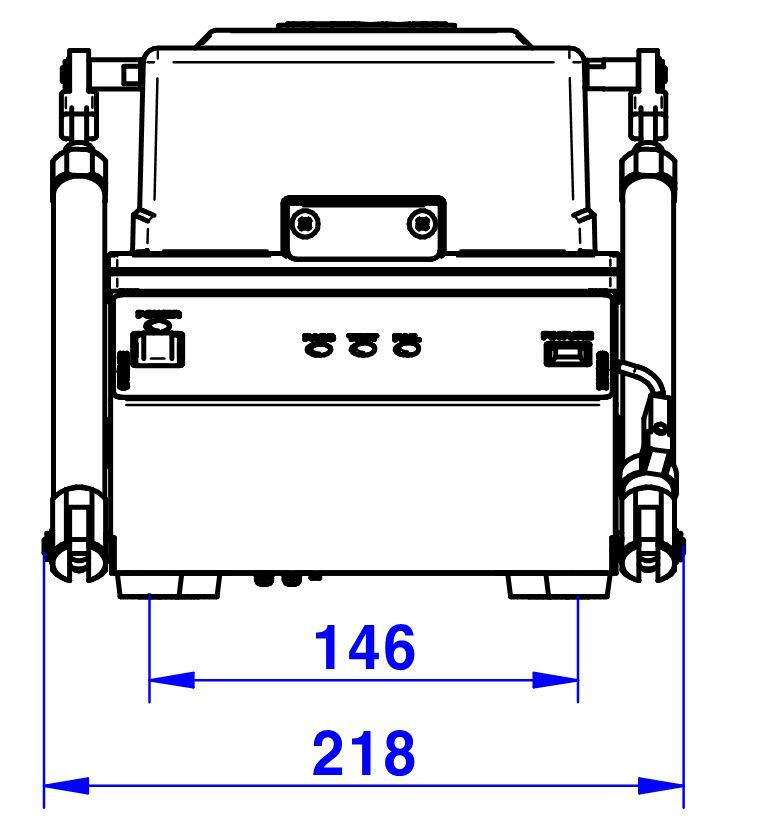

TC-5910DP Outer Dimension

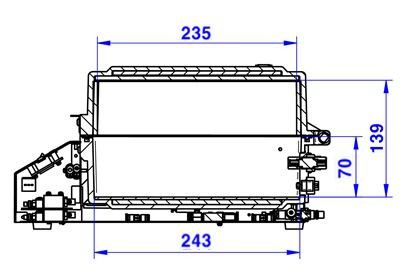

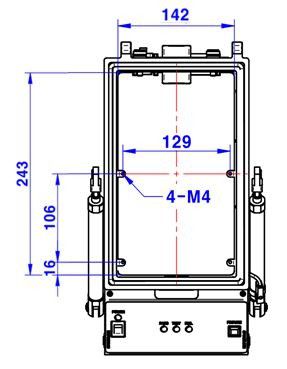

TC-5910DP Inner Dimension
