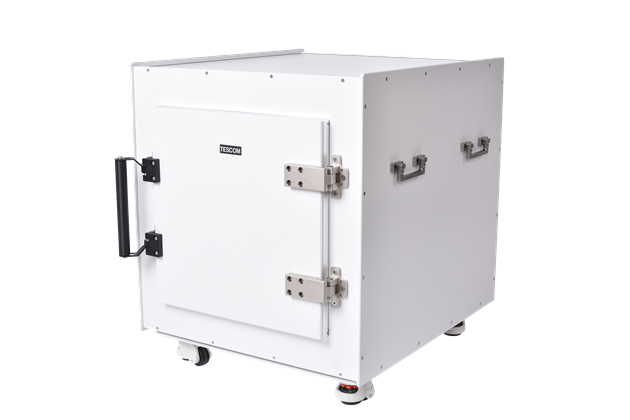

TESCOM TC-5810A Audio Test Shield Box

◈ Mechanical Specifications

Basic RF Connectors without module: two (2), N(f) outside to SMA(f) inside

Dimension

- Inside : 445(W) x 547(D) x 445(H) mm

- Outside : 690(W) x 856(D) x 768(H) mm

- Door : 439(W) x 439(H) mm

Weight : 90 kg

Packing

- Size : 896 (W) x 1016(D) x 876(H) mm

- Weight : Approx.105 kg

- The size or weight of a package may vary on how to pack a package.

Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectiveness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 70 dB

Datasheet

- Features

Reliable High RF Shielding up to 6 GHz

High Performance RF+Audio Multi-Absorber

Specifically designed for various types of Large Device

EMI filters on all Data ports

Easy Opening/Closing of Door

Customizable Data connections

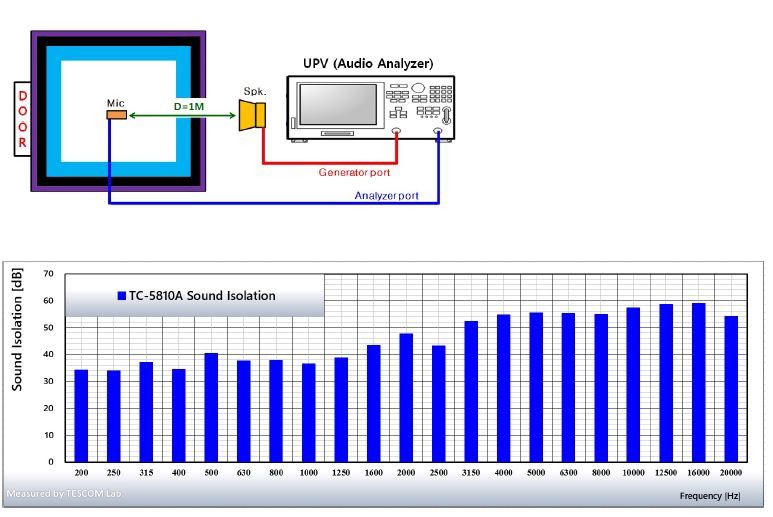

◈ Typical Sound Isolation

The sound isolation below is measured when the blank panel is mounted

◈ Absorption Performance

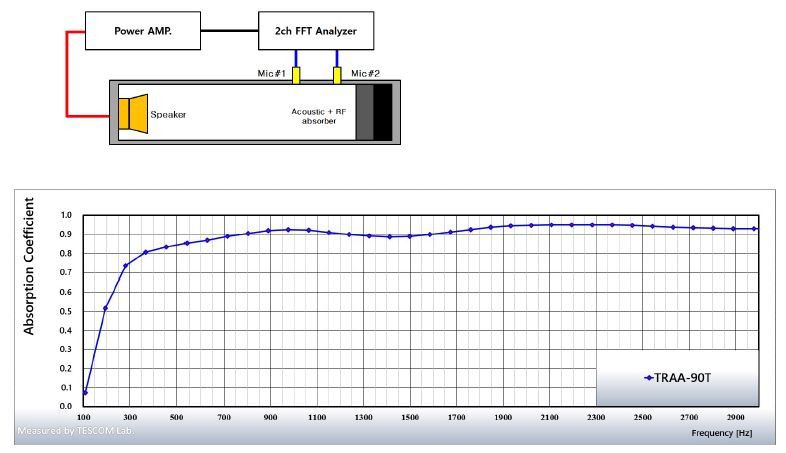

- Audio Absorber Performance (ISO 10534-2 : Impedance Tube Method)

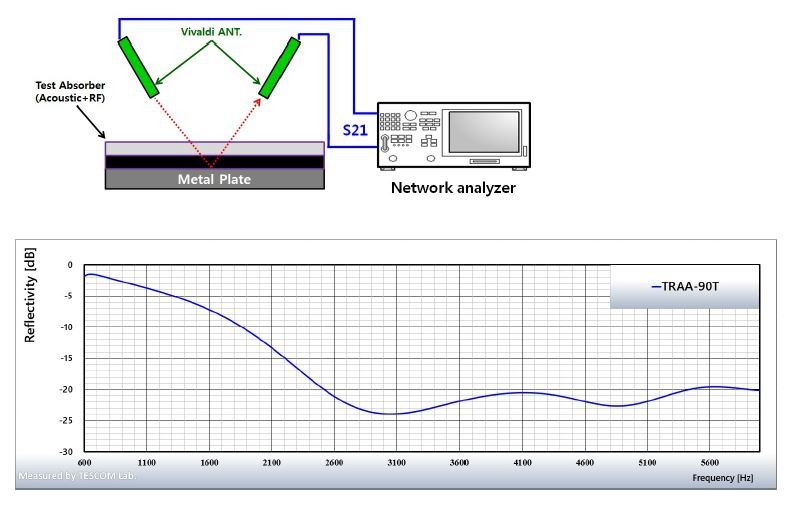

- RF Absorber Performance (NRL Arch Method)

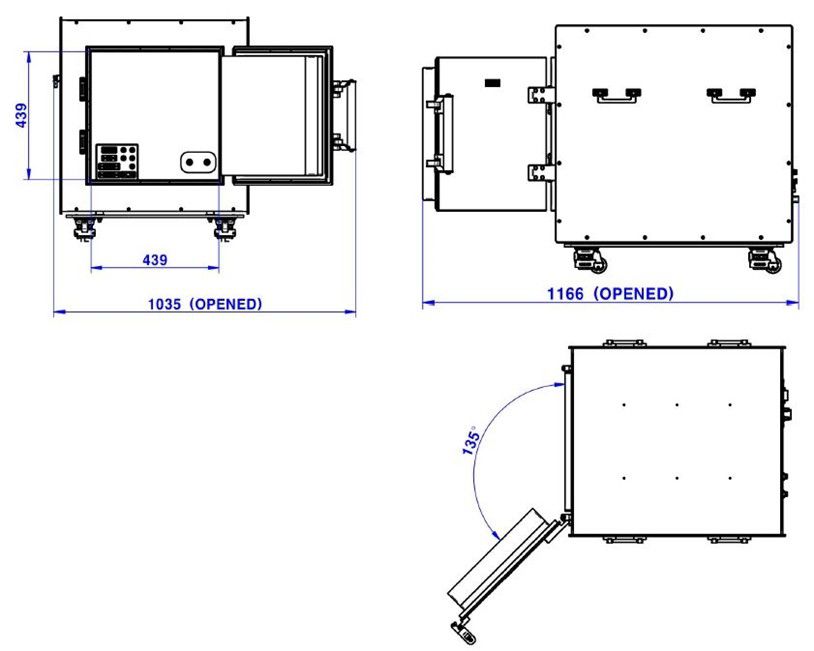

◈ Dimensions

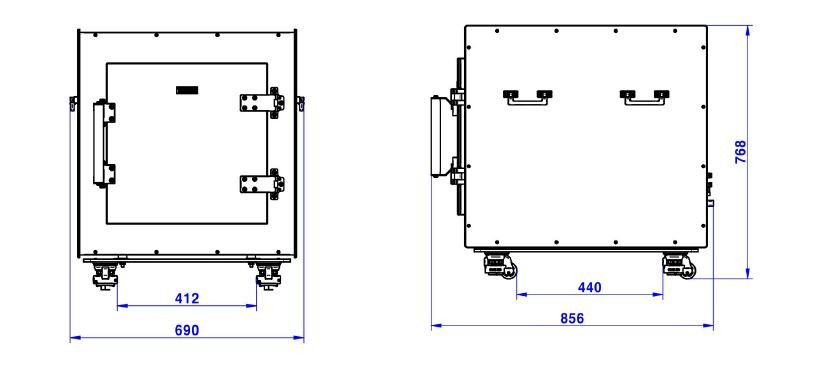

TC-5810A Outside size : 690(W) x 856(D) x 768(H) mm

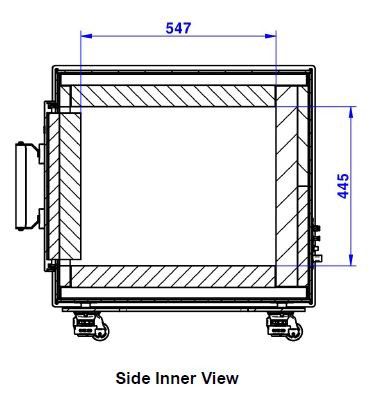

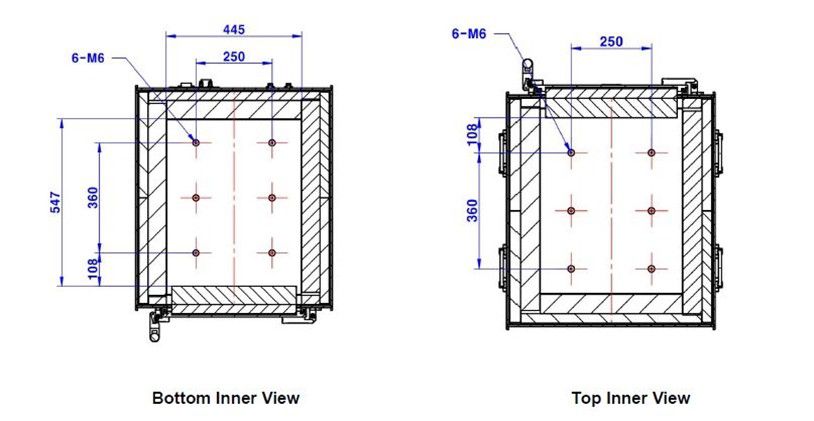

TC-5810A Inside size : 445(W) x 547(D) x 445(H) mm
