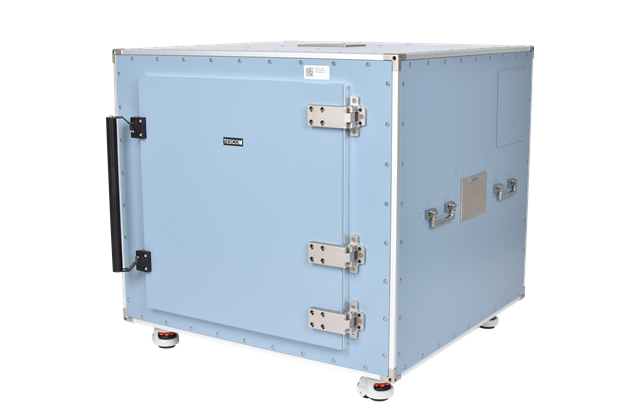

Tescom TC-5570A mmWave Shield Box

◈ Mechanical Specifications

Basic RF connector: one(1) 1.85 mm(f) outside and 1.85 mm(f) inside

Dimension

+ Inside : 802(W) x 762(D) x 644(H) mm

+ Outside : 916(W) x 940(D) x 856(H) mm

+ Door : 624(W) x 624(H) mm

Weight: Approx. 81 kg

Packing

+ Size : 1100(W) x 1100(D) x 1030(H) mm

+ Weight : Approx. 101 kg

- The size or weight of a package may vary on how to pack a package.

◈ Typical RF Shielding

The shield effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

+ 0.1 GHz to 30 GHz : > 60 dB

+ 30 GHz to 67 GHz : > 70 dB

◈ Absorber Reflectivity

Being measured based on the metal plate (0 dB @ 18 GHz to 67 GHz), and measures the value that is reduced when the radio wave absorber is inserted.

Frequency / Reflectivity (dB)

+ 0.5 GHz to 2 GHz : 15 dB (Typ.)

+ 2 GHz to 67 GHz : 20 dB (Typ.)

Datasheet

◈ Key Features

Specifically designed for Millimeter wave test

Reliable High RF Shielding from 0.1 GHz to 67 GHz

EMI filters on all Data ports

Easy Opening/Closing of Door

Customizable Data connections

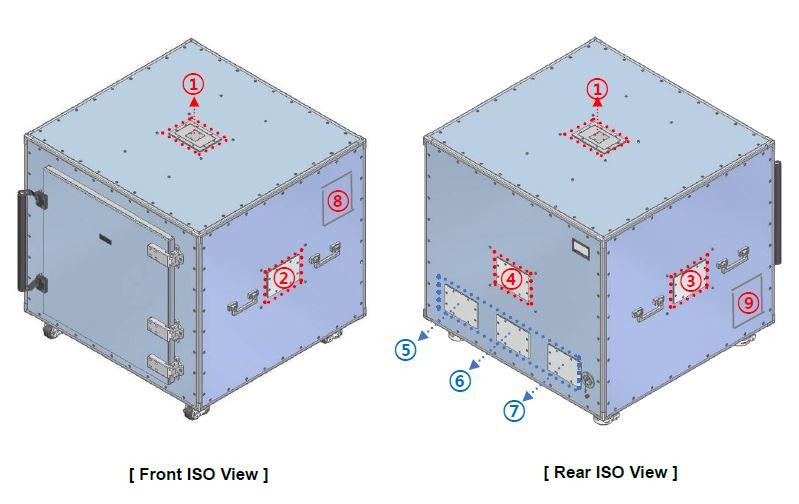

◈ TC-5570A System Configuration

① Top, Antenna Module

② Right Side, Antenna Module

③ Left Side, Antenna Module

④ Rear, Antenna Module

⑤,⑥,⑦ Rear, I/O Interface Panel

⑧,⑨Side Cooling Panel

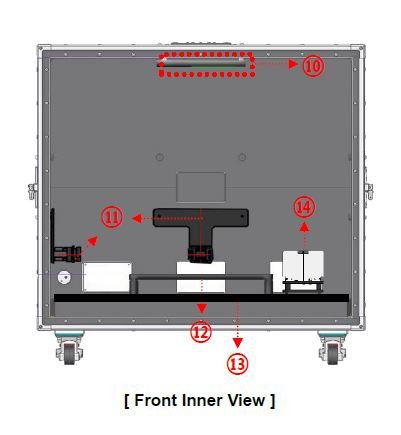

⑩ Top LED Fixture

⑪ Laser Fixture Set (For Top Antenna)

⑫ Custom Fixture

⑬ Bottom Grid Fixture (F59772B)

⑭ DPV Antenna Fixture
