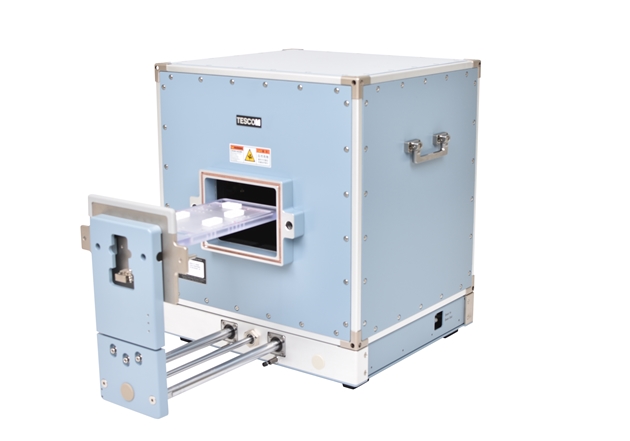

Tescom TC-5530AP mmWave Pneumatic Shield Box

◈ Mechanical Specifications

Basic RF connector: one(1) 1.85 mm(f) outside and 1.85 mm(f) inside

Basic Data connector: USB 2.0

Line voltage:

+ Input Voltage : 100 ~ 240 VAC

+ Frequency : 50/60 Hz

+ Power Consumption : Less than 2 watt (Typical)

Remote control: RS-232C, Dual Remote Switch

Air connection

+ Main connector : 6 mm OD hose, one-touch fitting

+ Input air pressure : 5 to 10 bar

Dimension

+ Inside : 425(W) x 374(D) x 424(H) mm

+ Outside : 536(W) x 540(D) x 583(H) mm

+ Door Closed : 540(D) mm

+ Door Open : 818(D) mm

+ Door Size :176(W) x 130(H) mm

+ Door Stroke(Open/Close) : 278mm

Weight: Approx. 39 kg

Packing

+ Size : 740(W) x 640(D) x 720(H) mm

+ Weight : approx. 48 kg

- The size or weight of a package may vary on how to pack a package.

◈ Typical RF Shielding

The shield effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

+ 0.1 GHz to 30 GHz : > 70 dB

+ 30 GHz to 67 GHz : > 60 dB

◈ Absorber Reflectivity

Being measured based on the metal plate (0 dB @ 18 GHz to 67 GHz), and measures the value that is reduced when the radio wave absorber is inserted.

Frequency / Reflectivity (dB)

+ 0.5 GHz to 2 GHz : 15 dB (Typ.)

+ 2 GHz to 67 GHz : 20 dB (Typ.)

Datasheet

◈ Key Features

Reliable High RF Shielding from 0.1 GHz to 67 GHz

Designed for long life

Specifically designed for millimeter wave test

Pneumatic control of lid open-close

Absorbing materials for stable measurement results

EMI filters on all data ports and power line

Remote operation by RS-232C

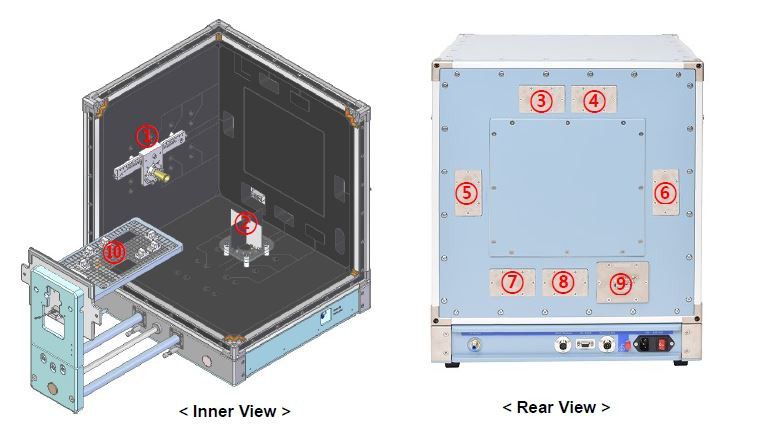

◈ TC-5530AP Configuration Options
