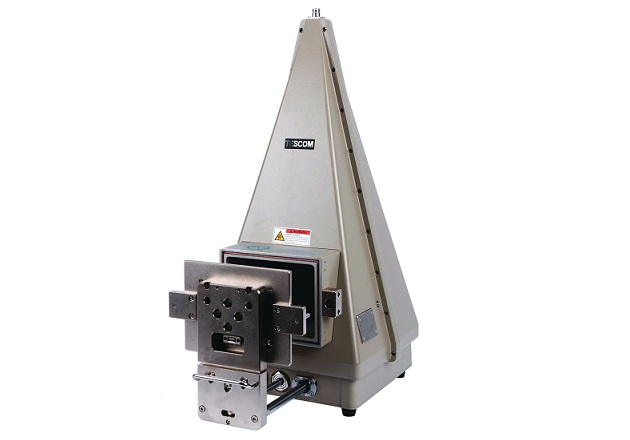

TESCOM TC-5063C Pneumatic 6 GHz TEM Cell

VSWR: < 1.7 , 100 MHz ~ 6 GHz

Path Loss: 25 dB Typical @1.8 GHz dipole

Effective Cell Height: 220 mm

Field Strength at Center of Cell: 13 dB mV/meter at 1 mV input

RF Connectors without module: 1 N(f) topside, 1 SMA(f) outside and SMA(f) inside

Remote control: RS-232C, 3 wire, DB9(p)

Line voltage: 100 - 240 VAC, 50/60 Hz, 15 watt max

Main air connector: 6 mm OD hose, one-touch push-on fitting

Input air pressure: 5 to 10 bar

Dimension:

- Inside 240(W) x 205(D) mm

- Outside 344(W) x 420(D) x 725(H) mm, door closed. 614(D) mm, door open

- Door Size: 176(W) x 130(H) mm

Weight: approx. 27 kg

Packing Size: 450(W) x 540(D) x 840(H) mm

Packing Weight: Approx. 33 kg

Typical RF Shielding

- 100 to 2000 MHz: > 80 dB

- 2000 to 3000 MHz: > 70 dB

- 3000 to 6000 MHz: > 60 dB

* The shield effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the TEM Cell.

Datasheet

Manual

- Features:

◆ Radiation and susceptibility test

◆ Broadband TEM Cell up to 6 GHz

◆ Small size, Small footprint for desktop application

◆ High effective shielding

◆ Specifically designed for all types of mobile phones

◆ Pneumatic Open / Close Construction

◆ RS-232C Open / Close control

 Applications

▷ Receiver sensitivity testing, Transmitter radiated power testing

▷ EMI and EMS tests for small 6 GHz devices
