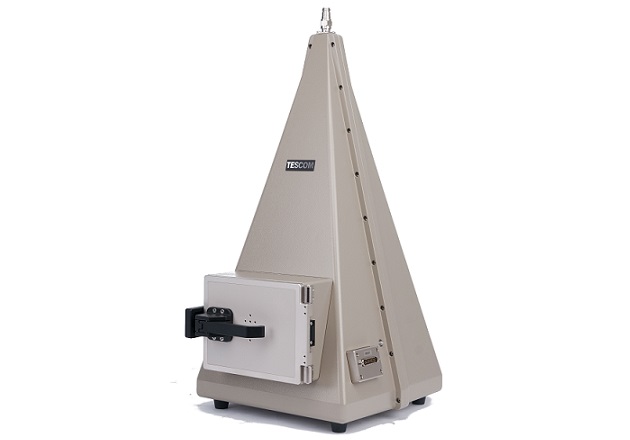

TESCOM TC-5062C 6GHz TEM Cell

VSWR: < 1.7 , 100 MHz ~ 6 GHz

Effective Cell Height: 220 mm

Field Strength at Center of Cell: 13 dB mV/meter at 1 mV input

RF Connectors without module: 1 N(f) topside, 1 SMA(f) outside and SMA(f) inside

Dimension: Inside 240(W) x 205(D) mm

- Outside 344(W) x 403(D) x 675(H) mm

- Door Size: 176(W) x 130(H) mm

Weight: approx. 21 kg

Packing Size: 470(W) x 550(D) x 830(H) mm

Packing Weight: Approx. 25 kg

Typical RF Shielding

- 100 to 2000 MHz: > 80 dB

- 2000 to 3000 MHz: > 80 dB

- 3000 to 6000 MHz: > 60 dB

* The shield effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the TEM Cell.

Datasheet

- Features:

Radiation and susceptibility test

Broadband TEM Cell up to 6 GHz

Small size, Small footprint for desktop application

High effective shielding

Specifically designed for all types of mobile phones

Able to install DUT Rotator

- Applications:

Receiver sensitivity testing, Transmitter radiated power testing

EMI and EMS tests for small Wireless devices
