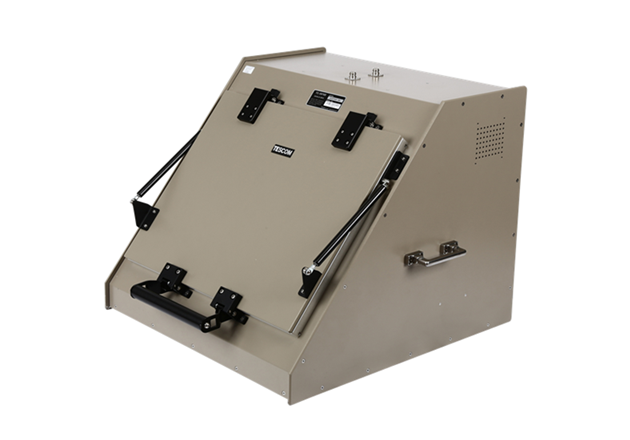

TESCOM TC-5970D Shield Box

◈ Mechanical Specifications

Basic I/O connectors

RF connectors: six(6) N(f) outside and SMA(f) inside

Dimensions

- Inside : 544(W) x 546(D) x 425(H) mm, 201(D) mm Top side.

- Outside : 662(W) x 703(D) x 537(H) mm, lid closed. 810(H) mm, lid open.

Weight : Approx. 38 kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 870(W) x 850(D) x 720(H) mm

- Weight : Approx. 54 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

◈ Absorber Reflectivity

Measured the reflected signal from the absorber with metal plate using the VNA.

Frequency / Reflectivity (dB)

- 500 to 2000 MHz : 15 dB(Typ.)

- 2000 to 6000 MHz : 20 dB(Typ.)

Datasheet

Key Features

◈ High RF Shielding

◈ Easy Opening/Closing of lid

◈ EMI filters on all Data and DC lines

◈ High performance absorber for radiation testing

◈ Customizable Data connections

◈ Door safety function when the door opens and closed

Dimensions

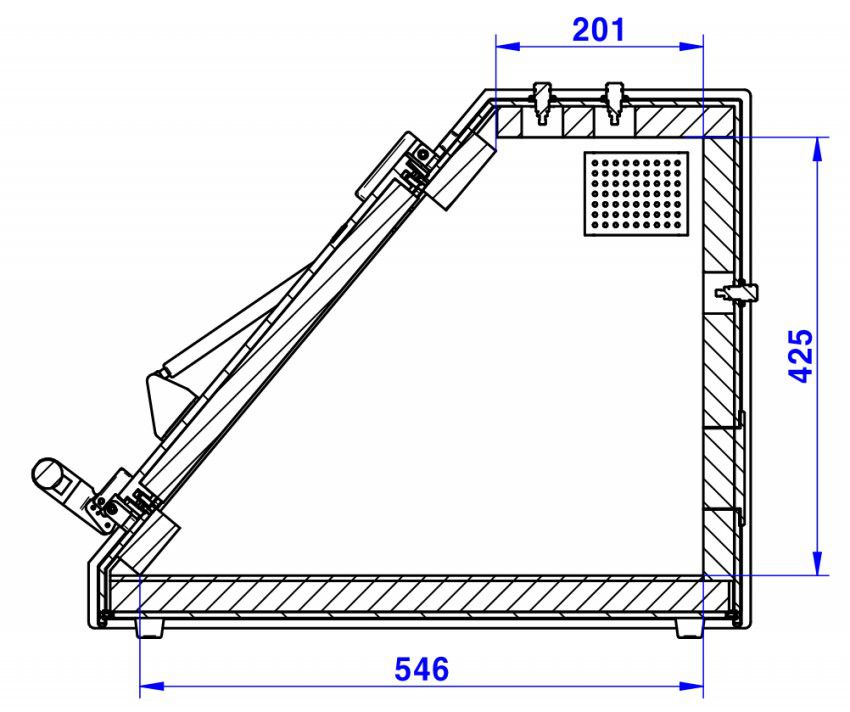

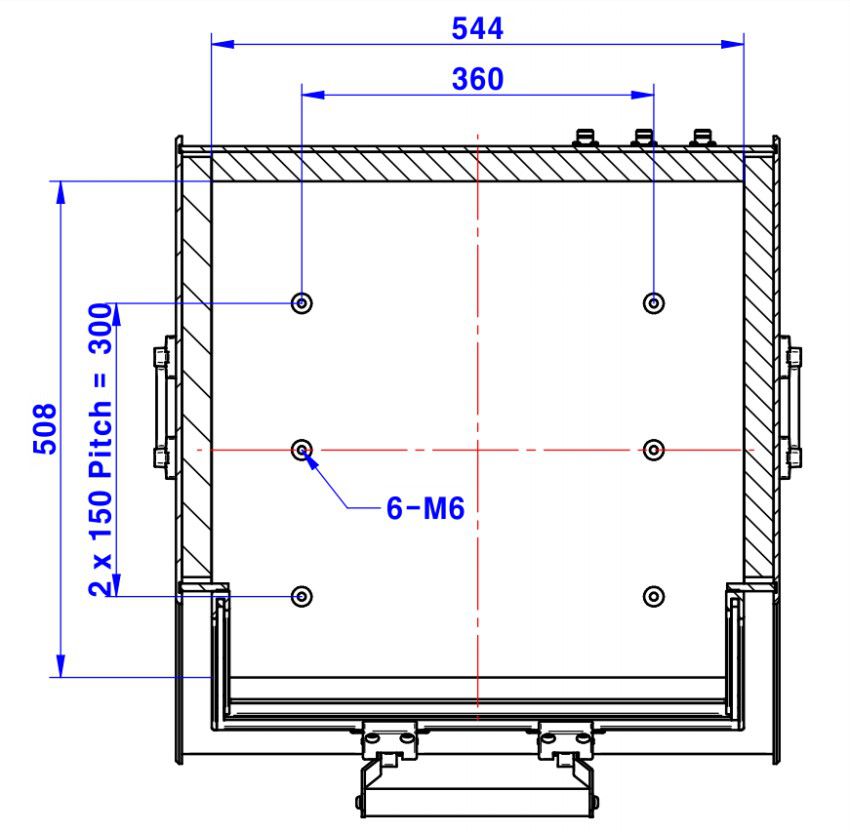

TC-5970D Inner Dimension

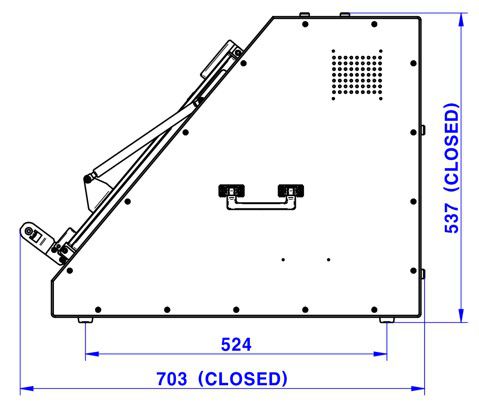

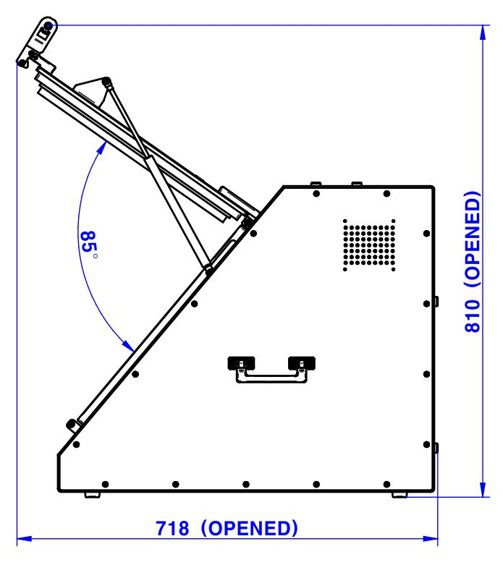

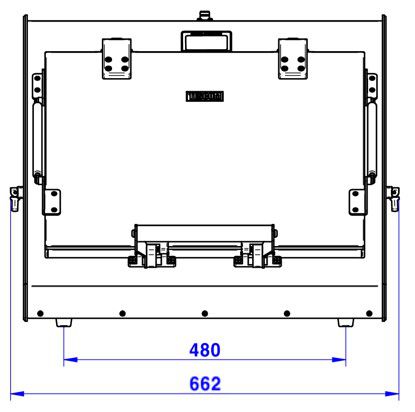

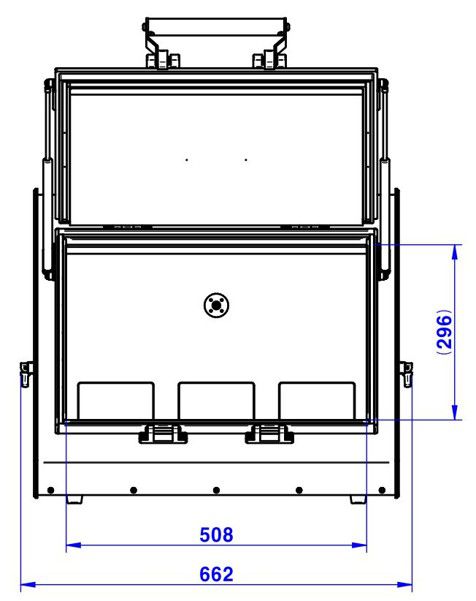

TC-5970D Outer Dimension
