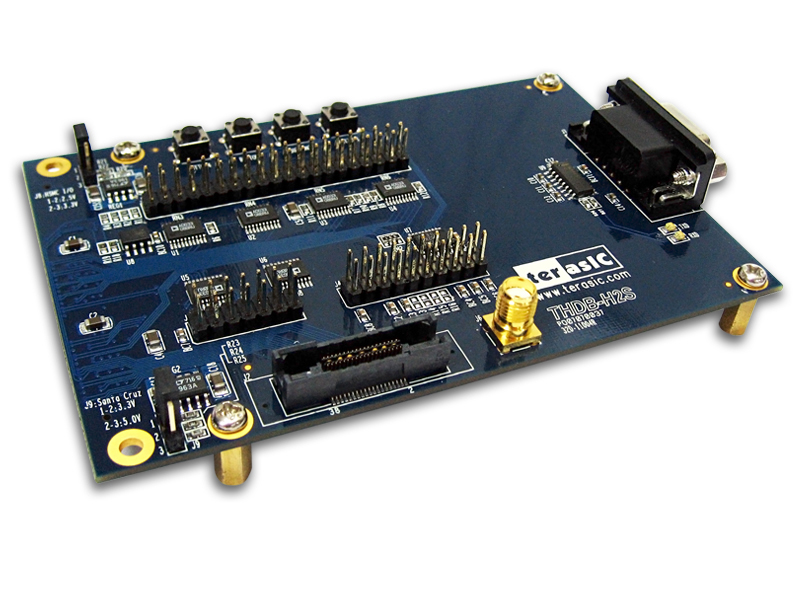

Terasic HSMC to Santa Cruz Card

HSMC and Santa Cruz interface conversion
Adjustable logic levels between HSMC and SC interface signals
One Mictor Connector for logic analyzer debug interface
One SMA Connector for external clock input
One DB9 Connector for RS232 serial I/O interface
Four Push buttons for general user-interface
Size：78.74*88.9 mm

Catalog

H2S (HSMC to Santa Cruz Card) is an adapter board for converting High Speed Mezzanine Card (HSMC) connector to Santa Cruz (SC) interface which allows users to use the SC interface boards on a board with a HSMC connector. Also, the source signals form the HSMC connector to the SC header on the H2S board pass through level shifters to adjust the logic level difference between the HSMC and SC interface board.
