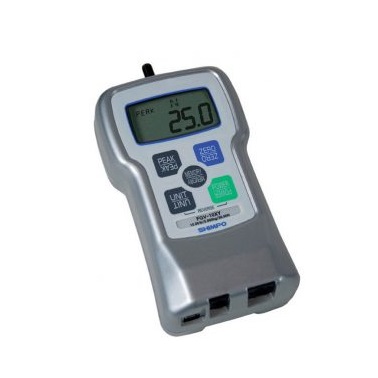

Tensitron FGV-2XY Digital Force Gauges (32 oz/ 2 lb/ 1,000 g/ 10.00 N)

Capacity:

32 oz

2 lb

1000 g

10.00 N

Resolution:

0.01 oz

0.001 lb

1 g

0.01 N

Accuracy: ±0.2% F.S.

Display Update: 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec

Sampling Rate: 1000 Hz

Overload: 200% of F.S. (200 lb.: 150% F.S.)

Power: Rechargeable Ni-MH battery or universal AC adapter/charger (100-240VAC, 50-60Hz)

Output:

Analog: ±1 V dc (through a 12 bit D/A converter)

RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control

USB: Allows communication between FGV-XY and Windows® PC Software with Toriemon USB via USB cable (included)

Auto Power Shut-Off: Yes

Battery Charge: 12 hours (when fully charged)

Recharge Time: Approximately 18 hours when fully discharged

Temperature Range: 32 - 104°F (0 - 40°C)

Dimensions: 5.8 x 3 x 1.5” (147 x 75 x 38 mm)

Product Weight: Approx. 1 lb (450 g)

Package Weight: Approx. 2.6 lb (1.12 kg)

Certification: CE, RoHS

Included Accessories: AC adapter/charger, carrying case, hook, chisel, flat head, notched head, hanger, cone head, thread Adapter, extension rod, USB cable.
