Direct access to our certified experts

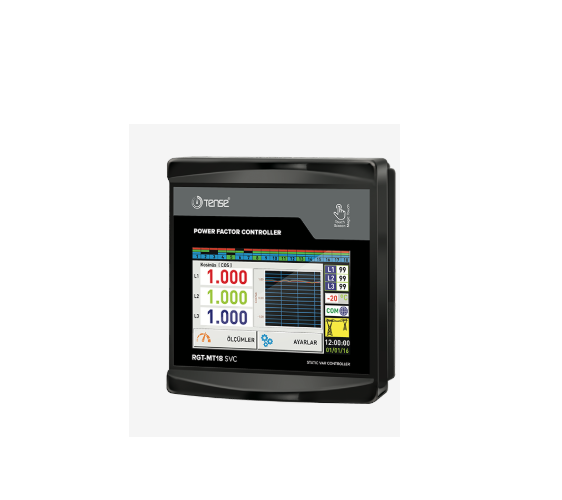

Compensating the inductive and capacitive systems.
3 phase, 3-current transformer
It shows the Active power, Reactive power, Cos ö, THD,
Three-phase, two-phase and single phase capacitor or shunt reactor can be connected
Power flow Chart (It records the reactive powers withdrawn)
Password protection.
Setting the stage value manually (capacitor and shunt reactor)
Displaying and Operating throught touchscreen
RS485 Communication
Operating Voltage(Un): 160V - 260V AC
Operating Frequency: 50 Hz.
Operating Power: <10VA
Current Range: 100mA - 5,5A (direct), 5/5A - 10000/5A (indirect)
Cosφ Range : 0.00-1.00
Time: 0.4sec- 20sec
Display: 3x20mm display and leds
Mounting: Panel front mounted
