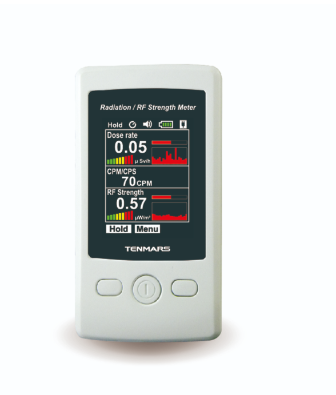

TENMARS TM-95 Radiation / RF Strength Meter (0.05 µSv/h ~ 500 µSv/h)

Dimensions:115x60x31mm(length x width x height).

Weight: Approximately 170 grams.

Radiation Dose Rate and Dose

 Sample rate:

 1 time/10 seconds or 1 time/40 seconds

 Radiation sensor: geiger-mueller tube

 Measurement Range

 0.05µSv/h~500µSv/h or 50.0µRem/h~50.0mRem/h

 Resolution

 0.01µSv/h

 0.01µRem/h

 Energy dependency:  30KeV to 1.3 MeV

 CPM: 0~9999

 CPS: 0~200

 Dose logger interval:  1~999 days

Accuracy

 0.50µSv/h~80.0µSv/h or 50.0µRem/h~8000µRem/h:  ±20%(@ Cesiu`m-137)

 >80.0µSv/h or  >8000µRem/h: N/A

RF Strength

 Sample rate: 1 times/10 seconds

 RF sensor: Single axis sensor

 Accuracy: ±2dB at 2.45GHz

 Frequency Range: 50MHz to 3.5GHz

 Range

 (0.02uW/m² to 484.6uW/m²)

 (0.01uW/cm² to 45.3uW/cm²)

 (36.1mV/m to13.90V/m)

 (0.01mA/m to 30.01mA/m)

 (-46dBm to 16dBm)

 Resolution: 0.01µW/m²,0.01µW/cm², 0.2mV/m,0.02mA/m, 2dB
