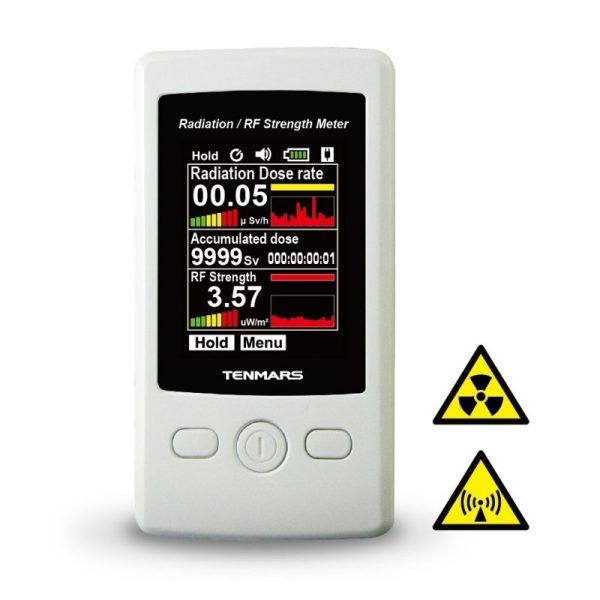

TENMARS TM-93 Radiation / RF strength Meter (0.05µSv/h ~1400µSv/h, 3.5GHz)

Sample rate: 1 time /10 seconds or 1 time /40 seconds

Radiation sensor: Geiger- mueller tube

Measurement range: 0.05µSv/h ~1400µSv/h 5.00µRem/h~140.0mRem/h

Resolution: 0.01µSv/h 0.01µRem/h

Accuracy: ±15% cesium-137

Gamma energy range: 10KeV to 1.25MeV

X-rays energy range: 3KeV to 3.0MeV

β-beta energy range: 25KeV to 3.5MeV

CPM: 0~1999

CPS: 0~212

Dose logger interval; 1 to 999 days

Sample rate: 1 time /10 seconds

RF sensor: Single axis sensor

Measurement range: 0.1~14.0 V/m

Accuracy: ±2dB to 2.45GHz

Frequency range: 50MHz to 3.5GHz

Range: 0.02µW/m² to 484.6µW/m²

0.01µW/cm² to 45.3µW/cm²

36.1mV/m to 14.000V/m

0.01mA/m to 30.01 mA/m

-46 dBm to 16 dBm

Resolution

0.01µW/m²,0.01µW/cm²

0.2 mV/m,0.02 mA/m,2dB
