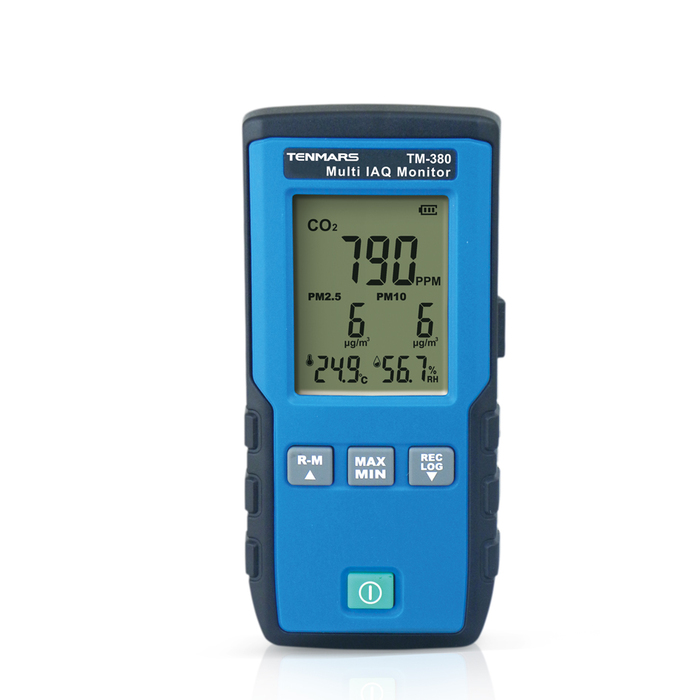

TENMARS TM-380 Multi IAQ Monitor

PM2.5

Sensor: Laser particulate matter sensor

Measuring range: 0 - 500 µg/m³

Accuracy: ±8 µg: ≤50 µg/m³

±10% of reading value: >50 µg/m³

Resolution: 1

Reaction time: <10s

PM10

Sensor: Laser particulate matter sensor

Measuring range: 0 - 500 µg/m³

Accuracy: ±10 µg: ≤50 µg/m³

±15% of reading value: >50 µg/m³

Resolution: 1

Reaction time: <10s

CO2

Sensor: Non-Dispersion Infrared (NDIR)

Measuring range: 400 - 9999 ppm

Accuracy: ± 70 ppm ±3% of readings. (400-2000 ppm)

Resolution: ±1 ppm

Reaction time: 90% during about 2 minutes

Temperature

Sensor: Bandgap temperature sensor

Measuring range: -10°C - 50°C / 14°F - 122°F

Accuracy: ±1.0°C / ±1.8°F (non-charging and 30 minutes after charging)

Resolution: 0.1°C / 0.1°F (0 - 35°C / 32 - 95°F)

1°C / 1°F (Above 100°C / °F or below -10°C / °F)

Reaction time: 90% during about 2 minutes

Humidity

Sensor: Capacitive humidity sensor

Measuring range: 1 - 99%

Accuracy: ±5% RH (10 - 90%)

±8% RH (<10%, >90%) no condensation at 25°C

Resolution: 0.1%

Reaction time: About 4s
