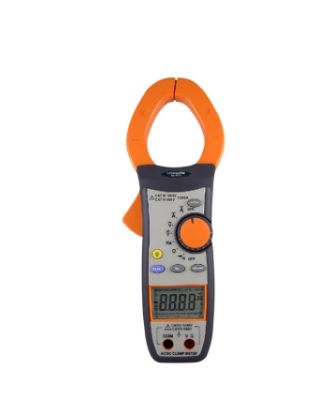

TENMARS TM-3013 Clamp Meter
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specification
- Measurement range:
+ Current AC: 0.01~1200A
+ Voltage AC: 0.1mV~750V
+ Current DC: 0.01~1200A
+ Voltage DC: 0.1mV~1000V
- Resistance: 1~4000Ω
- Diode test
- Frequency: 1Hz~400kHz
- Features:
+ LCD Display
+ Continuity Buzzer
+ Auto Range
+ APS
+ Min/Max
|
Maximum Current |
1200 Amps |
|
Display |
4000 counts |
|
Max. Conductor Size |
52mm |
|
AC Current |
0.01A to 1200A |
|
AC Voltage |
0.1mV to 750V |
|
DC Voltage |
0.1mV to 1000V |
|
DC Current (REL) |
0.01A to 1200A |
|
Resistance |
0.1Ω to 4000Ω |
|
Continuity Buzzer |
Yes |
|
Diode |
Test voltage |
|
Frequency |
1Hz to 400KHz |
|
Analog Bargraph |
Yes |
|
Backlit Display |
Yes |
|
Work Light |
Yes |
|
Autoranging |
Yes |
|
Auto Power Off |
Yes |
|
Peak Hold |
Yes |
|
Data Hold |
Yes |
|
Min/Max |
Yes |
|
Dimensions |
266mm (L) x 91mm (W) x 22mm (D) |
