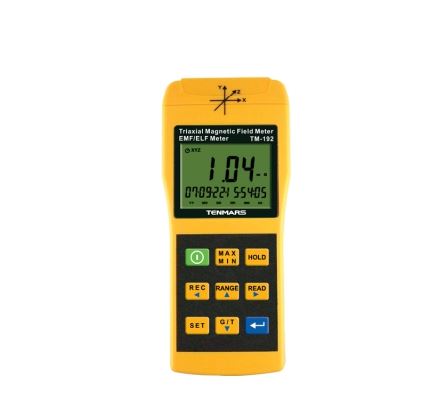

Tenmars TM-192D 3 AXIS ELECTROMAGNETIC FIELD METER (DATALOGGER)

Model: TM-192D

Warranty: 12 months

Manufacture: Tenmars

Display: 4 digits Triple LCD display,

Range: 20/200/2000 mG,2/20/200μT.

Resolution: 0.01/0.1/1 mG or 0.001/0.01/0.1 μT.

Frequency response: 30Hz to 2000Hz.

Sensor: Triple Axis (X, Y, Z).

Accuracy: 20 mG /2μT±(3.0%+30dgt) at 50Hz/60Hz. 　　　

± (2.5%+5dgt) at 50Hz/60Hz. 　　　

±(5%+5dgt) at 30Hz/2000Hz.

Over load: LCD display “OL”.

Sample rate: 2.5 times per second.

Battery: 9V NEDA 1604, IEC 6F22 or JIS 006P.

Battery life: Approximate 100 hours.

Operating temperature & humidity: 5℃to 40℃,below 80% RH.

Storage temperature & humidity: -10℃ to 60℃, below 70%.

Weight: About 230g.

Dimensions: 173(L)*80(W)*32(H) mm.

Accessories: User’s manual, 9V battery, Carrying case. 　　　　

MINI USB 4P(MALE) to USB A Type cable, CD disk (TM-192D)

9999 records data logger (TM-192D)
