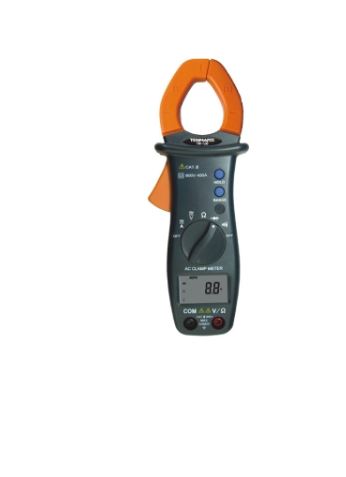

TENMARS TM-12E Clamp meter
Maximum Current : 400 Amps
Display Counts : 4000
Maximum Conductor Size : 30mm
AC Current Range : 0.1A to 400A, ±(2.0% of rdg + 10 dgts)
AC Voltage Range : 0.1V to 600V, ±(1.5% of rdg + 5 dgts)
DC Voltage Range : 0.1V to 600V, ±(1.0% of rdg + 5 dgts)
Continuity Buzzer : Yes
Data Hold : Yes
Resistance : 0.1 ohm to 400 ohms ±(1.0% + 5 dgts)
Frequency : 1Hz to 400kHz ±(0.8% + 3 dgts)
Dimensions : 195mm )L) x 64mm (W) x 39MM (D)
Weight : 280g
|
Maximum Current |
400 Amps |
|
Display Counts |
4000 |
|
Maximum Conductor Size |
30mm |
|
AC Current Range |
0.1A to 400A, ±(2.0% of rdg + 10 dgts) |
|
AC Voltage Range |
0.1V to 600V, ±(1.5% of rdg + 5 dgts) |
|
DC Voltage Range |
0.1V to 600V, ±(1.0% of rdg + 5 dgts) |
|
Continuity Buzzer |
Yes |
|
Data Hold |
Yes |
|
Resistance |
0.1 ohm to 400 ohms ±(1.0% + 5 dgts) |
|
Frequency |
1Hz to 400kHz ±(0.8% + 3 dgts) |
|
Dimensions |
195mm )L) x 64mm (W) x 39MM (D) |
|
Weight |
280g |
