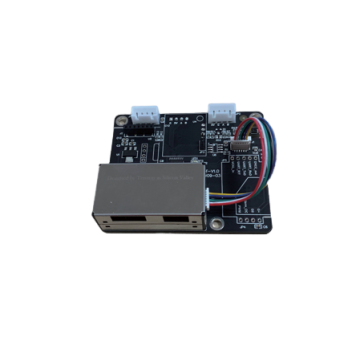

Temtop PM-1T Laser Particle Sensor Module Dust Monitor (0~999μg/m³, PM2.5, PM10)

Functions: PM2.5, PM10, Temperature and Humidity

PM2.5/10

Measuring range: 0-999μg/m³; Resolution: 1μg/m³

Measurement accuracy: ±10ug/m³(0-100μg/m³), ±10%(100-500μg/m³), ±15% (＞500μg/m³)

Temperature

Measuring range: -40~125°C; Resolution: 0.01°C

Measurement accuracy: ±0.5°C(<0°C or 90~125°C), ±0.3°C(0~90°C)

Humidity

Measuring range: 0-100%RH; Resolution: 0.01%RH

Measurement accuracy: ±2.5%RH(0~90%RH), ±3.5%RH(90~100%RH)

VOC: /

Communication method: TTL

Measuring principle: Light Scattering

Operating voltage: 5V, (DC 5.0)

Operating current: 110(average current)

Preheating time:  /

Weights: 55g

Product Size: 71mm x 62mm x 16mm
