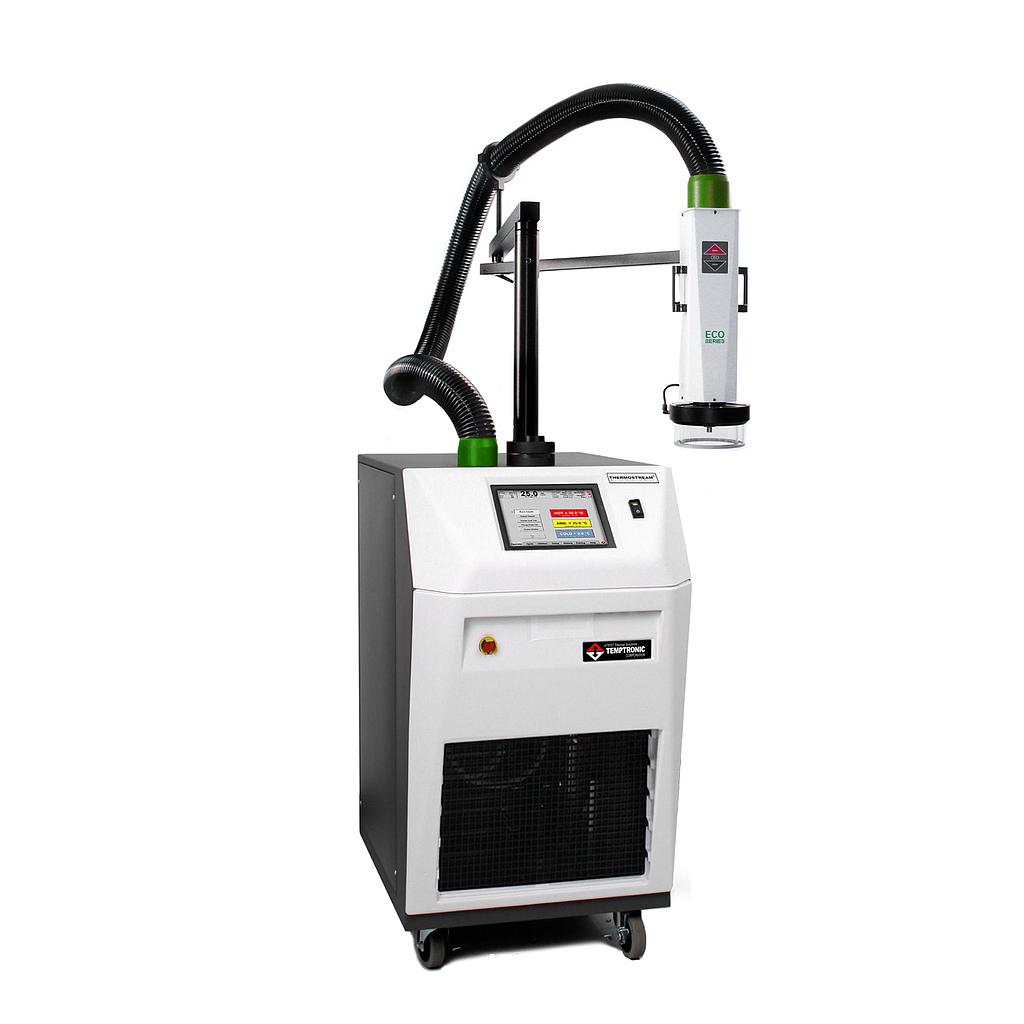

Temptronic ECO-710-M Thermostream® with WhisperStream quiet technology (-80~+225°C, 4~18scfm)

Description

The ECO Series is designed for any environment where audible noise and heat dissipation are concerns. It operates on an energy-efficient, 20 amp, 50/60Hz circuit with proprietary technology delivering quiet, smooth sounding operation. Additionally, the system does not require annual leak testing because its gas charge is below the CO2 equivalent limit for greenhouse gas emissions as specified by Regulation EU 517/2014.

These fast, precise temperature forcing systems provide effective testing and conditioning of electronic components, boards and modules. .

Performance

Temperature Range: -80 to +225°C (50/60Hz) No LN2 or LCO2 Required

Transition Rates

Heating: -55 to +125°C, <10s

Cooling: +125 to -55°C, <10s

System Airflow Output: 4 to 18scfm (1.9 to 8.5 l/s) Continuous

Temperature control

Temperature Display & Resolution: +/- 0.1°C

Temperature Accuracy: 1.0°C (when calibrated against NIST standard)

DUT Temperature Control: Proprietary control algorithm enables DUT temperature to be directly controlled

DUT Sensor Ports: Internal diode, thermocouples (T & K),RTD (100 Ohm platinum)

Power: 200 - 250 VAC (230V nominal), 50/60Hz 30 amp, 1phase

Compressed air

Clean, Dry Air (CDA): Filtered to 5 micron particulate contamination.

Oil Content: <0.1 ppm, by weight, filtered to 0.01 micron oil contaminant.

Dewpoint: <10°C @ 6.2 BAR (90PSI)

Air Supply Pressure: 6.2 to 7.6 BAR (90 to 110 PSIG)

Total Air Flow Rate Required: 7.1 to 14.2 l/s (15-30 scfm), 11.8 l/s (25 scfm) nomina

Air Supply Temperature: +20° to +25°C; +22°C nominal

Operating environment

Operating Temperature: +20°C ~ +28°C; +23°C nominal

Humidity: 0 ~ 60%; 45% nominal

Noise Level: <56dBA
