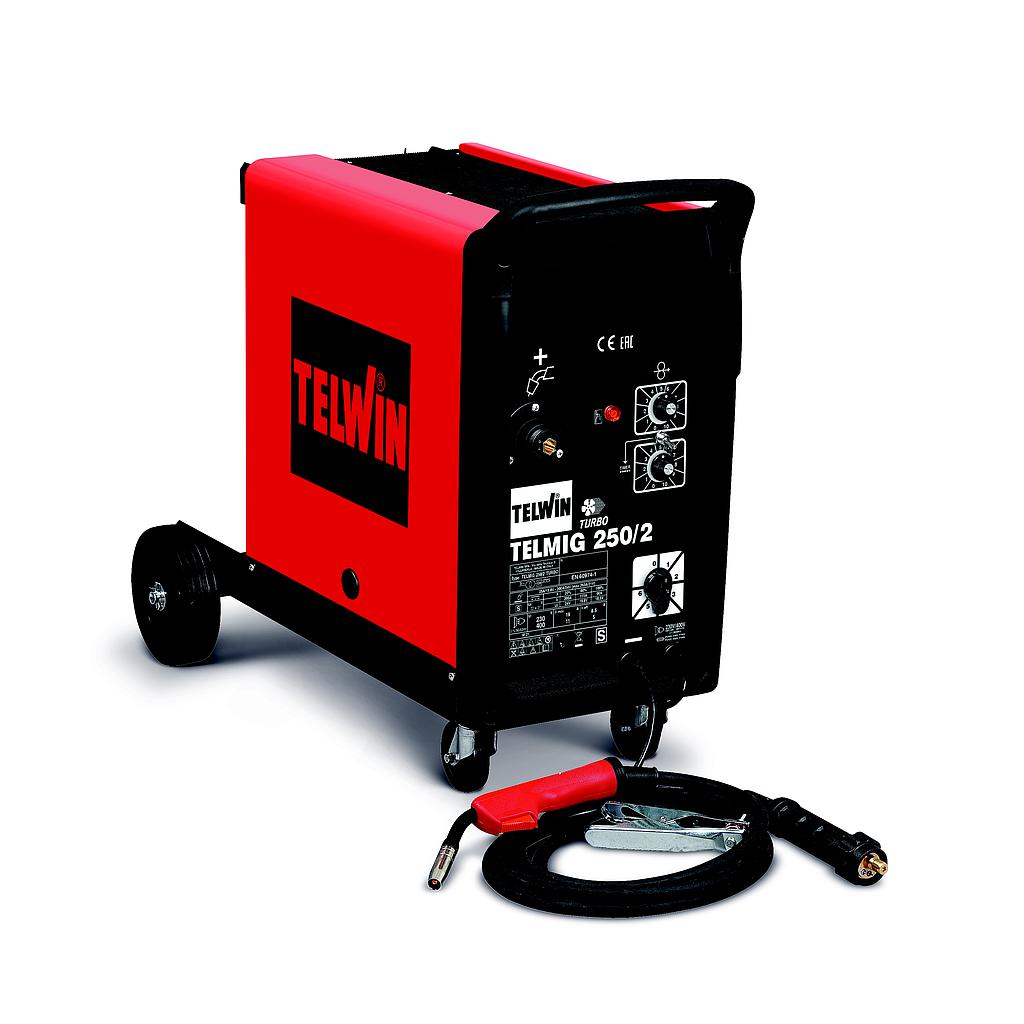

Telwin TELMIG 250/2 TURBO MIG-MAG 3PH (0,8- 1 mm,0,6 -1 mm)

MAX NO LOAD VOLTAGE: 33 V

INOX WELDING WIRE DIAMETER: 0,8 - 1mm

THREE PHASE MAINS VOLTAGE: 230 /400 V

MAX ABSORBED POWER: 7 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 3 kW

PROTECTION DEGREE: IP21

CURRENT RANGE: 35 - 260 A

POWER FACTOR: (cosphi) 0,9

DIMENSIONS: 80 x 45 x 65,5 cm

MAX CURRENT DC (EN 60974-1): 200 @20 % A

ADJUSTMENT POSITIONS: 6

WEIGHT: 50 kg

DC CURRENT: 115 A

STEEL WELDING WIRE DIAMETER: 0,6 -1 mm

Included Accessories

CABLE 25 MMQ 2 M - 123466

TOLEDO 250 WORK CLAMP 250A - 712030

SPACER - 322499

GAS REGULATOR REFILLABLE BOTTLE - 722341

ARGON GAS BOTTLE IT ADAPTOR - 432036

MT15 MIG TORCH 3M (RED) - 742180
