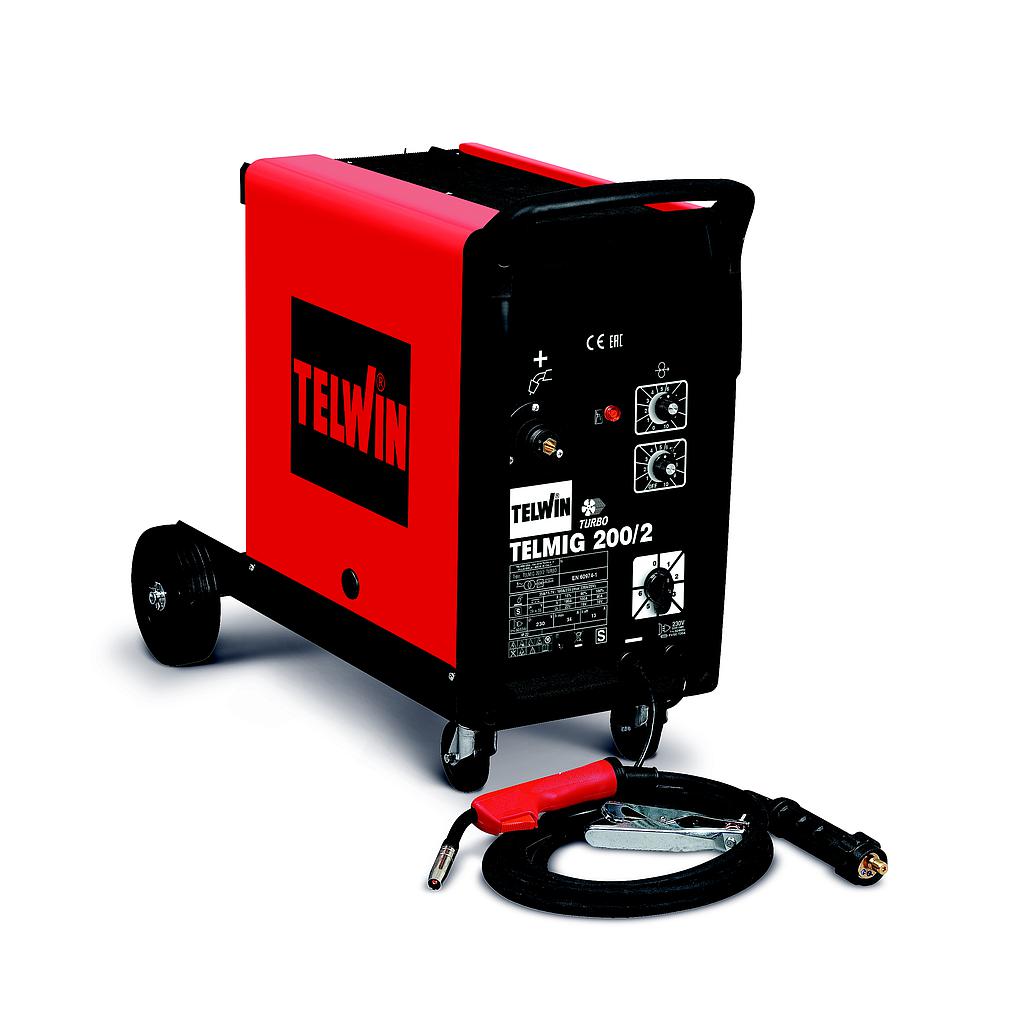

Telwin TELMIG 200/2 TURBO MIG-MAG 1PH (0,6 -1 mm,0,8- 1 mm)

MAX NO LOAD VOLTAGE: 33 V

STEEL WELDING WIRE DIAMETER: 0,6 -1 mm

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED POWER: 7 kW

INOX WELDING WIRE DIAMETER: 0,8mm

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 3 kW

ALUMINIUM WELDING WIRE DIAM.: 0,8- 1 mm

CURRENT RANGE: 35 - 220 A

MAINS FUSE :20 A

PROTECTION DEGREE: IP22

MAX CURRENT DC (EN 60974-1): 180 @15 % A

POWER FACTOR (cosphi): 0,9

DIMENSIONS: 80 x 45 x 65,5 cm

DC CURRENT : 100 A

ADJUSTMENT POSITIONS: 6

WEIGHT: 45 kg

Included Accessories

CABLE 25 MMQ 1.8M - 124590

TOLEDO 250 WORK CLAMP 250A - 712030

SPACER - 322499

GAS REGULATOR REFILLABLE BOTTLE - 722341

ARGON GAS BOTTLE IT ADAPTOR - 432036

MT15 MIG TORCH 3M (RED) - 742180
