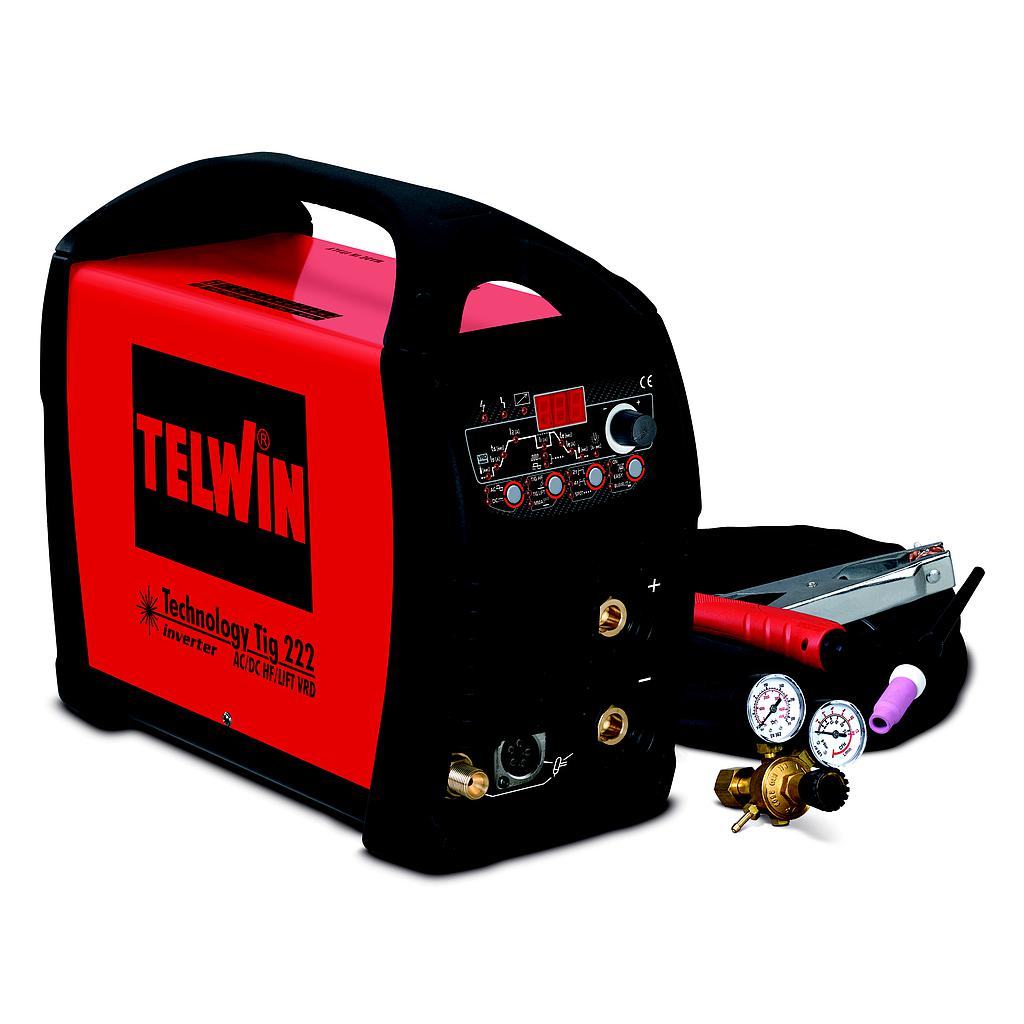

Telwin TECHNOLOGY TIG 222 AC/DC-HF/LIFT TIG 1PH (1,6 - 4mm)

MAX NO LOAD VOLTAGE: 95 V

EFFICIENCY: 81 V

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED CURRENT: 33 A

POWER FACTOR (cosphi): 0,7

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED CURRENT AT: 60% - MAX 21A

D. USABLE ELECTRODES IN DC: 1,6 - 4mm

CURRENT RANGE: 5 - 200 A

MAX ABSORBED POWER: 5,5 kW

PROTECTION DEGREE: IP23

MAX CURRENT DC (EN 60974-1): 200 @24 % A

ABSORBED POWER AT: 60% 3,3 kW

DIMENSIONS: 43 x 17 x 34 cm

DC CURRENT: 115 A

MAINS FUSE: 20 A

WEIGHT: 16,35 kg

Included Accessories

ARGON GAS BOTTLE IT ADAPTOR - 432036

GAS REGULATOR 2 MANOMETERS 12 L\min - 722119

TOLEDO 300 WORK CLAMP - 712231

ST26 TIG TORCH AX50 4M - 742614

CABLE 25 MMQ 3 M ATLAS 50MMQ - 713504
