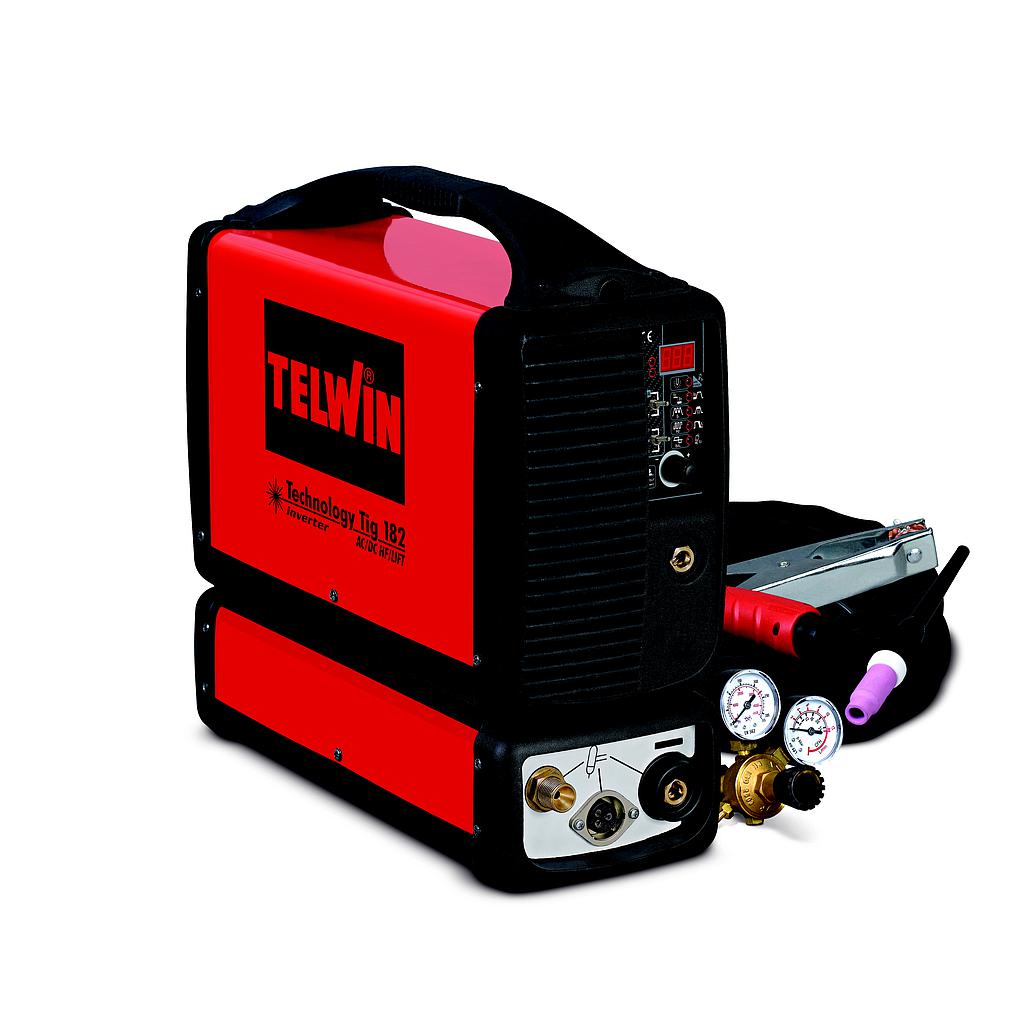

Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT TIG 1PH (1,6 - 3,2mm)

MAX NO LOAD VOLTAGE: 94 V

EFFICIENCY: 75 V

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED CURRENT: 29 A

POWER FACTOR (cosphi): 0,7

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED CURRENT AT 60% - MAX 18A

D. USABLE ELECTRODES IN DC: 1,6 - 3,2mm

CURRENT RANGE: 5 - 160 A

MAX ABSORBED POWER: 4,3 kW

PROTECTION DEGREE: IP23

MAX CURRENT DC (EN 60974-1): 160 @ 20 % A

ABSORBED POWER AT: 60% 2,5 kW

DIMENSIONS: 43 x 17 x 34 cm

DC CURRENT: 85 A

MAINS FUSE: 16 A

WEIGHT: 13,7 kg

Included Accessories

CABLE 16 MMQ 3 M - 123443

CABLE 16 MMQ 3 M ATLAS 25MQ - 713503

ARGON GAS BOTTLE IT ADAPTOR - 432036

GAS REGULATOR 2 MANOMETERS 12 L\min - 722119

ATLAS PLUG 25MMQ - 712039

ST17 3P TIG TORCH AX25 4M - 742423

TOLEDO 300 WORK CLAMP - 712231
