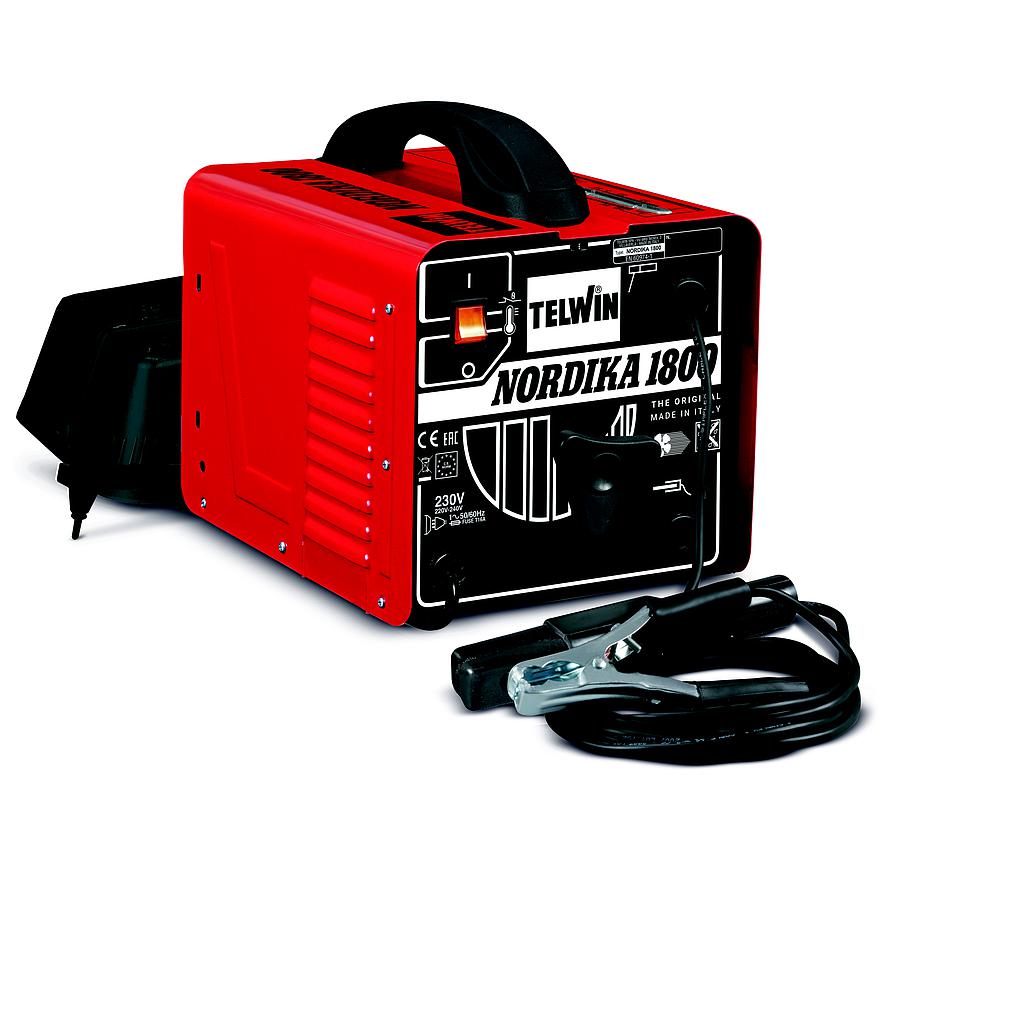

Telwin NORDIKA 1800 230V MMA ELETTROMECC. 1PH (1,6 - 3,2mm)

POWER: 2,5 kW

WEIGHT: 13,9 kg

SINGLE PHASE MAINS VOLTAGE: 230 V

MAINS FUSE: 16 A

MAINS FREQUENCY: 50 / 60 Hz

D. USABLE ELECTRODES IN AC: 1,6 - 3,2mm

PIECES/PALLET: 30 pz/pallet

CURRENT RANGE: 40 - 140 A

PROTECTION DEGREE: IP21

PIECES/PALLET - B: 40 pz/pallet-B

MAX NO LOAD VOLTAGE: 48 V

DIMENSIONS: 34,5 x 21,5 x 27,5 cm

Included Accessories

CABLE 16 MMQ 1,8 M - 124502

MASK - 712250

COLORADO 150B WORK CLAMP 150A - 712001

FILTER 51X108 - 712257

SLAG REMOVER - 712139

DALLAS 300 ELECTRODE HOLDER 300A - 712260
