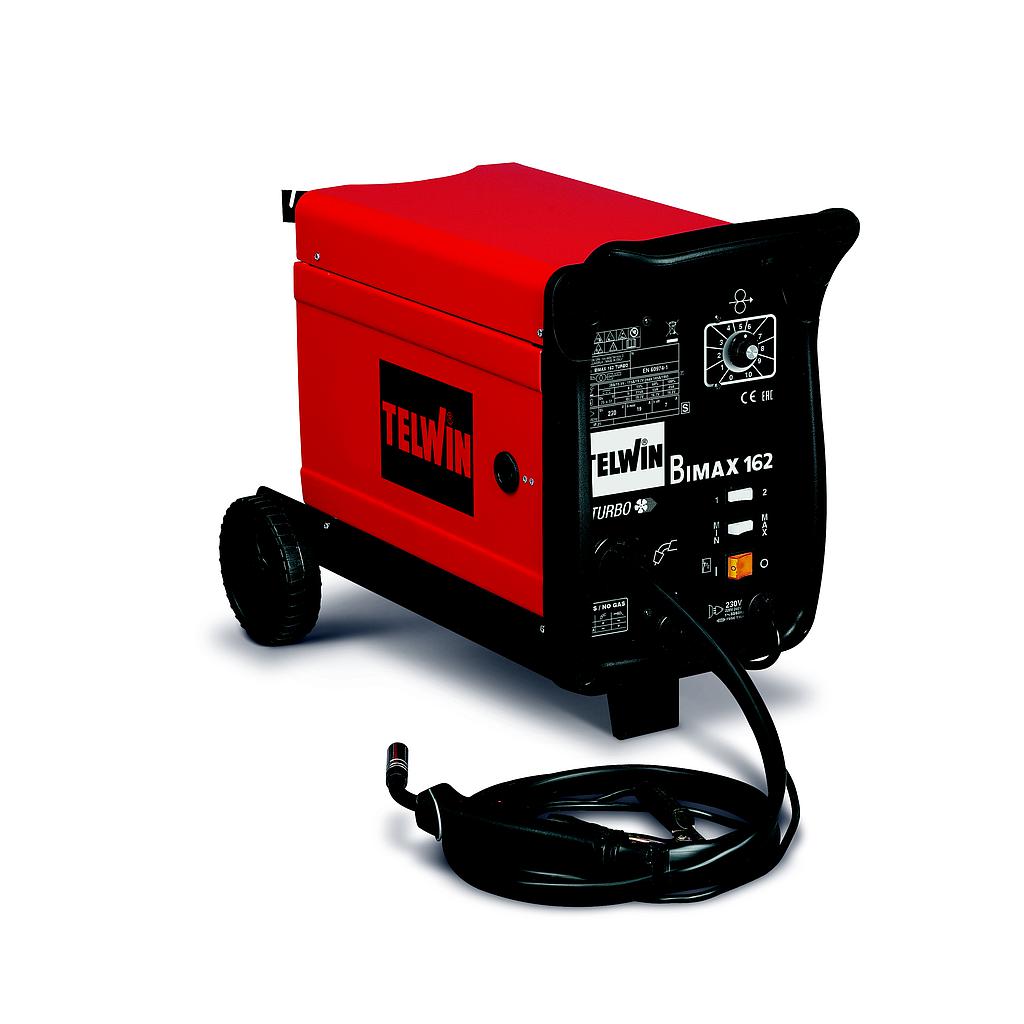

Telwin BIMAX 162 TURBO MIG-MAG 1PH (0,6~ 1,2 mm)

MAX NO LOAD VOLTAGE: 31 V

SINGLE PHASE MAINS VOLTAGE: 230 V

MAX ABSORBED POWER: 3,7 kW

MAINS FREQUENCY: 50 / 60 Hz

ABSORBED POWER AT 60% 1,4 kW

CURRENT RANGE: 30 - 145 A

MAINS FUSE: 16 A

MAX CURRENT DC (EN 60974-1): 115 @15 % A

POWER FACTOR (cosphi) 0,9

PROTECTION DEGREE: IP21

DC CURRENT: 55 A

ADJUSTMENT POSITIONS: 4

STEEL WELDING WIRE DIAMETER: 0,6 - 0,8 mm

INOX WELDING WIRE DIAMETER: 0,8mm

ALUMINIUM WELDING WIRE DIAM: 0,8 - 1 mm

FLUX CORED WELDING WIRE DIAM: 0,8- 1,2 mm

DIMENSIONS: 64 x 35 x 47 cm

Included Accessories

CABLE 16 MMQ 1,8 M - 124502 SLAG REMOVER - 712139

COLORADO 150B WORK CLAMP 150A - 712001

TW160 MIG TORCH 2M - 742402
