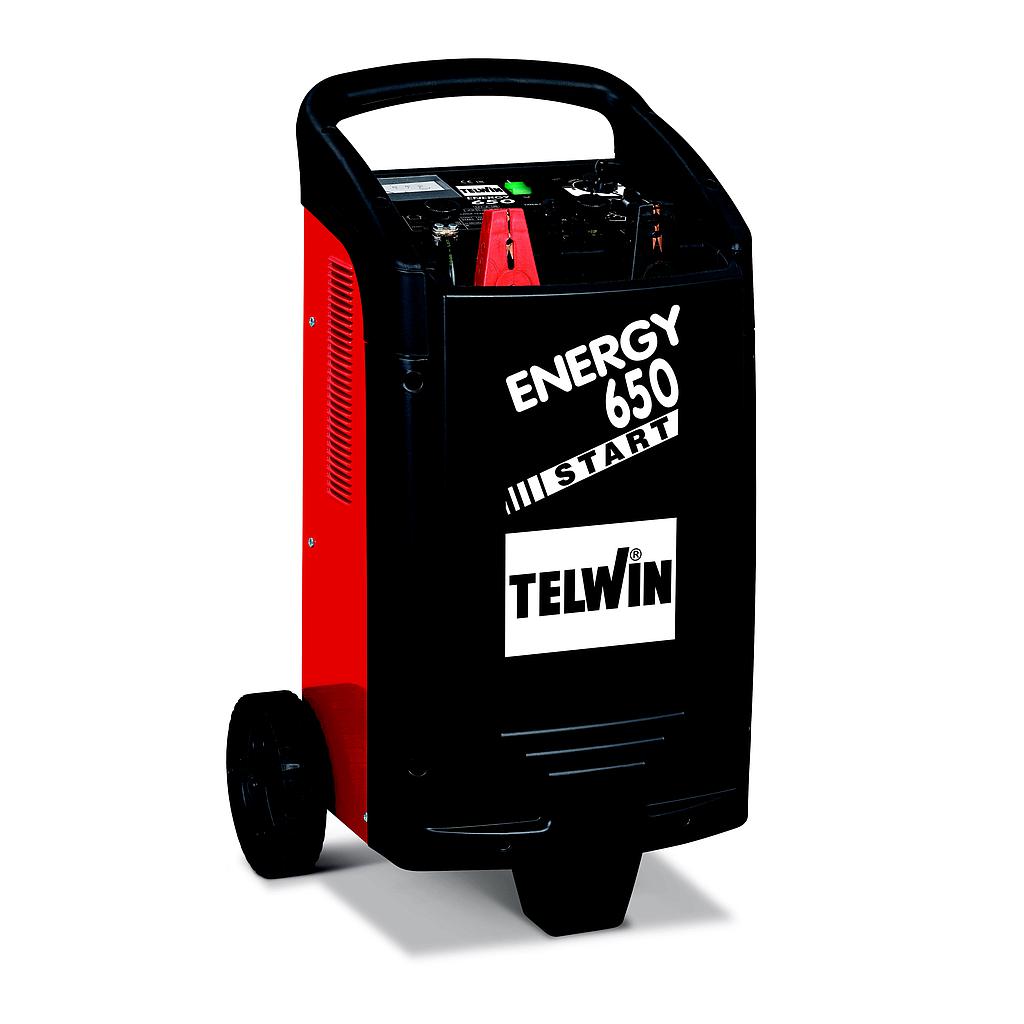

Telwin ENERGY 650 START BATTERY CHARGER / STARTER (2,5 KW)

EFFECTIVE CHARGING CURRENT: 100 A

ADJUSTMENT POSITIONS: 5

THREE PHASE MAINS VOLTAGE: 230 / 400 V

RATED CHARGE CURR.: EN60335-2-29 80 A

DIMENSIONS: 36,5 x 46 x 75,5 cm

MAINS FREQUENCY: 50 / 60 Hz

START CURRENT: 1V/C EN60335-2-29 640 A

WEIGHT: 38 kg

CHARGE POWER: 2,5 KW

MAX STARTING CURRENT: 1000 A

START POWER: 20 KW

MIN. RATED REFERENCE CAPACITY: 20 Ah

PIECES/PALLET: 9 pz/pallet

CHARGING VOLTAGE: 12 / 24 V

MAX RATED REFERENCE CAPACITY: 1600 / 800 A

PIECES/PALLET - B: 6 pz/pallet-B

Included Accessories

REMOTE CONTROL 6 M - 123993
