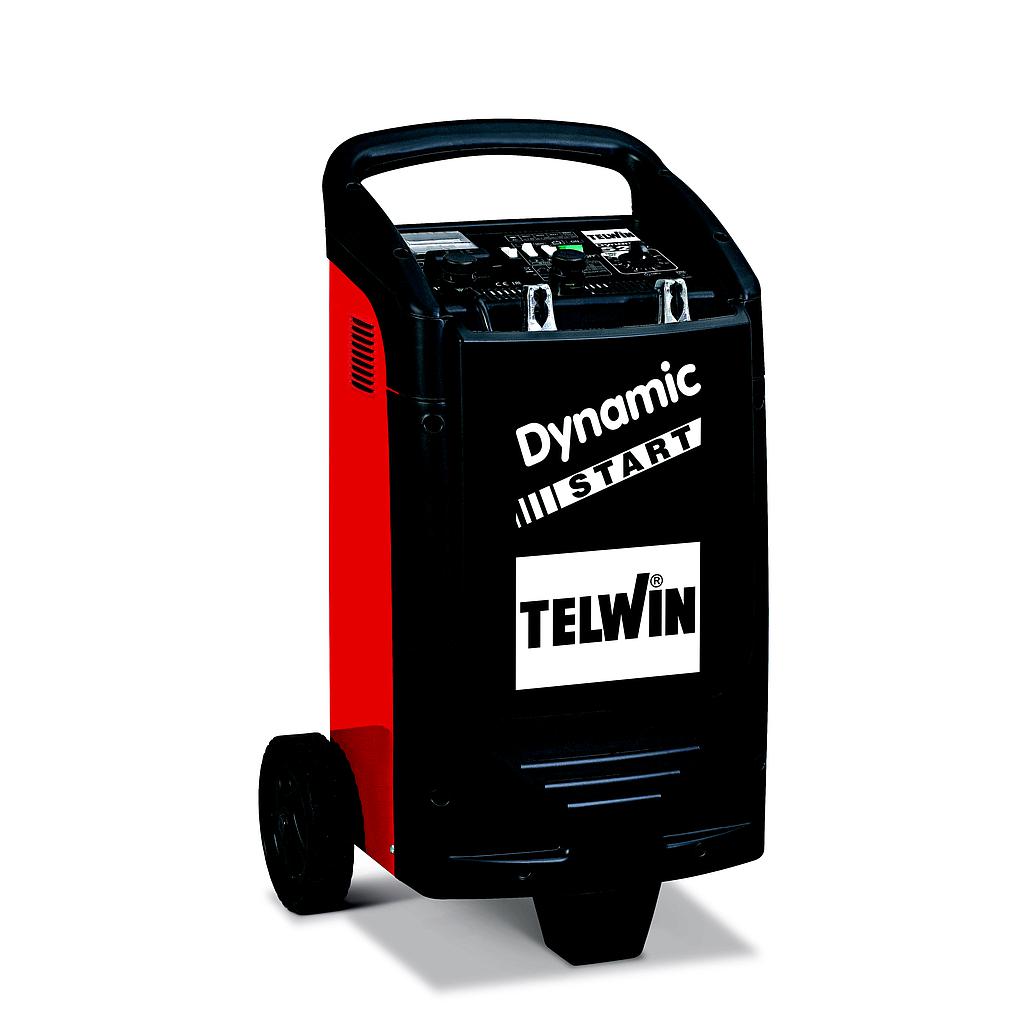

Telwin DYNAMIC 520 START BATTERY CHARGER / STARTER (1,6 KW)

EFFECTIVE CHARGING CURRENT: 75 A

ADJUSTMENT POSITIONS: 4

SINGLE PHASE MAINS VOLTAGE: 230 V

RATED CHARGE CURR.: EN60335-2-29 50 A

DIMENSIONS: 36,5 x 46 x 75,5 cm

MAINS FREQUENCY: 50 / 60 Hz

START CURRENT: 1V/C EN60335-2-29 300 A

WEIGHT: 20 kg

CHARGE POWER: 1,6 KW

MAX STARTING CURRENT: 400 A

START POWER: 10 KW

MIN. RATED REFERENCE CAPACITY: 20 Ah

PIECES/PALLET: 9 pz/pallet

CHARGING VOLTAGE: 12 / 24 V

MAX RATED REFERENCE CAPACITY: 1000 A

PIECES/PALLET - B: 6 pz/pallet-B
