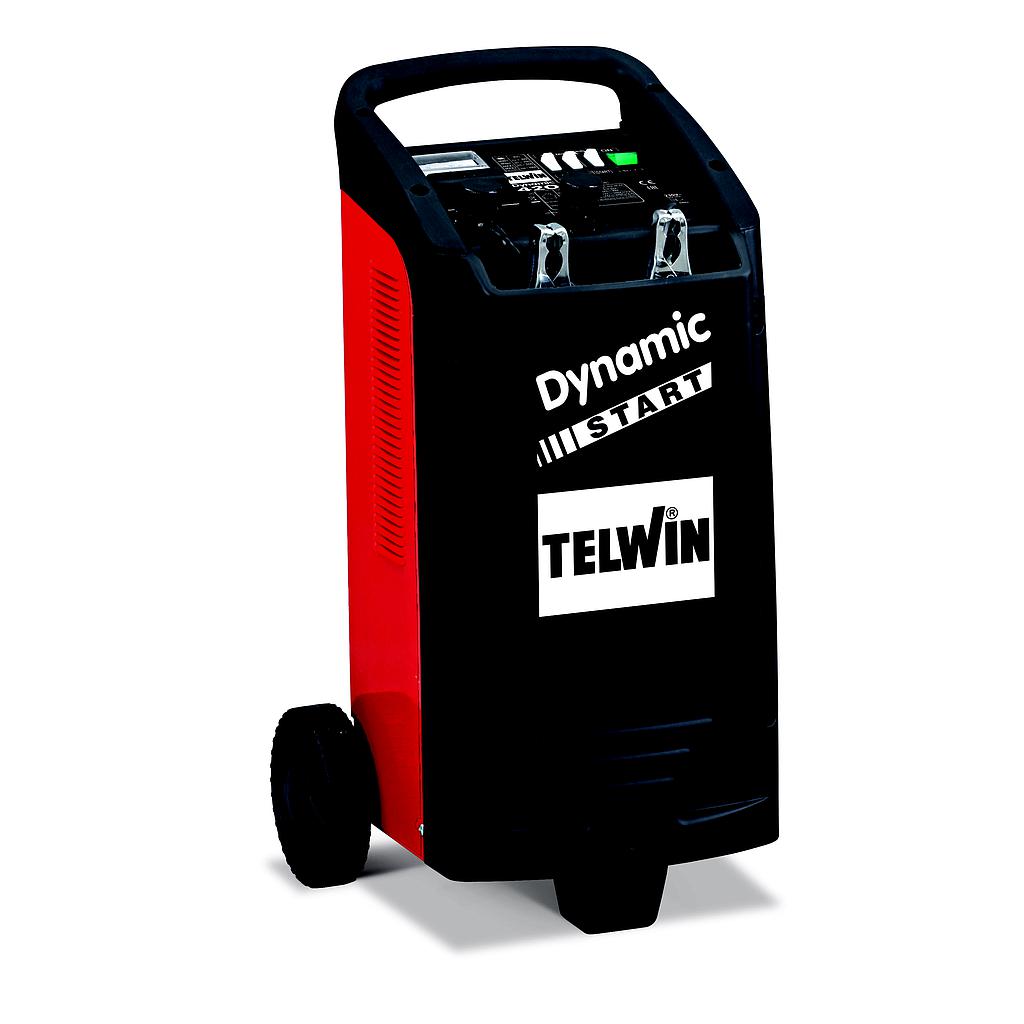

Telwin DYNAMIC 420 START BATTERY CHARGER / STARTER (1,6 KW)

EFFECTIVE CHARGING CURRENT: 75 A

ADJUSTMENT POSITIONS: 4

SINGLE PHASE MAINS VOLTAGE: 230 V

RATED CHARGE CURR.: EN60335-2-29 50 A

DIMENSIONS: 30,5 x 36 x 63 cm

MAINS FREQUENCY: 50 / 60 Hz

START CURRENT: 1V/C EN60335-2-29 300 A

WEIGHT: 16,4 kg

CHARGE POWER: 1,6 KW

MAX STARTING CURRENT: 400 A

START POWER: 10 KW

MIN. RATED REFERENCE CAPACITY: 20 Ah

CHARGING VOLTAGE: 12 / 24 V

MAX RATED REFERENCE CAPACITY: 1000 A

Included Accessories

COLORADO 150B WORK CLAMP 150A - 712001

COLORADO 150R POSITIVE CLAMP 150A - 712002
